31-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

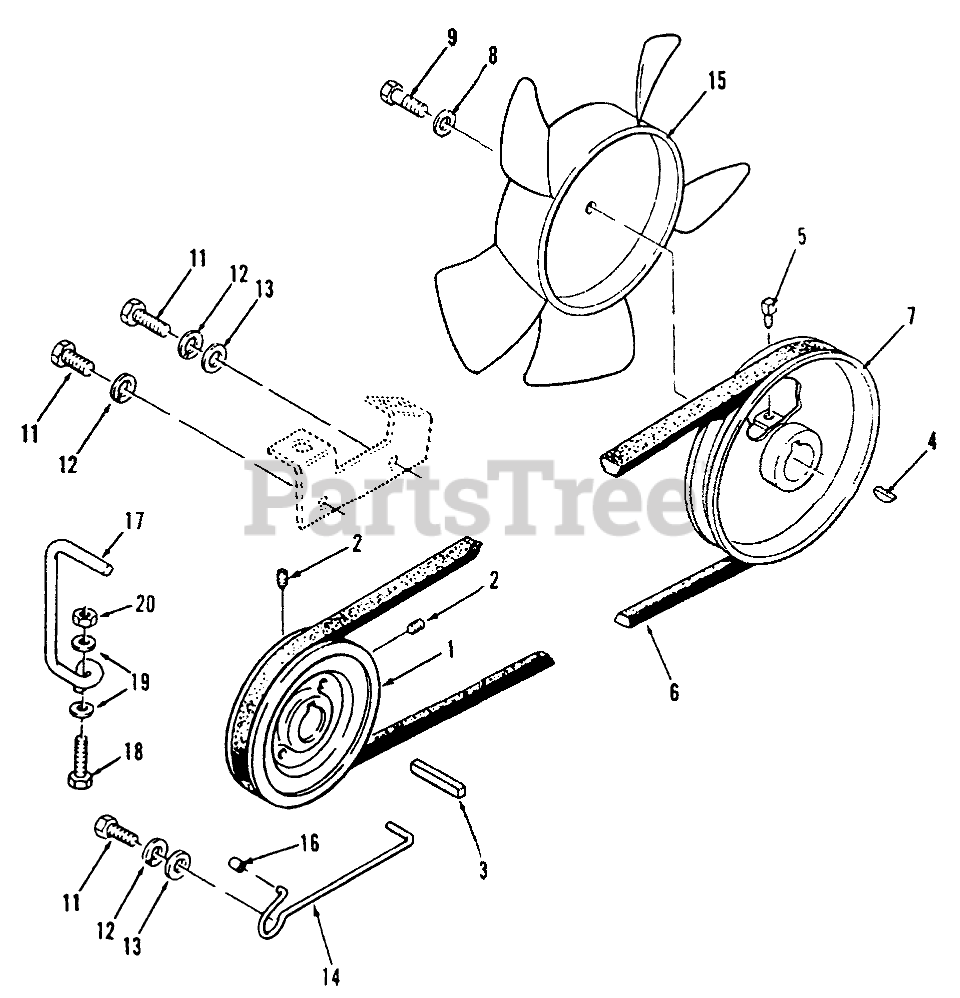

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 7466

PULLEY

$184.99

$

Usually ships in 3-6 days

0

Toro 7443

PULLEY

Note: Not illustrated

$

$

Not available

2

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

4

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$6.49

$

In Stock, only 1 left!

0

5

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

6

Toro 78-7100

Belt-Drive
(Superseded to 7473)

$63.99

$

In Stock, only 1 left!

0

Toro 108501

V-BELT TRANS DRIVE

Note: Not illustrated

$67.99

$

In Stock, only 4 left!

0

Toro 114895

BELT-V

Note: Not illustrated

$69.99

$

In Stock, only 1 left!

0

Toro 107939

Belt-Drive
(Superseded to 93-9809)

Note: Not illustrated

$69.99

$

In Stock, only 1 left!

0

7

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

Toro 108316

PULLEY

Note: Not illustrated

$

$

Not available

8

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

Toro 323-6

SCREW-HH

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

12

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

Toro 3253-21

WASHER-LOCK

Note: Not illustrated

$0.99

$

In Stock, Qty 10

0

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

14

Toro 111242

GUIDE BELT

$

$

Not available

15

Toro 108393

NYLON FAN-L-CW

$41.99

$

In Stock, only 1 left!

0

16

Toro 112841

CAP

$

$

Not available

17

Toro 120320

GUIDE-BELT BOTTOM

$

$

Not available

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0
