31-12K802 (312-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) THROTTLE CHOKE AND FUEL CONTROLS Parts Diagram

Garden Tractor

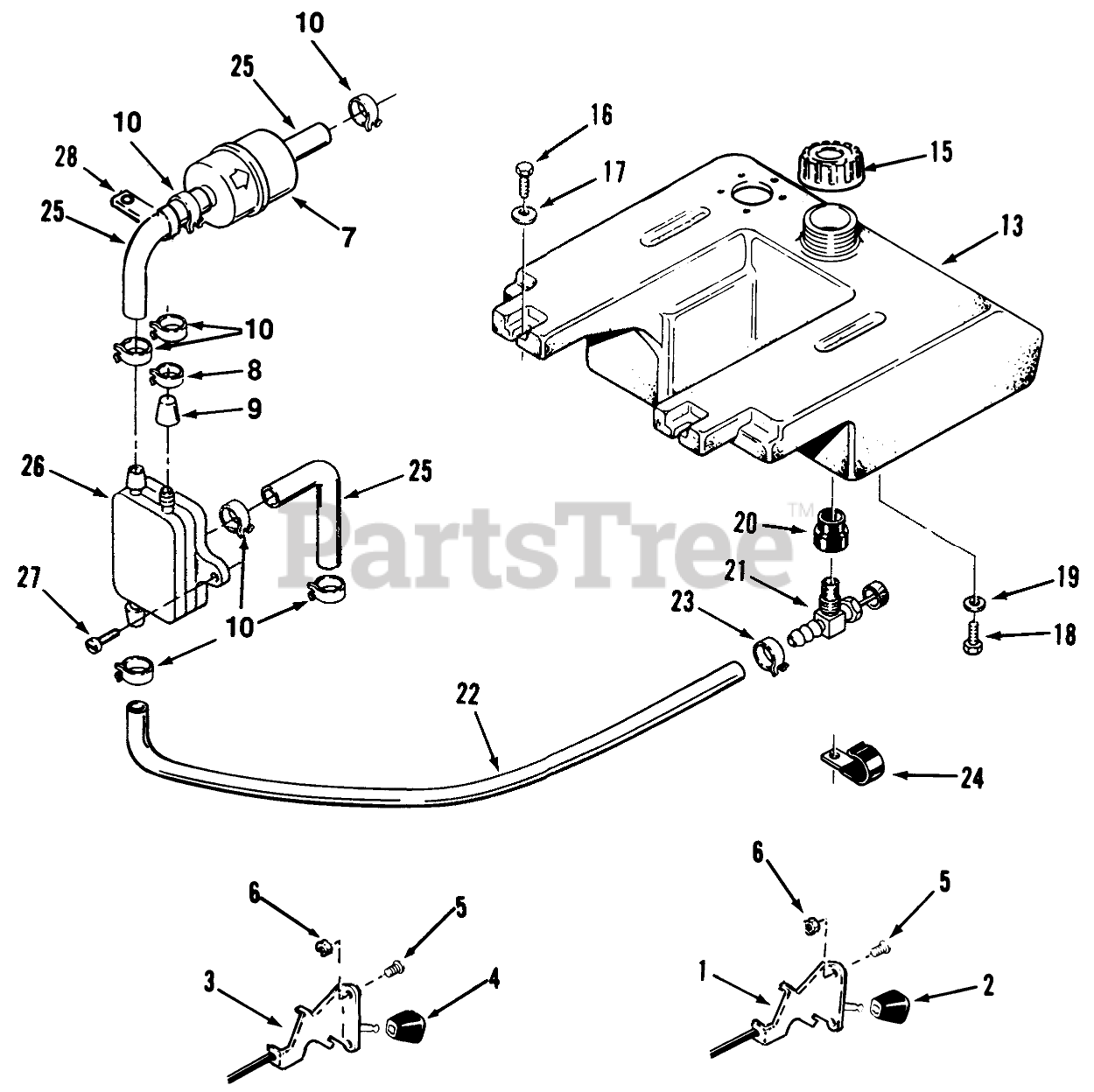

THROTTLE CHOKE AND FUEL CONTROLS Parts Diagram

  • Title
1

Toro 115392

CONTROL-THROTTLE

$112.99

$

In Stock, only 3 left!

0

2

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

3

Toro 114951

CONTROL-CHOKE

$118.99

$

Usually ships in 3-6 days

0

4

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0

5

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

6

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

7

Toro NN10466

Filter-Fuel
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 6

0

8

Toro 57-9550

CLAMP

$

$

Not available

9

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

10

Toro NN10789

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

13

Toro 106234

Fuel Tank (Includes items 20 & 21)

$456.99

$

Usually ships in 3-6 days

0

14

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

16

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

17

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

19

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$36.99

$

In Stock, Qty 9

0

22

Toro 2739

Line-Fuel 53"
(Superseded to 110521)

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

24

Toro 950154

Clamp

$

$

Not available

Toro 105490

CLAMP

$

$

Not available

25

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

26

Toro 57-9080

PUMP-FUEL

$

$

Not available

27

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

28

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available
