31-10K803 (310-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) STARTER POWER PLUS Parts Diagram

Garden Tractor

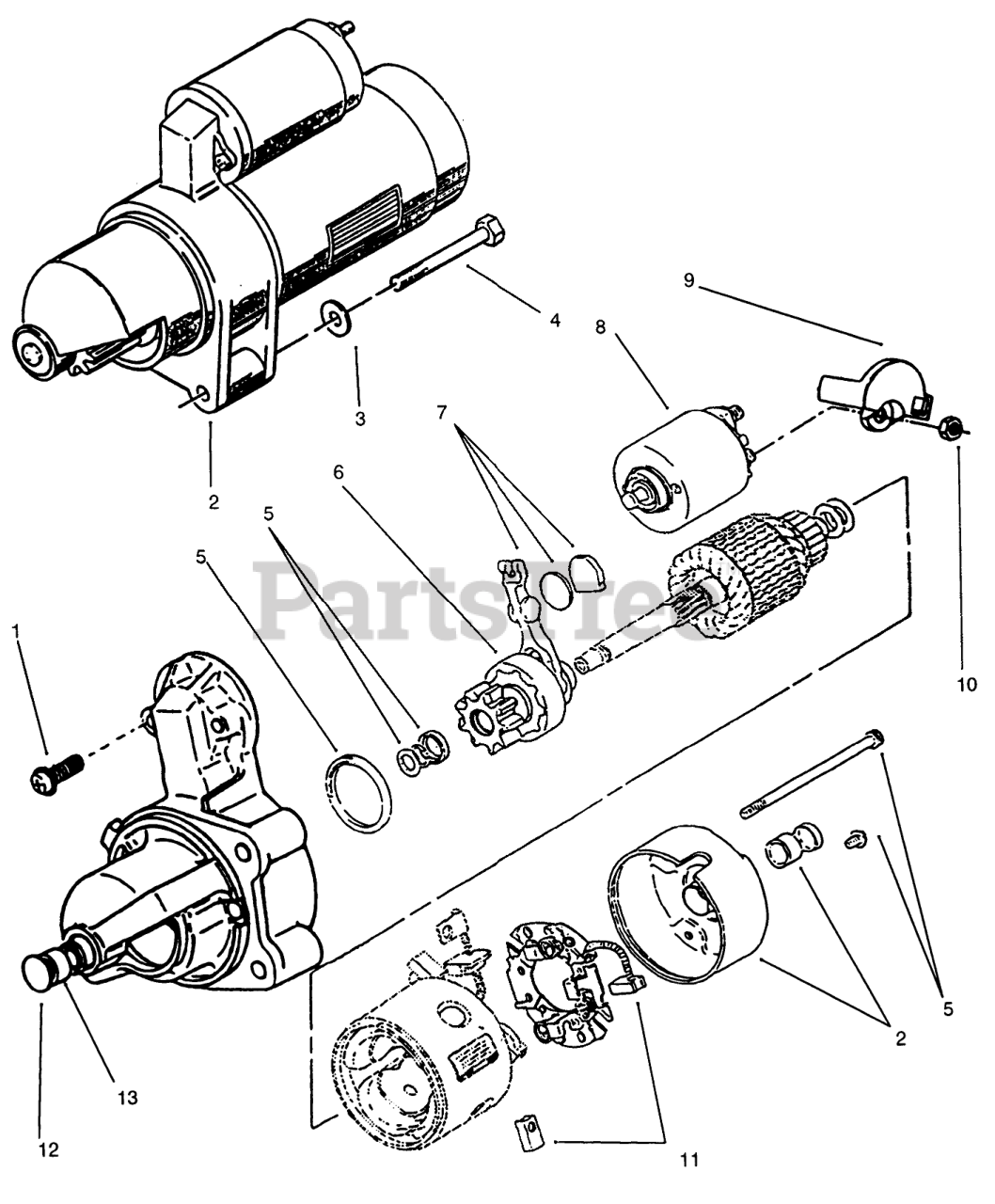

STARTER POWER PLUS Parts Diagram

  • Title

1

Toro NN10885

Starter Hdwr Kit (Includes Solenoid Screws 2], Brush Holder Screws 2], Thru Bolts 2], Armature Shims 2], Pinion Stop Collar, & Pinion Retaining Ring)
(Superseded to 62-2760)

$

$

Not available

2

Toro 71-6040

STARTER
(Superseded to 112-7023)

$441.99

$

Usually ships in 3-6 days

0

3

Toro 57-9770

WASHER

$

$

Not available

4

Toro 79-6580

SCREW

$

$

Not available

5

Toro NN10886

DUST-SEAL KIT

$

$

Not available

6

Toro NN10884

Clutch-Starter (Includes Pinion Gear w/Clutch)
(Superseded to 72-3940)

$

$

Not available

7

Toro NN10266

Kit-Starter Shift Lever (Includes Shift Lever, Wear Plate & Rubber Plug)
(Superseded to 62-2770)

$

$

Not available

8

Toro NN10887

Kit-Starter Solenoid (Includes Solenoid, Spring, & Plunger)
(Superseded to 72-3930)

$

$

Not available

9

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

10

Toro NN10768

Nut
(Superseded to 92-5935)

$

$

Not available

11

Toro NN10883

Kit-Starter Brush (Includes Positive Brush 2] & Negative Brush w/Pigtail)

$

$

Not available

12

Toro 62-2730

Kit-Bushing (Includes Front Bushing & Rear Cap w/Bushing)

$

$

Not available

13

Toro NN10929

Holder-Starter Brush (Includes Brush Holder w/Negative Brush)

$528.99

$

Usually ships in 3-6 days

0
