31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

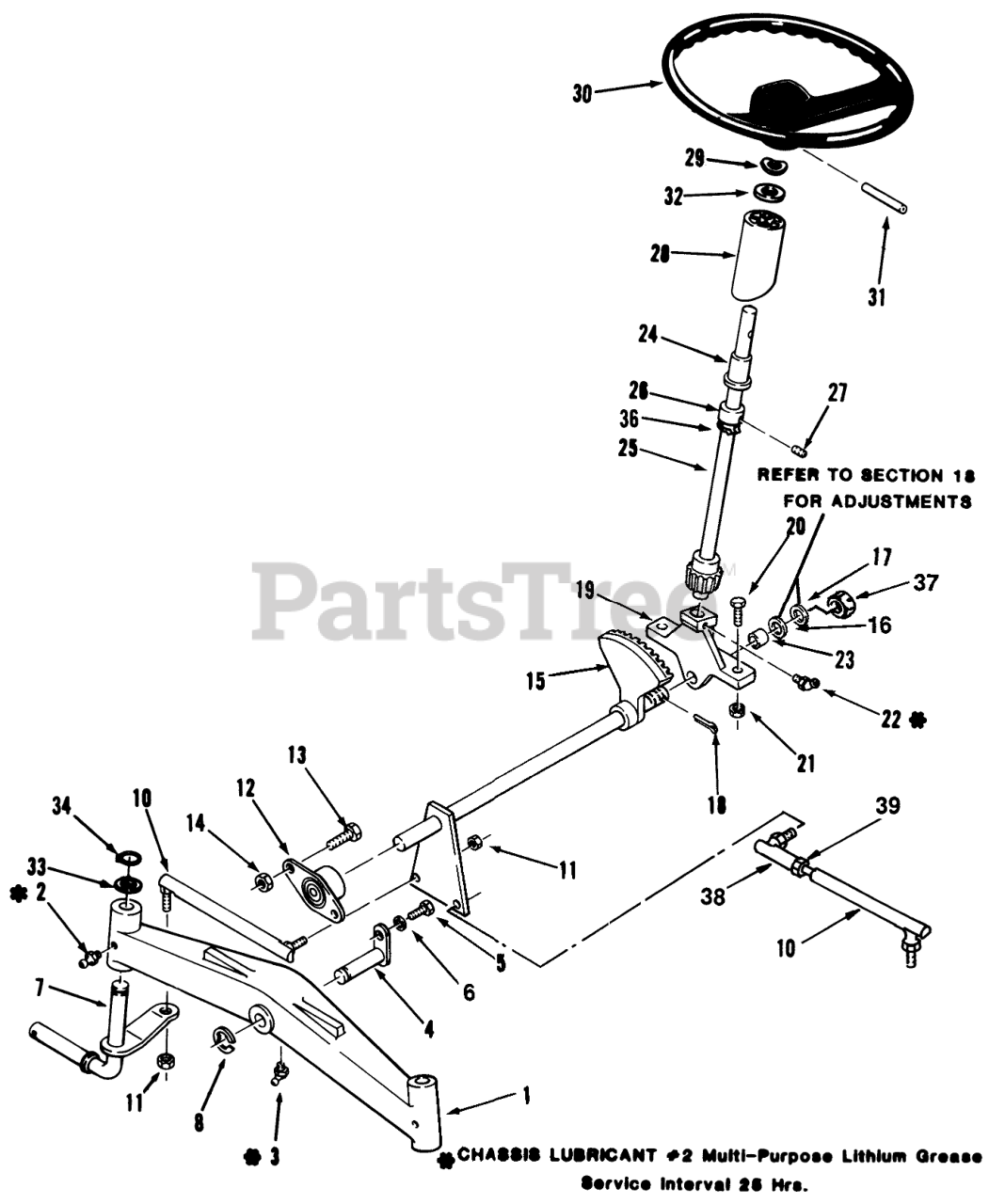

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

2

Toro 1030

Zerk

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

6

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

7

Toro 113380

RH SPINDLE WA
(Superseded to 113380-01)

$73.99

$

In Stock, only 1 left!

0

Toro 113379

LH SPINDLE ASM
(Superseded to 113379-01)

$73.99

$

In Stock, only 1 left!

0

Toro 113381

LH SPINDLE ASM
(Superseded to 113381-01)

$112.99

$

Usually ships in 3-6 days

0

Toro 113382

RH SPINDLE WA
(Superseded to 113382-01)

$108.99

$

In Stock, only 1 left!

0

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

10

Toro 78-2900

Tie Rod (Incl. Ref. #38)

$76.99

$

In Stock, only 2 left!

0

11

Toro 915693

Nut
(Superseded to 9156934)

$1.99

$

In Stock, Qty 5

0

12

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 2 left!

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

15

Toro 78-2880

Shaft
(Superseded to 78-2880-03)

$249.99

$

Usually ships in 3-6 days

0

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

18

Toro 932028

Cotter Pin
(Superseded to 3272-19)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 109733

Support
(Superseded to 88-2710-03)

$

$

Not available

20

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

22

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

23

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

24

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

25

Toro 106177

Shaft-Upper Steering
(Superseded to 92-4987)

$

$

Not available

26

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

27

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

28

Toro 113443

TUBE-STEERING

$

$

Not available

29

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

30

Toro 78-3100

Steering Wheel 310-8 (Incl. Ref. #40)

$374.99

$

Usually ships in 3-6 days

0

Toro 117337

Steering Wheel
(Superseded to 76-1420)

$217.99

$

Usually ships in 3-6 days

0

31

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

32

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

33

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

34

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

36

Toro 111646

RING-RETAINING

$1.99

$

In Stock, only 4 left!

0

37

Toro 915035

Nut-Slotted 3/4-16
(Superseded to 32136-5)

$7.99

$

Usually ships in 3-6 days

0

38

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

39

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

40

Toro 78-0370

STRG-WHL INSERT TORO

$

$

Not available
