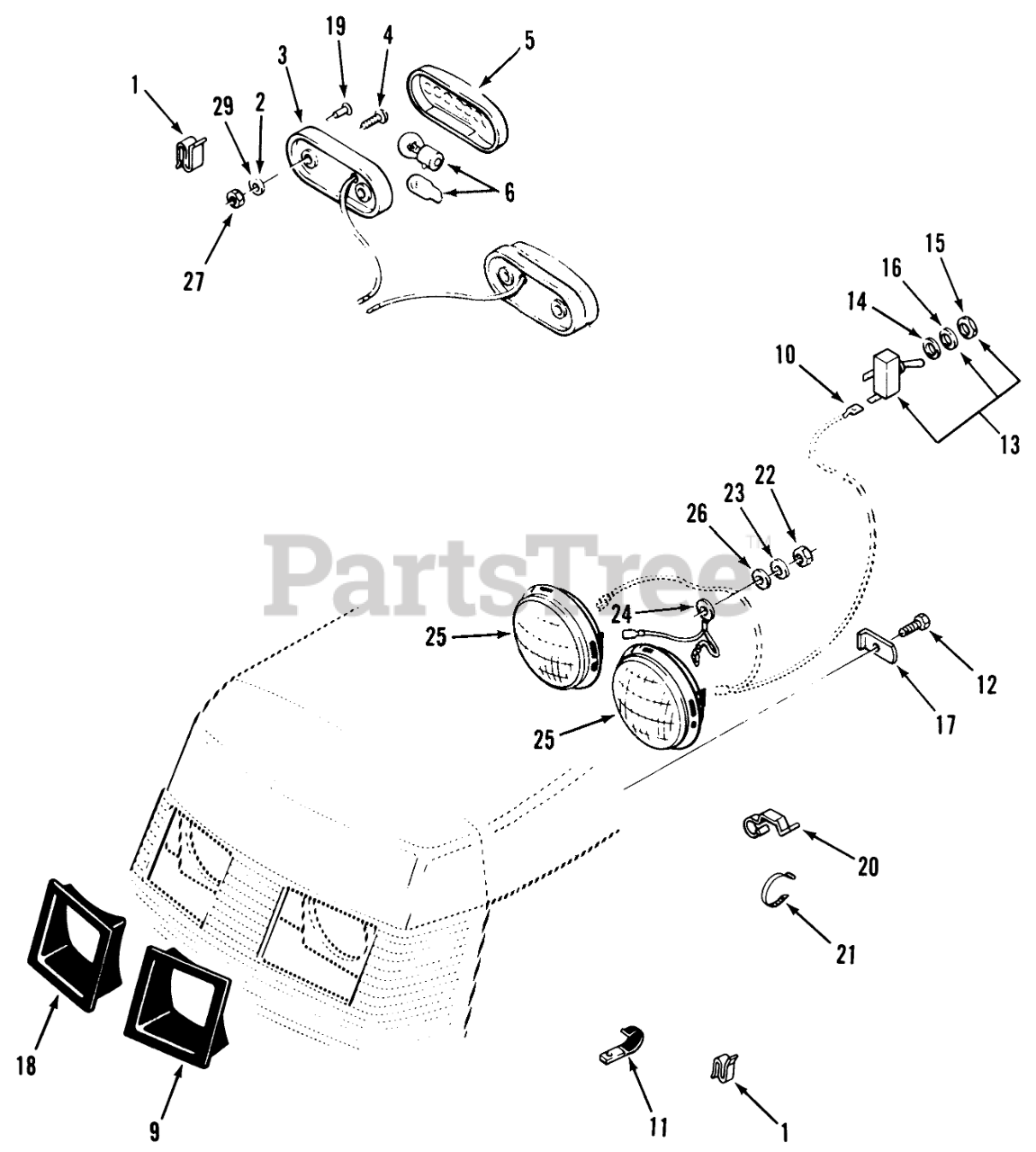

31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 3023

SPEED CLIP

$

$

Not available

2

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

3

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

4

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0

6

Toro 8043

Bulb

$

$

Currently unavailable

Toro 109045

LIGHT BULB

$

$

Not available

9

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

10

Toro 518104

Terminal

$

$

Currently unavailable

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

12

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

13

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

14

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

15

Toro 113179

DISC

$

$

Not available

16

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

17

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

18

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available

19

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

20

Toro 8519

CLIP-WIRE

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

23

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

24

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

25

Toro 102881

HEADLAMP

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

27

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

29

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0
