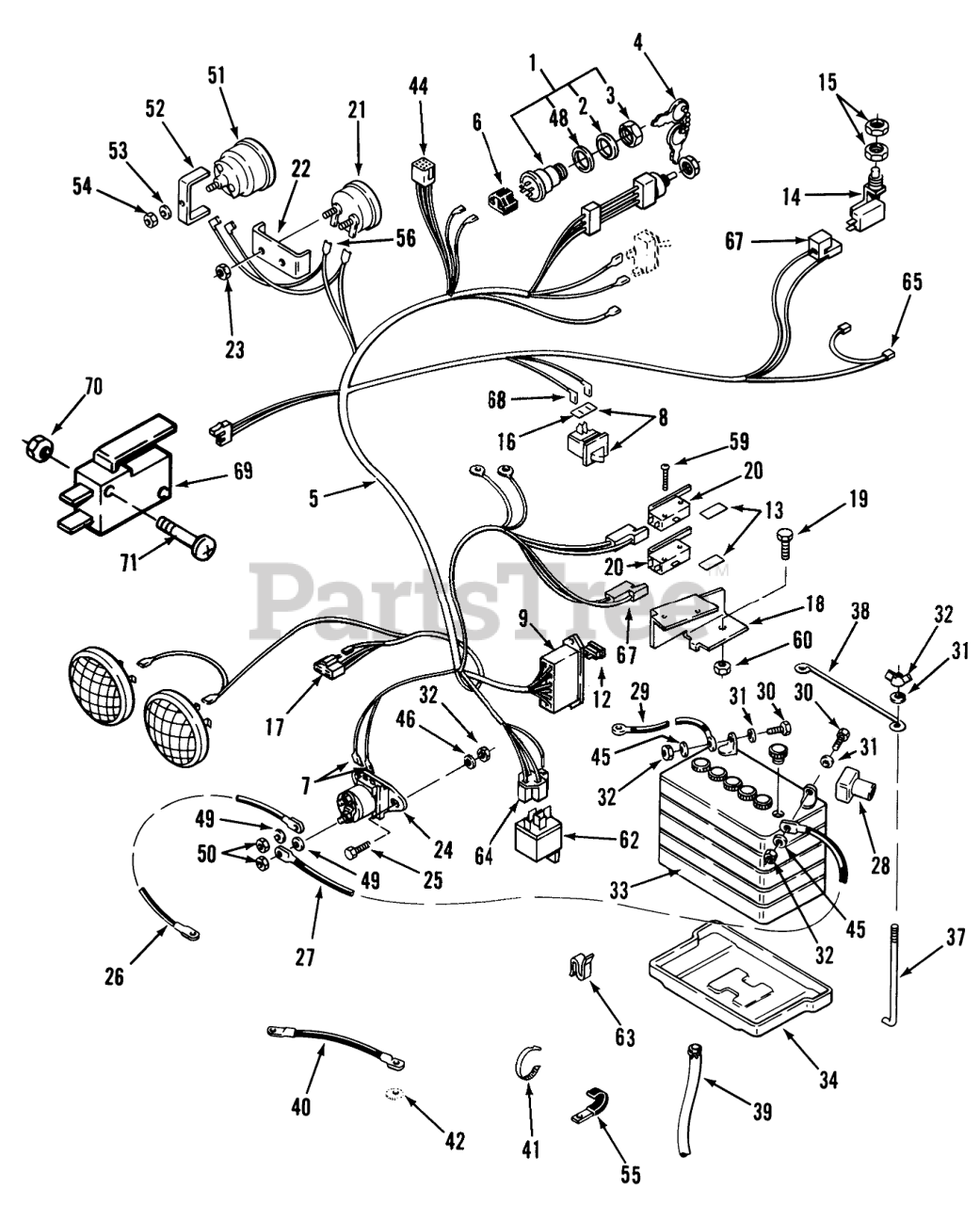

31-10K801 (310-8) - Toro Garden Tractor (1990) Electrical System Parts Diagram

Garden Tractor

Electrical System Parts Diagram

  • Title

1

Toro 111215

See Supercession: 103991
(Superseded to 103991)

$55.99

$

In Stock, only 1 left!

0

Toro 111216

See Supercession: 103990
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

2

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

4

Toro 111220

See Supercession: 62-7770
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

Toro 116738

See Supercession: 62-7770
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

5

Toro 116726

DISCONTINUED

$

$

Not available

Toro 117354

DISCONTINUED

$

$

Not available

Toro 116722

DISCONTINUED

$

$

Not available

Toro 116724

DISCONTINUED

$

$

Not available

Toro 117583

DISCONTINUED

$

$

Not available

6

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

7

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

8

Toro 103480

DISCONTINUED

$

$

Not available

9

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 114240

See Supercession: 112418
(Superseded to 112418)

$60.99

$

In Stock, only 3 left!

0

15

Toro 105805

See Supercession: 218-498
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

16

Toro 110502

SHIELD-DIRT SPST

$

$

Not available

17

Toro 112185

5-CONTACT CONN BODY

$9.49

$

Usually ships in 3-6 days

0

18

Toro 115411

DISCONTINUED

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

20

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

21

Toro 117176

DISCONTINUED

$

$

Not available

22

Toro 109650

CLAMP MOUNTING

$16.99

$

Usually ships in 3-6 days

0

23

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

24

Toro 110167

See Supercession: 740207
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

25

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

26

Toro 111069

DISCONTINUED

$

$

Not available

27

Toro 111074

CABLE-BLACK

$27.99

$

Usually ships in 3-6 days

0

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 111069

DISCONTINUED

$

$

Not available

30

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

31

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 116497

See Supercession: 32103-22
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 17

0

33

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

Toro 115877

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

34

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

37

Toro 113969

HOOK-BATTERY RETAIN

$16.99

$

In Stock, only 2 left!

0

38

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 4 left!

0

39

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

40

Toro 109910

WIRE GROUND

$5.99

$

Usually ships in 3-6 days

0

41

Toro 100571

DISCONTINUED

$

$

Not available

42

Toro 920155

DISCONTINUED
(Superseded to 3254-23)

$

$

Not available

44

Toro 102651

DUP PART SEE $BOOK

$

$

Not available

45

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

48

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

49

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

50

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

51

Toro 113469

GAUGE-HOURMETER

$446.99

$

Usually ships in 3-6 days

0

52

Toro 114017

BRKT-GAUGE MOUNTING

$

$

Not available

53

Toro 920120

See Supercession: 3255-17
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

54

Toro 915962

See Supercession: 32149-9
(Superseded to 32149-9)

$1.99

$

Usually ships in 3-6 days

0

55

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

59

Toro 910478

See Supercession: 9104784
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

60

Toro 915732

See Supercession: 9157324
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

62

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

63

Toro 519337

CLIP-CABLE

$

$

Not available

64

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

65

Toro 6921

Sur-Plug

$

$

Currently unavailable

67

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

68

Toro 518077

Terminal

$

$

Currently unavailable

69

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

70

Toro 915732

See Supercession: 9157324
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

71

Toro 910948

See Supercession: 9109484
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0
