30989 - Toro 52" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Gear (SN: 260000001 - 260999999) (2006) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH541V-BS23-R Parts Diagram

52" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Gear

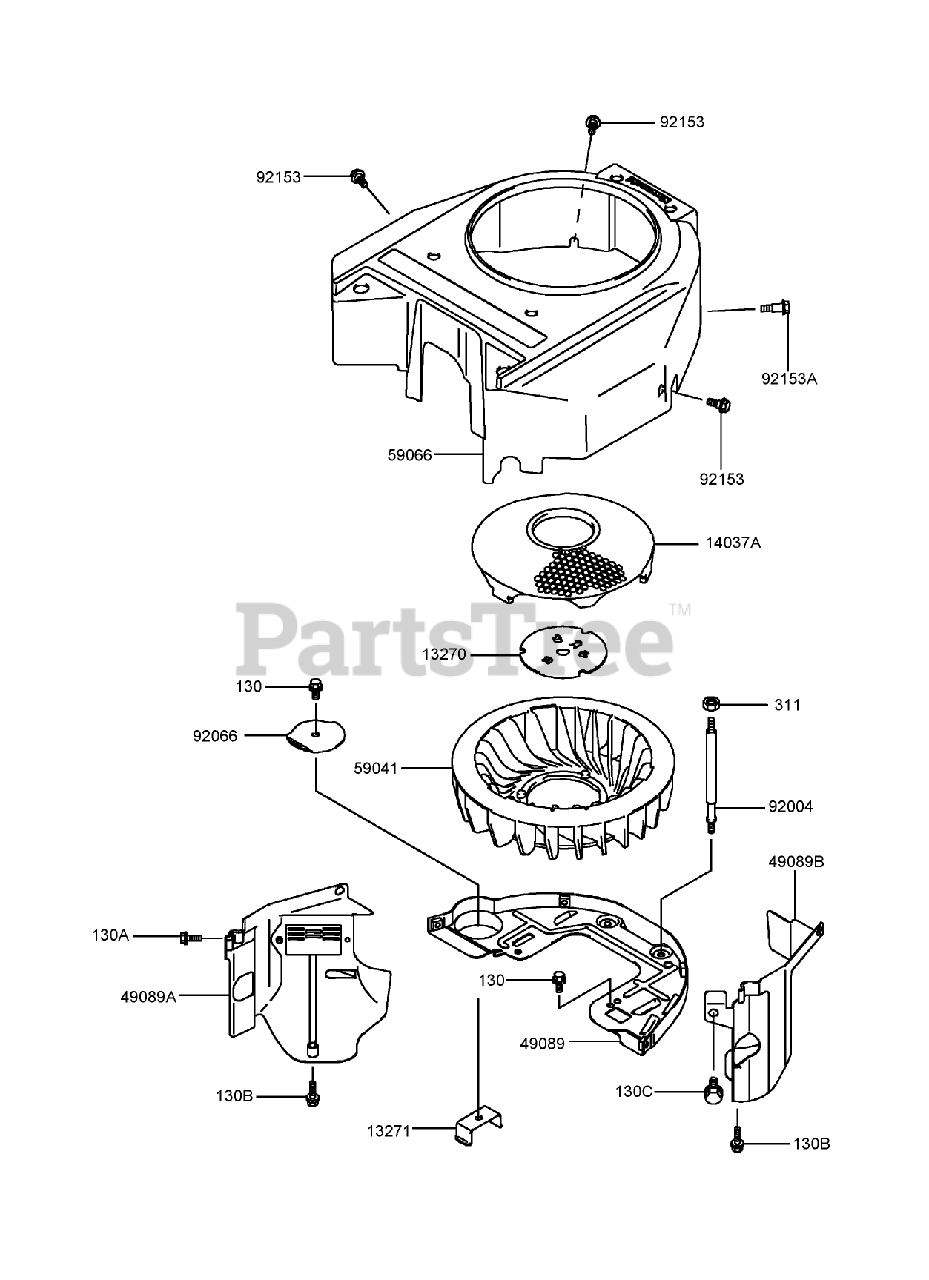

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH541V-BS23-R Parts Diagram

  • Title
13270

Kawasaki 13270-7007

Plate

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7002

Plate

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 1 left!

0

14037A

Kawasaki 14037-7025-9H

SCREEN
(Superseded to 14037-7025)

Note: Obtain parts from www.kawpowerepc.com

$35.99

$

In Stock, Qty 9

0

49089

Kawasaki 49089-7032

Shroud-Engine
(Superseded to 49089-7003)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7042

SHROUD-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7043

SHROUD-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

Usually ships in 2-5 days

0

59041

Toro 59041-7010

Fan
(Superseded to 59041-7012)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59066

Kawasaki 59066-7024

HOUSING-FAN

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92004

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7004

Plug

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
