30984 - Toro 36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Gear (SN: 260000001 - 260999999) (2006) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Gear

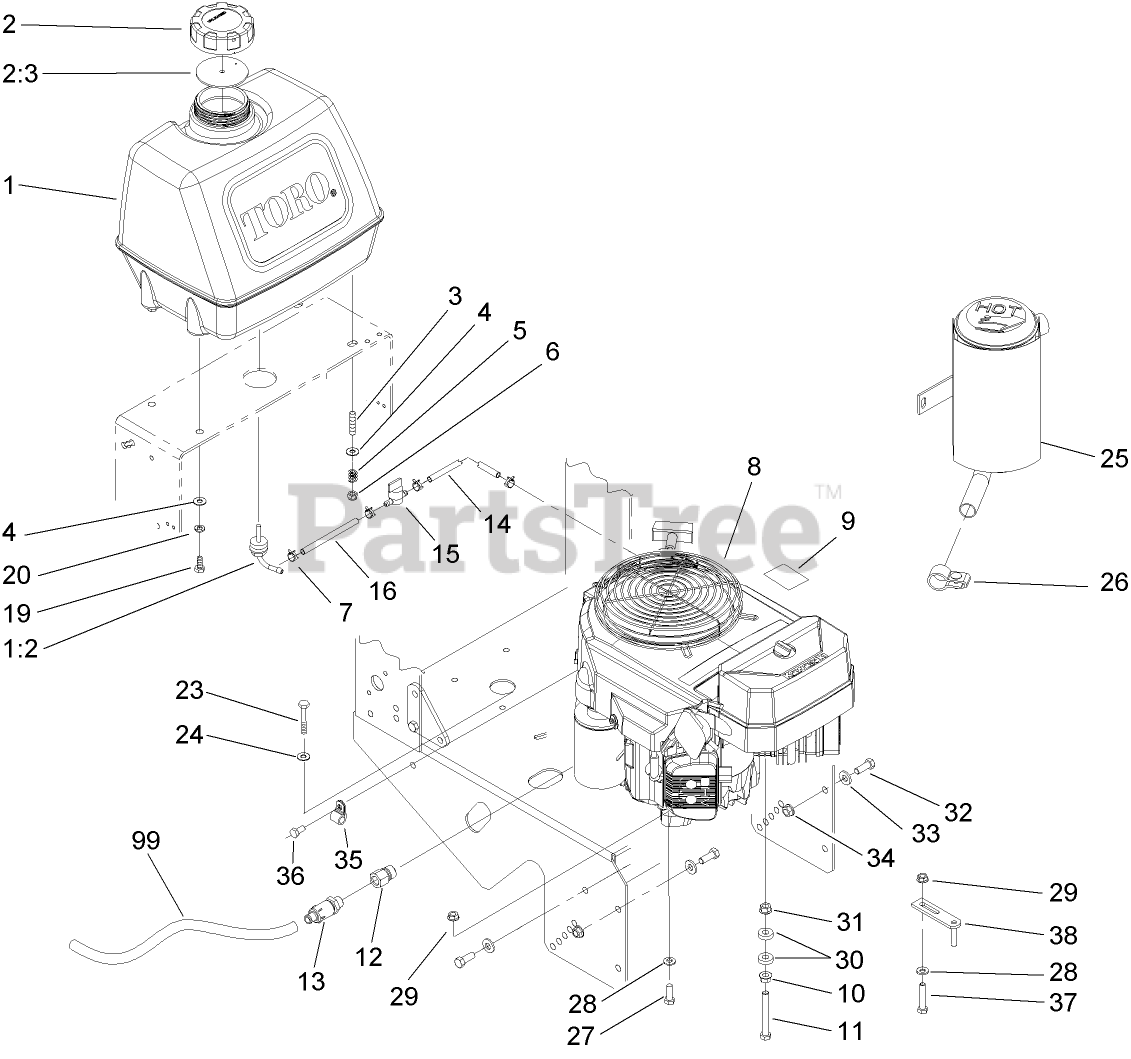

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 106-0730

FUEL TANK ASM

$

$

Not available

1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

2

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

2:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

3

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

7

$1.49

$

In Stock, Qty 8

0

8

ENGINE-KAWASAKI, FH430V-CS25

Note: Not serviced separately

$

$

Not available

8

ENGINE-KAWASAKI, FH430V-CS25

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

9

Toro 106-0699

DECAL-WARNING

$55.99

$

Usually ships in 3-6 days

0

10

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

13

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

14

Toro 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

15

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

16

Toro 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

20

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

23

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

24

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

25

Toro 100-6467

MUFFLER

$

$

Not available

26

Toro 103-5465

CLAMP-MUFFLER

$20.99

$

In Stock, only 1 left!

0

27

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

32

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

33

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

34

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Toro 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 13

0

36

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

37

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

38

Toro 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
