30950 - Toro 12 Volt String Trimmer, Electric (SN: 001000001 - 001999999) (1981) MOTOR AND HOUSING ASSEMBLY Parts Diagram

12 Volt String Trimmer, Electric

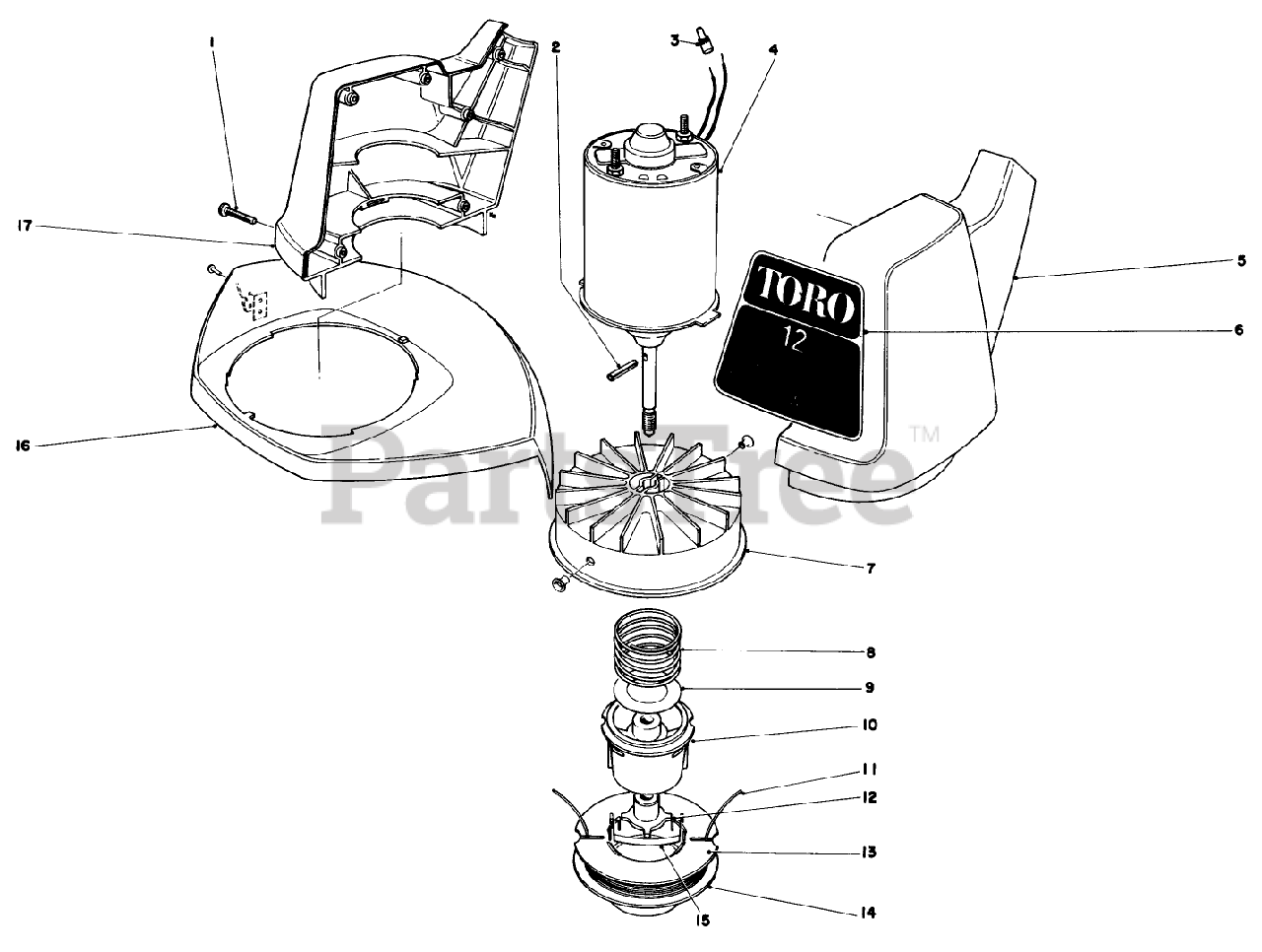

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

3

Toro 218-511

Connector

$

$

Not available

4

Toro 41-6710

Motor D.C.

$

$

Not available

5

Toro 29-7052

Housing-L.H.

$

$

Not available

6

Toro 41-5810

Decal-Commercial Duty

$

$

Not available

7

Toro 33-9240

Drum W/Eyelets

$

$

Not available

8

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

9

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

10

Toro 33-6230

SPOOL CORE

$

$

Not available

11

Toro 33-7910

50-Coil.065" Cutting Line
(Superseded to 88003)

$

$

Not available

12

Toro 29-7140

Driver
(Superseded to 42-6050)

$27.99

$

Usually ships in 3-6 days

0

13

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

14

Toro 29-7160

50-,.065" Dia. Line Prewound On Spool
(Superseded to 88005)

$19.99

$

Usually ships in 3-6 days

0

15

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

16

Toro 33-9110

Shield with Cut Off Blade
(Superseded to 34-8881)

$

$

Not available

17

Toro 29-7062

Housing-R.H.

$

$

Not available

Toro 41-6720

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable
