30950 - Toro 12 Volt String Trimmer, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

12 Volt String Trimmer, Electric

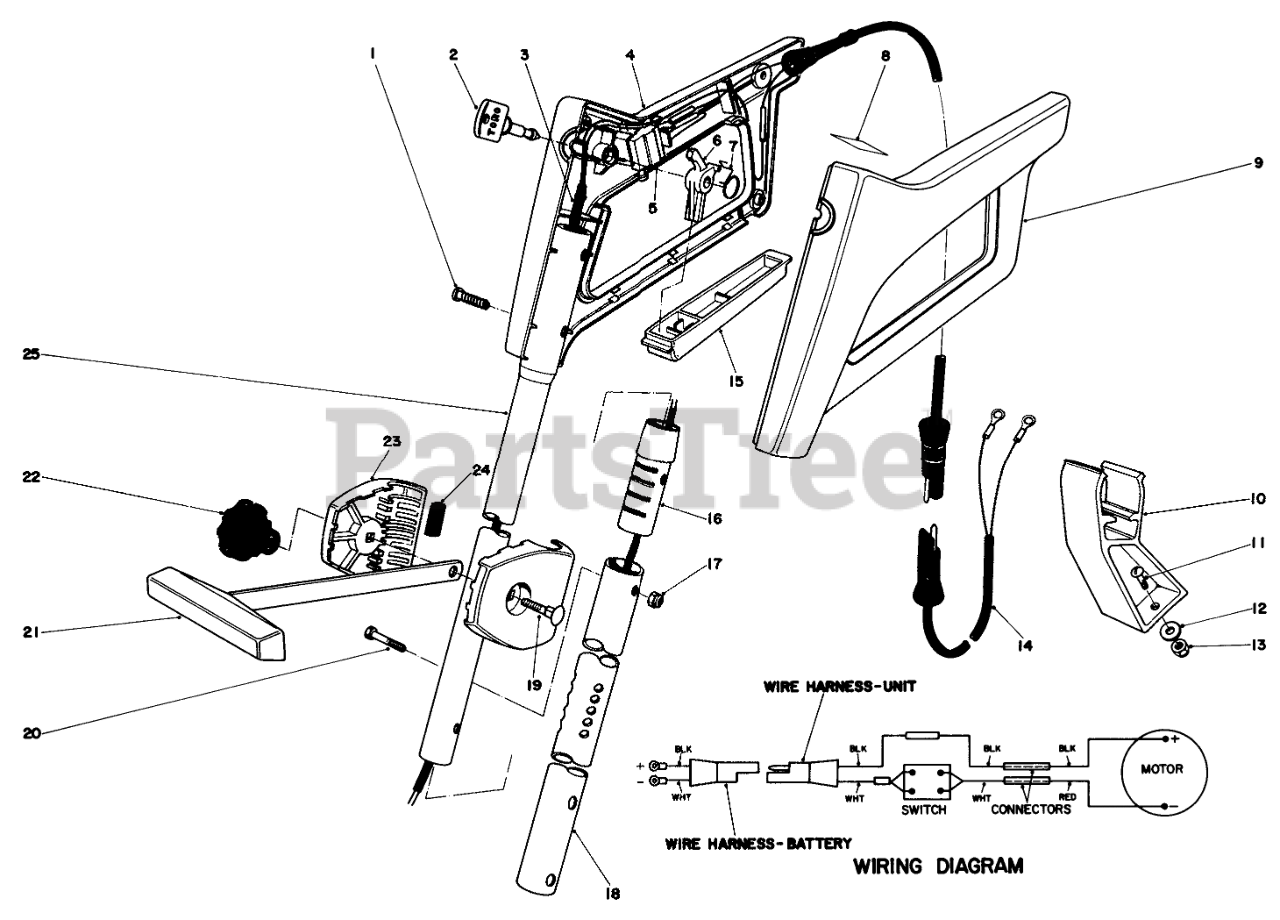

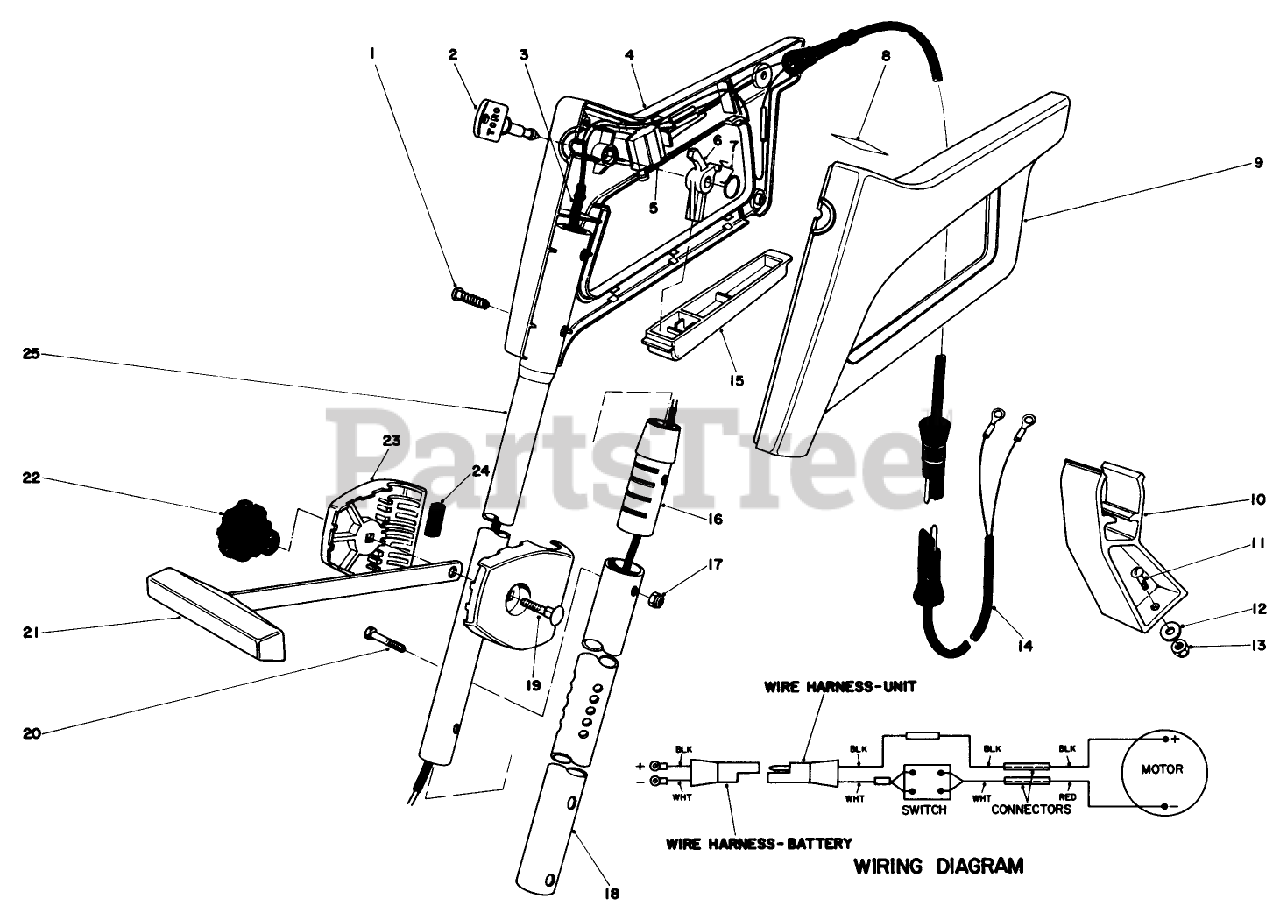

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

2

Toro 38-8310

KEY

$9.49

$

In Stock, only 1 left!

0

3

Toro 41-6700

WIRE HARNESS

$

$

Not available

4

Toro 43-7650

Control Grip R.H.
(Superseded to 38-8270)

$

$

Not available

5

Toro 36-8340

SWITCH-STARTER

$29.99

$

In Stock, only 4 left!

0

6

Toro 41-9870

LOCKOUT

$9.99

$

Usually ships in 3-6 days

0

7

Toro 38-8330

TORSION SPRING

$

$

Not available

8

Toro 41-5820

Decal-12 Volt

$

$

Not available

9

Toro 43-7640

Control Grip L.H.
(Superseded to 38-8260)

$

$

Not available

10

Toro 41-6520

Trimmer Clip

$

$

Not available

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

14

Toro 41-6660

Wire Harness-Battery

$

$

Not available

15

Toro 42-2870

SWITCH BAR,POWER SHOVEL

$

$

Not available

16

Toro 33-9180

Tubing Sleeve

$

$

Not available

17

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

18

Toro 33-9140

Lower Tube

$

$

Not available

19

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

20

Toro 29-7440

Screw

$

$

Not available

21

Toro 33-9200

Tee Handle
(Superseded to 33-9201)

$

$

Not available

22

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

23

Toro 33-9990

Clam Shell (Incl. Ref. #24)

$

$

Not available

24

Toro 29-7470

RUBBER INSERT

$

$

Not available

25

Toro 41-6430

Tubing-Upper

$

$

Not available
