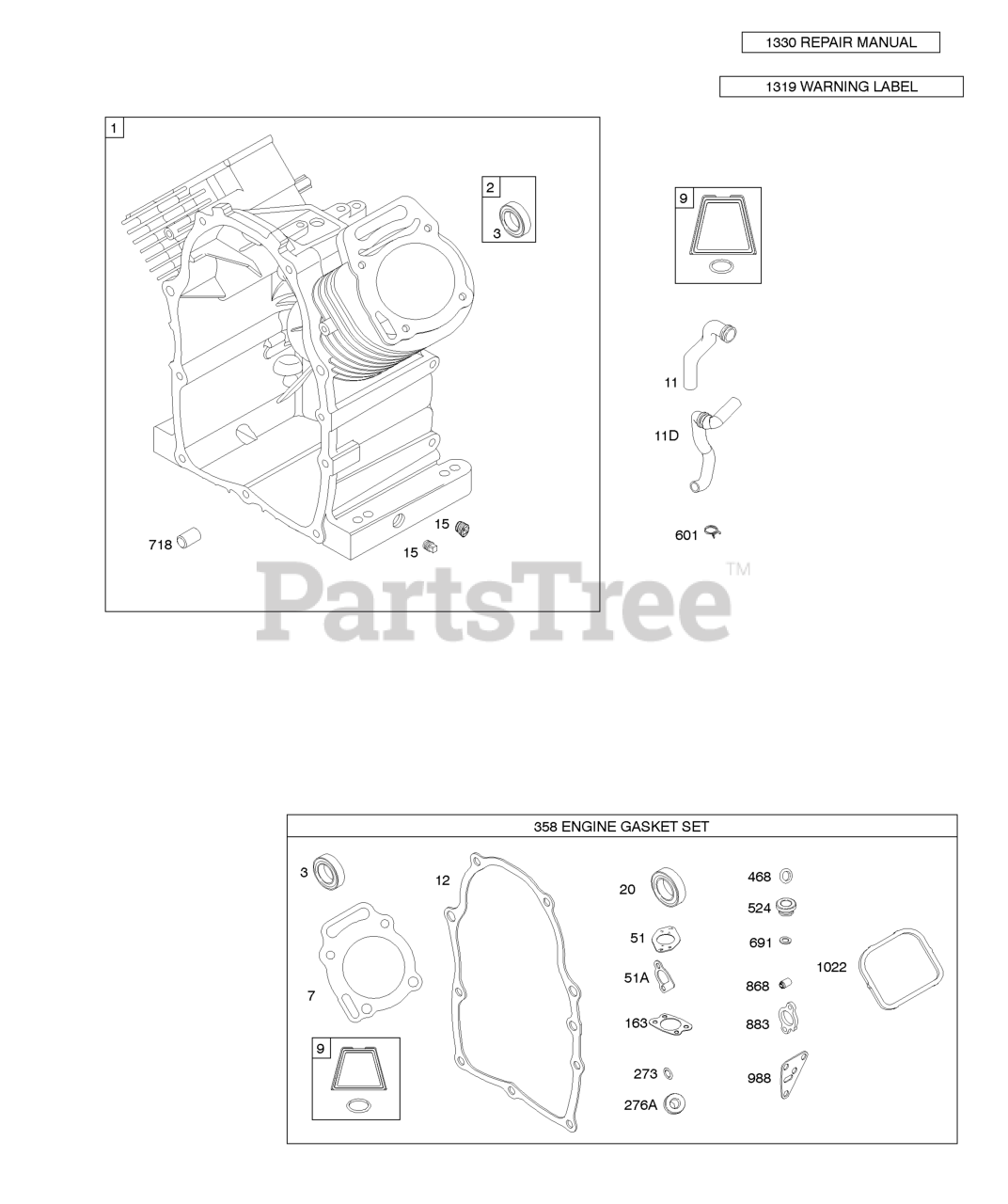

309447-0112-E1 - Briggs & Stratton Horizontal Engine Cylinder, Gasket Set - Engine Parts Diagram

Horizontal Engine

Cylinder, Gasket Set - Engine Parts Diagram

  • Title

1

Briggs & Stratton 808690

Cylinder Assembly

$546.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085S

Gasket-Cylinder Head

$28.99

$

In Stock, Qty 18

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.49

$

In Stock, only 3 left!

0

11

Briggs & Stratton 808686

Tube-Breather

Note: Used Before Code Date 12020100

$73.99

$

In Stock, only 1 left!

0

11D

Briggs & Stratton 844976

Tube-Breather

Note: Used After Code Date 12013100

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 846487

Gasket-Crankcase

$41.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (Square Socket)

$5.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Square Head)

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 806457

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 692035

Gasket-Intake

$3.49

$

In Stock, Qty 12

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 5

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

$3.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 808704

Gasket Set-Engine

$131.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 693172

Seal-Dipstick Tube

$5.49

$

In Stock, only 2 left!

0

601

Briggs & Stratton 691145

Clamp-Hose

$3.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

In Stock, only 1 left!

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

Usually ships in 2-12 days

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, Qty 5

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
