30941 - Toro 41cc Backpack Blower (SN: 079000001 - 079999999) (1997) BLOWER ASSEMBLY Parts Diagram

41cc Backpack Blower

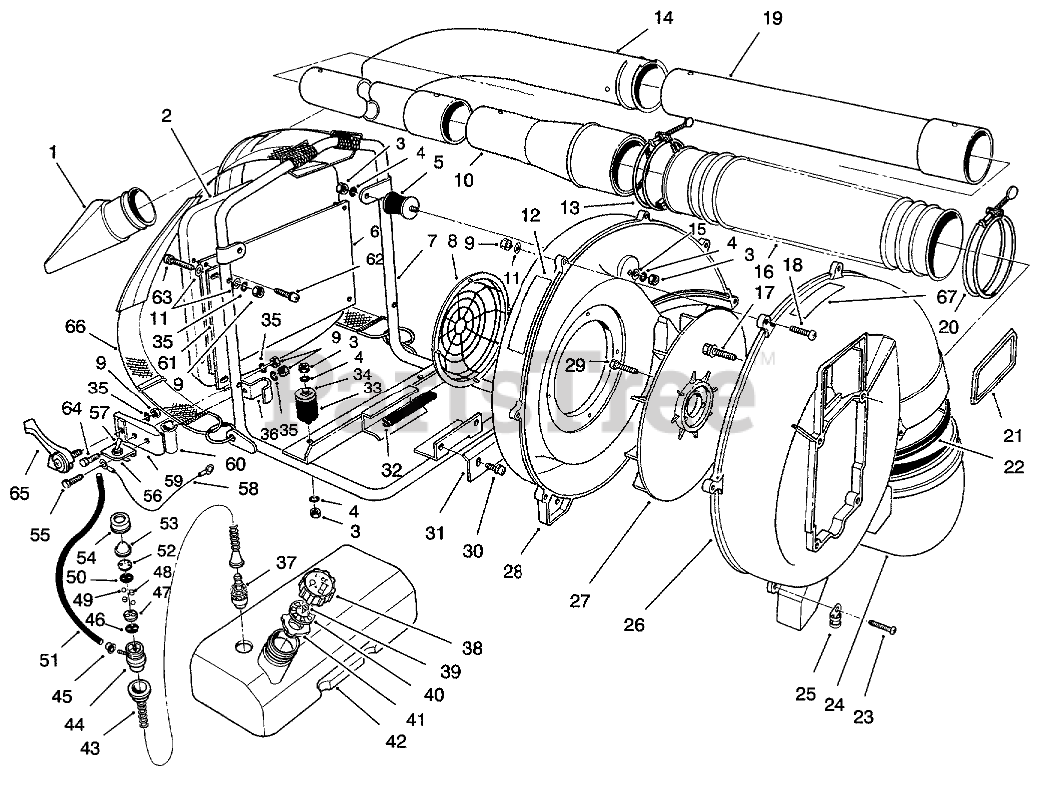

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 56-9080

NOZZLE

$

$

Not available

2

Toro 56-9330

PAD

$

$

Not available

3

Toro 56-9120

NUT

$

$

Not available

4

Toro 45-9130

Washer-Lock

$

$

Currently unavailable

5

Toro 56-9360

CUSHION RUBBER

$

$

Not available

6

Toro 56-9340

PLATE

$

$

Not available

7

Toro 56-9420

FRAME

$

$

Not available

8

Toro 56-9160

FAN COVER

$43.99

$

Usually ships in 3-6 days

0

9

Toro 56-9090

NUT

$

$

Not available

10

Toro 56-9050

HOSE

$

$

Not available

11

Toro 56-9430

WASHER

$1.49

$

Usually ships in 3-6 days

0

12

Toro 82-5670

DECAL - WARNING

$

$

Not available

13

Toro 56-9040

WIRE BAND

$

$

Not available

14

Toro 56-9070

HOSE

$

$

Not available

15

Toro 56-9140

WASHER

$

$

Not available

16

Toro 57-5640

HOSE

$

$

Not available

17

Toro 56-9210

BOLT & WASHER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 56-9150

SCREW & WASHER

$

$

Not available

19

Toro 56-9060

HOSE

$135.99

$

Usually ships in 3-6 days

0

20

Toro 56-9020

WIRE BAND

$

$

Not available

21

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

22

Toro 56-9180

DUST SEAL RING

$

$

Not available

23

Toro 56-9470

SCREW

$

$

Not available

24

Toro 56-9190

ELBOW

$

$

Not available

25

Toro 56-9220

Clamp
(Superseded to 54-4570)

$

$

Not available

26

Toro 56-9100

FAN CASE

$

$

Not available

27

Toro 56-9200

FAN

$289.99

$

Usually ships in 3-6 days

0

28

Toro 56-9170

FAN CASE

$539.99

$

Usually ships in 3-6 days

0

29

Toro 56-9110

BOLT ? WASHER

$

$

Not available

30

Toro 56-9410

BOLT & WASHER

$

$

Not available

31

Toro 56-9400

STOPPER

$

$

Not available

32

Toro 56-9390

CUSHION RUBBER

$

$

Not available

33

Toro 56-9380

CUSHION RUBBER

$

$

Not available

34

Toro 56-9370

CUSHION HOLDER

$

$

Not available

35

Toro 56-9260

SPRING WASHER

$

$

Not available

36

Toro 57-5690

STOPPER

$

$

Not available

37

Toro 57-5520

FUEL FILTER

$34.99

$

In Stock, only 3 left!

0

38

Toro 95-0674

Gas Cap Assembly (Incl. Ref. #39-41)

$

$

Not available

39

Valve-Breather

$

$

Not available

40

Holder

$

$

Not available

41

Gasket

$

$

Not available

42

Toro 56-9010

Fuel Tank Assembly (Incl. Ref.#37-41, 43, 44, 46-50, & 52-54)

$

$

Not available

43

Toro 54-7050

HOSE, SUCTION

$54.99

$

Usually ships in 3-6 days

0

44

Toro 95-0672

Primer-Pump (Incl. Ref. #47-54)

$

$

Not available

45

Toro 54-5550

CLIP

$2.99

$

Usually ships in 3-6 days

0

46

Toro 54-5500

GASKET

$6.49

$

Usually ships in 3-6 days

0

47

Toro 54-5490

SEAT VALVE

$

$

Not available

48

Toro 95-0673

SPONGE

$

$

Not available

49

Toro 54-5480

BALL

$6.49

$

In Stock, only 2 left!

0

50

Toro 54-5460

GASKET

$

$

Not available

51

Toro 56-9000

FUEL TUBE

$

$

Not available

52

Toro 54-5530

SEAT VALVE

$

$

Not available

53

Toro 54-5520

CAP

$25.99

$

Usually ships in 3-6 days

0

54

Toro 54-5510

PUMP CAP

$

$

Not available

55

Toro 56-9230

BOLT

$

$

Not available

56

Toro 56-9310

SWITCH BRACKET

$

$

Not available

57

Toro 56-9240

STOP SWITCH

$

$

Not available

58

Toro 56-9290

WIRE LEAD

$

$

Not available

59

Toro 57-5700

BRACKET

$

$

Not available

60

Toro 57-5650

BUSHING

$

$

Not available

61

Toro 56-9350

PLATE

$

$

Not available

62

Toro 56-9450

SCREW & WASHWER

$

$

Not available

63

Toro 56-9440

SCREW & WASHER

$1.49

$

Usually ships in 3-6 days

0

64

Toro 57-5530

BOLT

$

$

Not available

65

Toro 56-9250

THROTTLE LEVER

$

$

Not available

66

Toro 56-9460

SHOULDER HARNESS

$

$

Not available

67

Toro 82-5710

DECAL - SOUND LEVEL

$

$

Not available

Toro 44-7400

Ear Plug Kit

Note: Not illustrated

$

$
