30941 - Toro 41cc Backpack Blower (SN: 006002184 - 006999999) (1986) ENGINE & MUFFLER ASSEMBLY Parts Diagram

41cc Backpack Blower

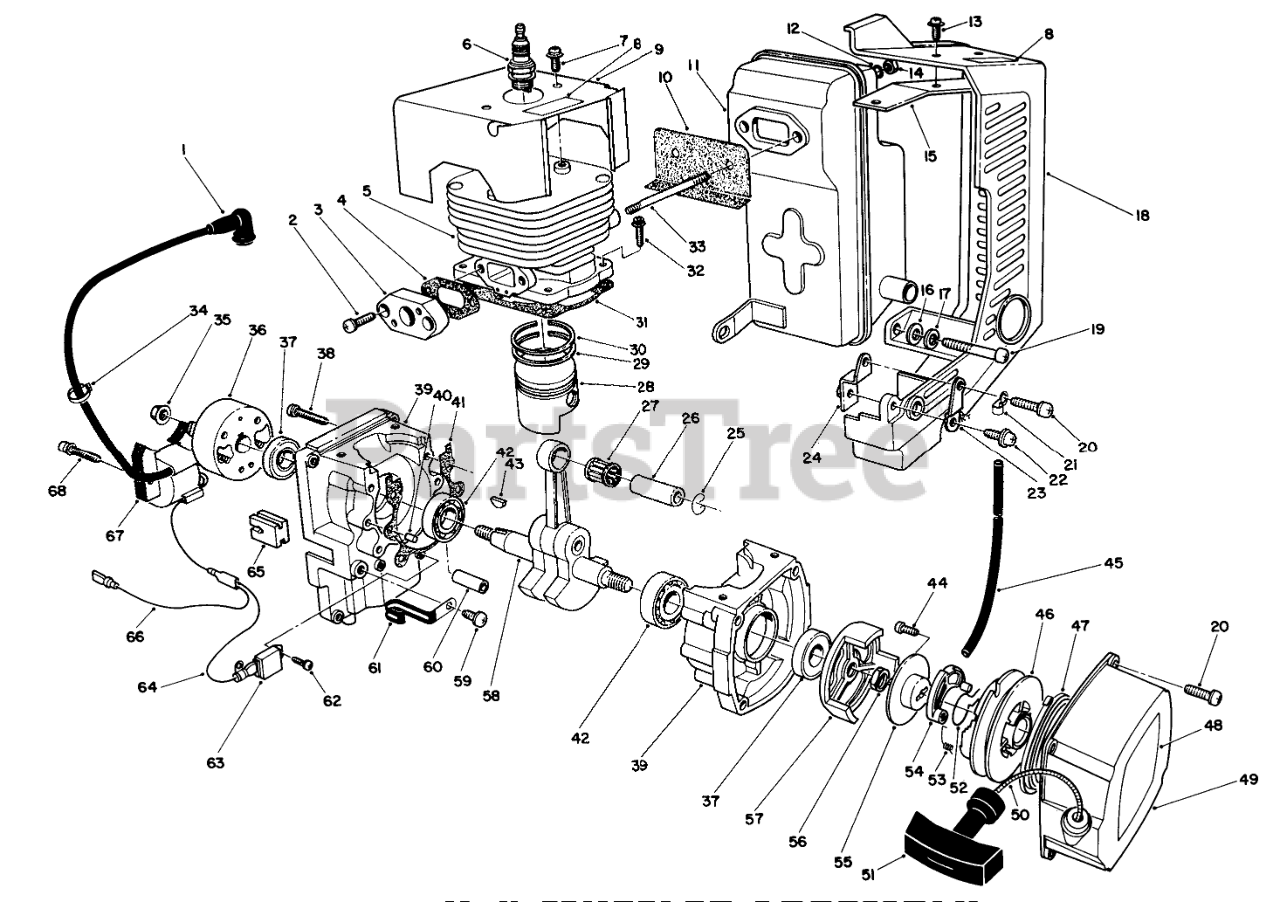

ENGINE & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 54-4730

CAP-PLUG

$

$

Not available

2

Toro 56-8350

SCREW & WASHER

$

$

Not available

3

Toro 56-8420

FLANGE

$

$

Not available

4

Toro 56-8430

GASKET

$

$

Not available

5

Toro 56-8180

CYLINDER

$

$

Not available

6

Toro 56-8290

SPARK PLUG

$

$

Not available

7

Toro 54-6890

SCREW & WASHER

$

$

Not available

8

Toro 42-6210

Decal-Hot Surface
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

9

Toro 56-8160

CYL COVER

$

$

Not available

10

Toro 56-8740

MUFFLER GASKET

$

$

Not available

11

Toro 56-8750

MUFFLER

$

$

Not available

12

Toro 56-8760

Washer-Lock
(Superseded to 51-7400)

$

$

Not available

13

Toro 56-8790

SCREW & WASHER

$

$

Not available

14

Toro 56-8770

NUT

$

$

Not available

15

Toro 56-8780

BRACKET

$23.99

$

Usually ships in 3-6 days

0

16

Toro 56-8810

Washer

$

$

Not available

17

Toro 56-8820

Washer-Lock

$

$

Not available

18

Toro 56-8800

MUFFLER COVER

$

$

Not available

19

Toro 56-8830

Screw

$

$

Not available

20

Toro 56-8880

SCREW & WASHER

$

$

Not available

21

Toro 56-8890

Clamp

$

$

Not available

22

Toro 56-8840

SCREW & WASHER

$

$

Not available

23

Toro 56-8850

BRACKET

$

$

Not available

24

Toro 56-8860

BRACKET

$

$

Not available

25

Toro 56-8230

PISTON PIN CLIP

$

$

Not available

26

Toro 56-8260

PISTON PIN

$

$

Not available

27

Toro 56-8270

NEEDLE BEARING

$

$

Not available

28

Toro 56-8240

Piston (Incl. Ref. #26)

$

$

Not available

29

Toro 56-8220

TOP RING

$

$

Not available

30

Toro 56-8210

TOP RING

$23.99

$

In Stock, only 1 left!

0

31

Toro 56-8200

GASKET

$

$

Not available

32

Toro 56-8190

FLANGE BOLT

$

$

Not available

33

Toro 56-8170

STUD BOLT

$

$

Not available

34

Toro 54-5990

BAND

$

$

Not available

35

Toro 54-4670

NUT

$

$

Not available

36

Toro 56-8300

ROTOR

$390.99

$

Usually ships in 3-6 days

0

37

Toro 56-8120

OIL SEAL

$

$

Not available

38

Toro 54-5760

SCREW & WASHER

$

$

Not available

39

Toro 56-8110

Crankcase Assembly (Incl. Ref. #38, 40)

$596.99

$

Usually ships in 3-6 days

0

40

Toro 54-4510

Knock Pin

$

$

Not available

41

Toro 56-8150

GASKET

$

$

Not available

42

Toro 54-5680

BALL BEARING

$

$

Not available

43

Toro 56-8250

Key-Woodruff
(Superseded to 54-4660)

$

$

Not available

44

Toro 54-6340

Screw
(Superseded to 60-8220)

$

$

Not available

45

Toro 56-8380

FUEL TUBE

$6.99

$

Usually ships in 3-6 days

0

46

Toro 56-8950

Reel
(Superseded to 54-7000)

$

$

Not available

47

Toro 56-8960

Spring
(Superseded to 54-7010)

$

$

Not available

48

Toro 55-8250

Decal-41 CC Power Blower
(Superseded to 63-9430)

$

$

Not available

49

Toro 56-8990

Case-Starter
(Superseded to 99-5281)

$

$

Not available

50

Toro 56-8980

STARTER ROPE
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

51

Toro 56-8970

STARTER KNOB

$27.99

$

Usually ships in 3-6 days

0

52

Toro 54-6320

SPRING, FRICTION

$

$

Not available

53

Toro 54-6330

SPRING, RETURN

$

$

Not available

54

Toro 56-8940

Ratchet
(Superseded to 54-6360)

$

$

Not available

55

Toro 56-8930

FRICTION PLATE

$

$

Not available

56

Toro 56-8910

J/S NUT

$2.99

$

Usually ships in 3-6 days

0

57

Toro 56-8920

STARTER PULLEY

$67.99

$

In Stock, only 1 left!

0

58

Toro 56-8280

CRANKSHAFT ASM

$

$

Not available

59

Toro 56-8140

Screw

$

$

Not available

60

Toro 56-8870

PIPE

$15.99

$

Usually ships in 3-6 days

0

61

Toro 56-8130

Clamp

$

$

Not available

62

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

63

Toro 56-8320

TRANSISTER UNIT
(Superseded to 106-4163)

$

$

Not available

64

Toro 56-8330

LEAD WIRE

$

$

Not available

65

Toro 56-8340

Grommet

$

$

Not available

66

Toro 56-9300

WIRE LEAD

$

$

Not available

67

Toro 56-8310

IGNITION COIL

$

$

Not available

68

Toro 54-4790

BOLT AND WASHER

$5.99

$

Usually ships in 3-6 days

0

Toro 56-8900

Recoil Assembly (Incl. Ref. #44, 46-48, 50-55, & 57)

Note: Not illustrated

$

$

Not available

Toro 56-6200

Spark Arrester Muffler

Note: Not illustrated

$

$

Currently unavailable
