30940 - Toro 40cc Backpack Blower (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

40cc Backpack Blower

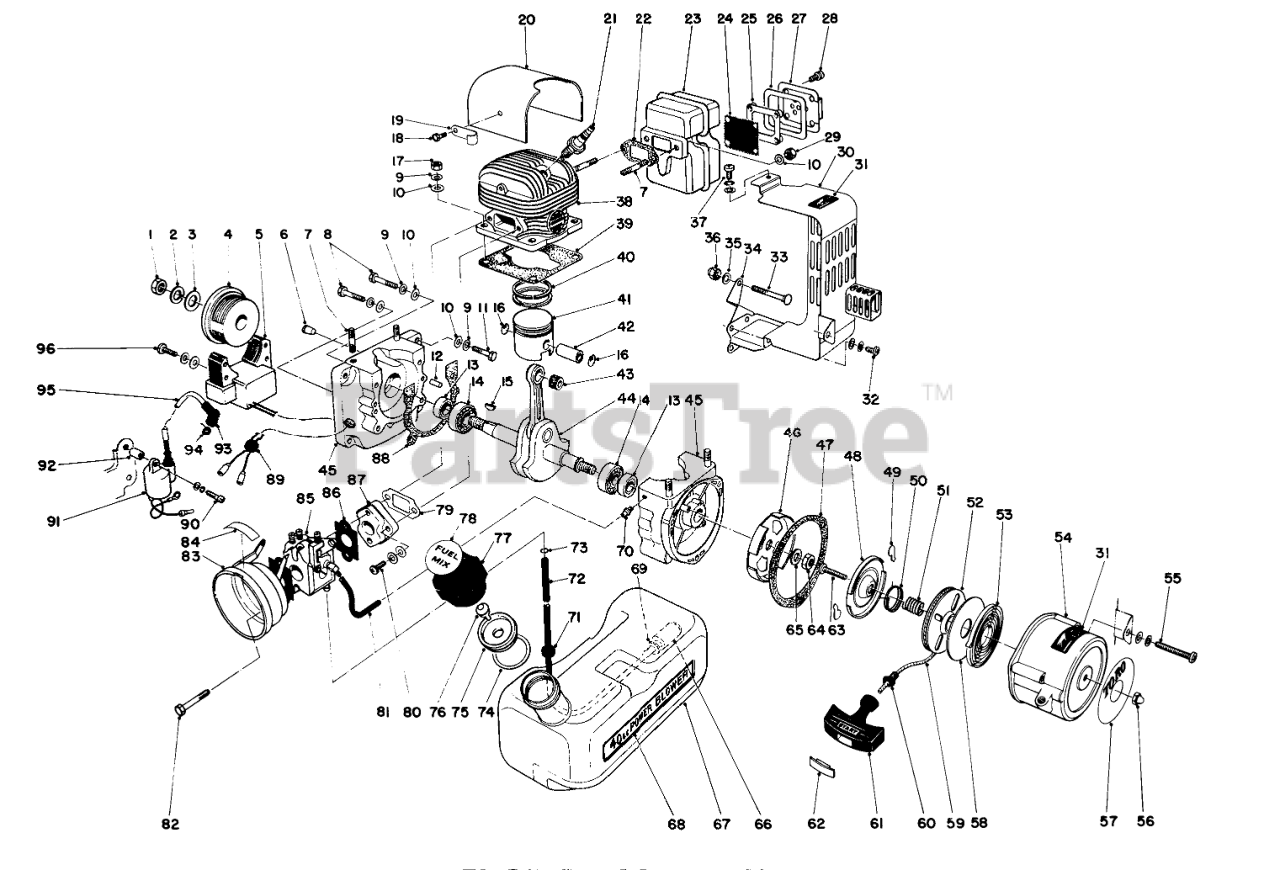

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-6120

Nut

$

$

Not available

2

Toro 41-6110

Spring Washer

$

$

Not available

3

Toro 41-6140

Washer

$

$

Not available

4

Toro 46-4440

Rotor

$

$

Not available

5

Toro 46-4450

C.D.I. MODULE - ECHO

$

$

Not available

6

Toro 46-4400

Plug

$

$

Not available

7

Toro 47-6460

Stud

$

$

Not available

8

Toro 41-0370

Bolt

$

$

Not available

9

Toro 41-5500

Washer

$

$

Not available

10

Toro 47-6480

Washer
(Superseded to 3256-60)

$1.99

$

Usually ships in 3-6 days

0

11

Toro 41-4850

Bolt

$

$

Not available

12

Toro 41-0320

Knockpin

$

$

Not available

13

Toro 41-0300

Oil Seal

$

$

Not available

14

Toro 41-5680

Ball Bearing

$

$

Not available

15

Toro 41-6160

Woodruff Key

$

$

Not available

16

Toro 41-0140

CIRCLIP PISTON PIN

$

$

Not available

17

Toro 41-5360

Nut

$

$

Not available

18

Toro 41-4840

Bolt

$

$

Not available

19

Toro 41-2550

Clamp

$

$

Not available

20

Toro 41-0600

Cylinder Cover

$

$

Not available

21

Toro 41-2500

Spark Plug
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

22

Toro 46-5910

Gasket Muffler
(Superseded to 71-1170)

$

$

Not available

23

Toro 46-5890

Muffler Assembly (Incl. Ref.#22-30, 35 & 7)
(Superseded to 71-1200)

$

$

Not available

24

Toro 46-5900

Screen

$

$

Not available

25

Toro 47-6430

Seat Screen

$

$

Not available

26

Toro 47-6440

Packing Holder

$

$

Not available

27

Toro 47-6420

Holder Screen

$

$

Not available

28

Toro 47-6450

Screw

$

$

Not available

29

Toro 47-6470

LOCKNUT

$

$

Not available

30

Toro 46-4420

MUFFLER COVER

$

$

Not available

31

Toro 42-6210

Decal-Hot Surface
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

32

Toro 41-5210

SCREW

$

$

Not available

33

Toro 41-3920

Bolt, Elbow

$

$

Not available

34

Toro 46-5920

Bracket-Muffler Cover

$

$

Not available

35

Toro 47-6370

WASHER

$

$

Not available

36

Toro 41-3930

Capnut

$

$

Not available

37

Toro 43-9360

SCREW W/WASHER

$

$

Not available

38

Toro 41-0460

Cylinder

$

$

Not available

39

Toro 41-0470

Packing Cylinder Base
(Superseded to 66-9310)

$

$

Not available

40

Toro 41-0060

PISTON RING

$

$

Not available

41

Toro 55-8100

Piston

$

$

Not available

42

Toro 41-0110

Piston Pin

$

$

Not available

43

Toro 41-0080

Needle Bearing

$

$

Not available

44

Toro 41-0170

Crankshaft Assembly

$

$

Not available

45

Toro 41-0220

Crankcase Set

$

$

Not available

46

Toro 41-2880

PAWL CATCHER

$

$

Not available

47

Toro 41-0430

STARTER CASE GASKET

$

$

Not available

48

Toro 41-2890

FRICTION PLT

$

$

Not available

49

Toro 41-2970

RATCHET

$

$

Not available

50

Toro 41-3140

RATCHET SPRING

$

$

Not available

51

Toro 41-3130

SPRING

$

$

Not available

52

Toro 41-2930

Recoil Drum

$

$

Not available

53

Toro 41-2990

REWIND SPRING

$117.99

$

Usually ships in 3-6 days

0

54

Toro 41-3120

Starter Case

$

$

Not available

55

Toro 41-5270

SCREW

$

$

Not available

56

Toro 41-3180

Cap Nut

$

$

Not available

57

Toro 44-7470

Decal-Toro

$

$

Not available

58

Toro 41-3160

Side Plate, Starter

$

$

Not available

59

Toro 41-3030

Starter Rope

$

$

Not available

60

Toro 46-3870

Rope Guide

$

$

Not available

61

Toro 41-3070

Starter Handle

$

$

Not available

62

Toro 41-3210

Cap, Starter Handle

$

$

Not available

63

Toro 41-3170

Screw

$

$

Not available

64

Toro 41-6180

Nut

$

$

Not available

65

Toro 41-2750

Washer

$

$

Not available

66

Toro 46-4280

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

67

Toro 41-1550

Fuel Tank

$

$

Not available

68

Toro 41-5800

Decal-40cc

$

$

Not available

69

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

70

Toro 41-1360

Connector

$

$

Not available

71

Toro 41-1890

GROMMET

$

$

Not available

72

Toro 41-1800

FUEL PIPE

$

$

Not available

73

Toro 46-3950

Clip Fuel Pipe

$

$

Not available

74

Toro 46-4520

FUEL TANK GASKET

$

$

Not available

75

Toro 46-4510

Holder, Check Valve

$

$

Not available

76

Toro 41-1680

Check Valve
(Superseded to 54-5610)

$18.99

$

Usually ships in 3-6 days

0

77

Toro 46-4290

FUEL TANK CAP - WILLMAR

$

$

Not available

78

Toro 41-4730

Decal-Fuel Mix

$

$

Not available

79

Toro 46-4480

GASKET

$

$

Not available

80

Toro 41-5300

SCREW

$

$

Not available

81

Toro 41-1370

Pipe

$

$

Not available

82

Toro 41-1310

Bolt

$

$

Not available

83

Toro 46-4490

CLEANER CASE-WILLMAR

$

$

Not available

84

Toro 41-4760

Decal-Caution

$

$

Not available

85

Toro 41-0660

CARBURATOR ASM

$

$

Not available

86

Toro 41-1250

GASKET

$

$

Not available

87

Toro 41-1170

INSULATOR

$

$

Not available

88

Toro 41-0340

Packing, Crankcase
(Superseded to 66-9310)

$

$

Not available

89

Toro 46-4460

Grommet

$

$

Not available

90

Toro 41-5180

Screw

$

$

Not available

91

Toro 46-4530

IGNITION COIL

$

$

Not available

92

Toro 46-4540

Spacer

$

$

Not available

93

Toro 41-2520

Cap-Spark Plug

$

$

Not available

94

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

95

Toro 41-2280

Sleeve

$

$

Not available

96

Toro 41-5240

Bolt

$

$

Not available

Toro 41-2820

RECOIL STARTER ASM

Note: Not illustrated

$

$

Not available

Toro 46-4500

FUEL CAP ASM

Note: Not illustrated

$

$

Not available
