30940 - Toro 40cc Backpack Blower (SN: 003000001 - 003999999) (1983) BACK PACK AND BLOWER HOUSING ASSEMBLY Parts Diagram

40cc Backpack Blower

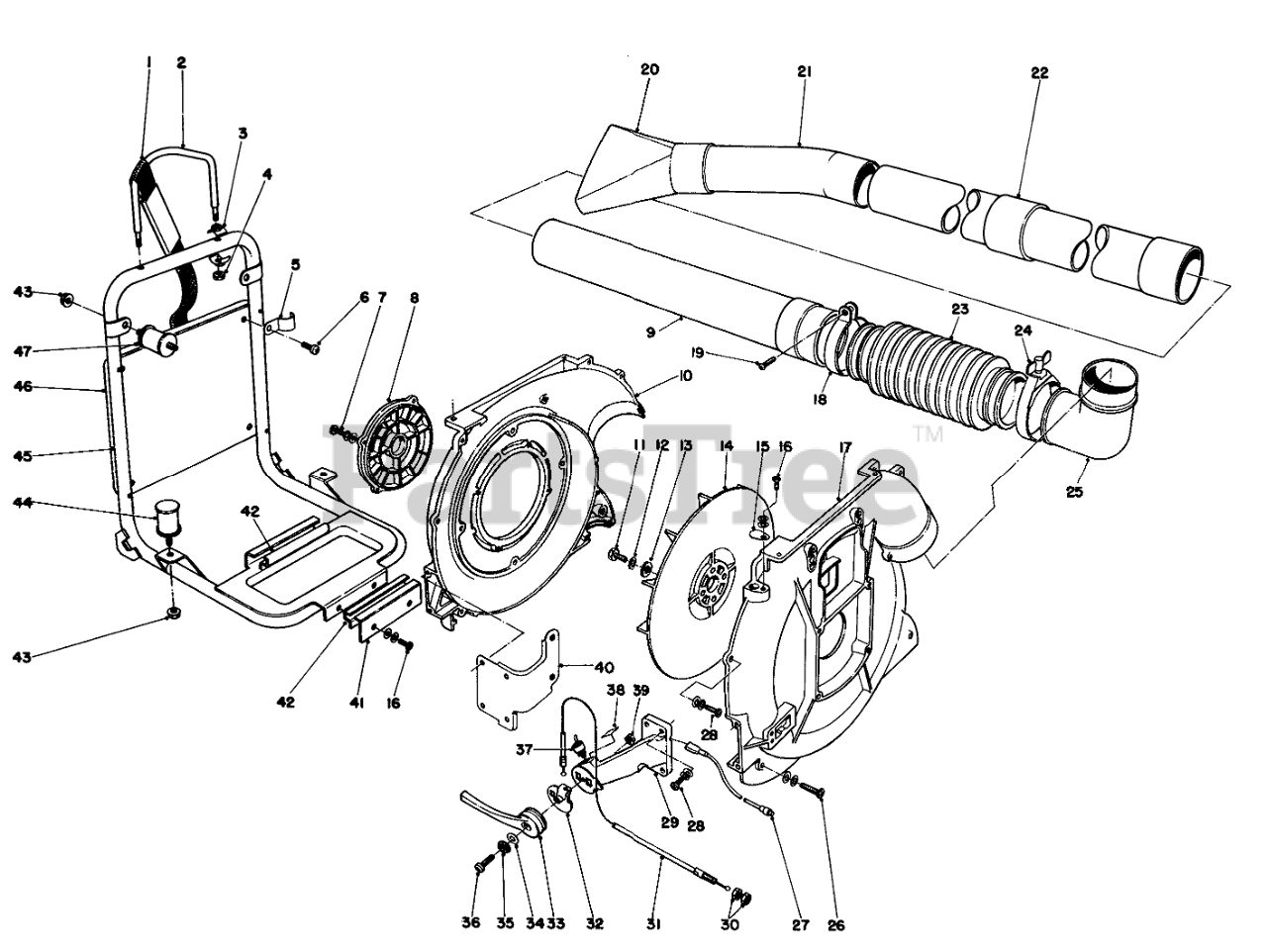

BACK PACK AND BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 40-2610

Shoulder Strap

$

$

Not available

2

Toro 41-3990

Arm

$

$

Not available

3

Toro 414000

Adapter

$

$

Currently unavailable

4

Toro 41-4010

Locknut

$

$

Not available

5

Toro 41-3960

Bracket Cushion

$

$

Not available

6

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 41-5280

Screw

$

$

Not available

8

Toro 46-4590

Grid, Fan Case

$

$

Not available

9

Toro 41-3940

STRAIGHT PIPE/SWIVEL

$

$

Not available

10

Toro 46-4570

Fan Case, Operator Side

$

$

Not available

11

Toro 414800

Bolt

$

$

Currently unavailable

12

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

13

Toro 41-5440

WASHER

$

$

Not available

14

Toro 41-3680

Fan

$

$

Not available

15

Toro 41-3760

Plug

$

$

Not available

16

Toro 41-5190

SCREW

$

$

Not available

17

Toro 41-3700

Fan Case, Starter Side

$

$

Not available

18

Toro 41-3890

Clamp

$

$

Not available

19

Toro 41-5110

Screw

$

$

Not available

20

Toro 41-3870

FAN HD NOZZLE

$

$

Not available

21

Toro 41-3860

CURVED PIPE

$

$

Not available

22

Toro 41-3840

Straight Pipe
(Superseded to 41-3850)

$

$

Not available

23

Toro 41-3820

FLEXIBLE PIPE

$

$

Not available

24

Toro 41-3910

CLAMP

$

$

Not available

25

Toro 41-3800

Elbow

$

$

Not available

26

Toro 41-5240

Bolt

$

$

Not available

27

Toro 46-4620

Lead Switch

$

$

Not available

28

Toro 41-5230

Screw

$

$

Not available

29

Toro 41-3510

THROTTLE LEVER BRKT

$

$

Not available

30

Toro 41-5380

Nut

$

$

Not available

31

Toro 41-3260

THROTTLE CABLE

$

$

Not available

32

Toro 41-3520

BRKT

$

$

Not available

33

Toro 46-4610

THROTTLE LEVER

$

$

Not available

34

Toro 41-5450

Washer
(Superseded to 3256-60)

$1.99

$

Usually ships in 3-6 days

0

35

Toro 41-3550

Washer

$

$

Not available

36

Toro 41-5130

Screw
(Superseded to 41-5300)

$

$

Not available

37

Toro 41-2640

SWITCH

$48.99

$

Usually ships in 3-6 days

0

38

Toro 41-4750

STOP SWITCH DECAL

$

$

Not available

39

Toro 41-5360

Nut

$

$

Not available

40

Toro 46-4550

Bracket

$

$

Not available

41

Toro 41-1710

Bracket-Fuel Tank

$

$

Not available

42

Toro 41-1740

Cushion-Fuel Tank
(Superseded to 71-1130)

$

$

Not available

43

Toro 46-4600

Nut

$

$

Not available

44

Toro 41-3790

Cushion

$

$

Not available

45

Toro 41-3950

Frame, Back Pack

$

$

Not available

46

Toro 40-5170

Back Pack Pad

$

$

Not available

47

Toro 41-3780

Cushion

$

$

Not available

Toro 44-7400

Ear Plug Kit

Note: Not illustrated

$

$

Not available
