30940 - Toro 40cc Backpack Blower (SN: 001000001 - 001999999) (1981) BACK PACK AND BLOWER HOUSING ASSEMBLY Parts Diagram

40cc Backpack Blower

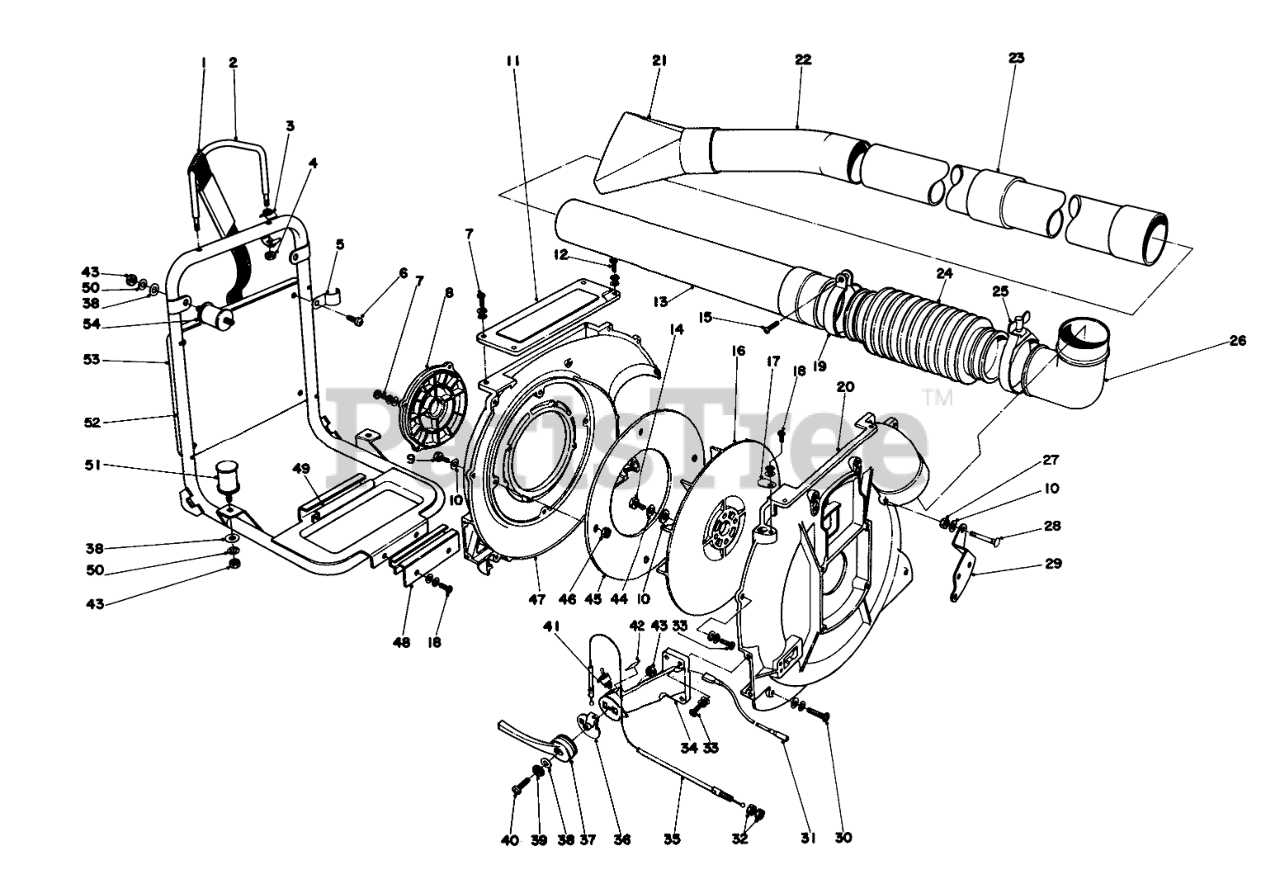

BACK PACK AND BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 40-2610

Shoulder Strap

$

$

Not available

2

$

$

Not available

3

Toro 41-4000

Adapter

$

$

Not available

4

Toro 41-4010

Locknut

$

$

Not available

5

Toro 41-3960

Bracket Cushion

$

$

Not available

6

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 41-5280

Screw

$

$

Not available

8

Toro 41-3740

Grid, Fan Case

$

$

Not available

9

$

$

Not available

10

Toro 41-5440

WASHER

$

$

Not available

11

Toro 41-3770

Plate

$

$

Not available

12

Toro 41-5290

Screw

$

$

Not available

13

Toro 41-3940

STRAIGHT PIPE/SWIVEL

$

$

Not available

14

$

$

Not available

15

Toro 41-5110

Screw

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

Toro 41-5190

SCREW

$

$

Not available

19

Toro 41-3890

Clamp

$

$

Not available

20

Toro 41-3700

Fan Case, Starter Side

$

$

Not available

21

Toro 41-3870

FAN HD NOZZLE

$

$

Not available

22

Toro 41-3860

CURVED PIPE

$

$

Not available

23

Toro 41-3840

Straight Pipe
(Superseded to 41-3850)

$

$

Not available

24

Toro 41-3820

FLEXIBLE PIPE

$

$

Not available

25

Toro 41-3910

CLAMP

$

$

Not available

26

Toro 41-3800

Elbow

$

$

Not available

27

Toro 41-3930

Capnut

$

$

Not available

28

Toro 41-3920

Bolt, Elbow

$

$

Not available

29

Toro 41-2070

Bracket, Muffler Cover

$

$

Not available

30

$

$

Not available

31

Toro 41-2320

Lead, Switch

$

$

Not available

32

$

$

Not available

33

Toro 41-5230

Screw

$

$

Not available

34

Toro 41-3510

THROTTLE LEVER BRKT

$

$

Not available

35

Toro 41-3260

THROTTLE CABLE

$

$

Not available

36

$

$

Not available

37

Toro 41-3320

Throttle Lever
(Superseded to 46-4610)

$

$

Not available

38

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

39

Toro 41-3550

Washer

$

$

Not available

40

Toro 41-5130

Screw
(Superseded to 41-5300)

$

$

Not available

41

Toro 41-2640

SWITCH

$55.99

$

Usually ships in 3-6 days

0

42

Toro 41-4750

STOP SWITCH DECAL

$

$

Not available

43

$

$

Not available

44

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

45

Toro 41-3750

Separator

$

$

Not available

46

$

$

Not available

47

Toro 41-3690

Fan Case

$

$

Not available

48

Toro 41-1710

Bracket-Fuel Tank

$

$

Not available

49

Toro 41-1740

Cushion-Fuel Tank
(Superseded to 71-1130)

$

$

Not available

50

Toro 41-5500

Washer

$

$

Not available

51

Toro 41-3790

Cushion

$

$

Not available

52

Toro 41-3950

Frame, Back Pack

$

$

Not available

53

Toro 40-5170

Back Pack Pad

$

$

Not available

54

Toro 41-3780

Cushion

$

$

Not available
