30934 - Toro 36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 314000001 - 314999999) (2014) DRIVE LEVER ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

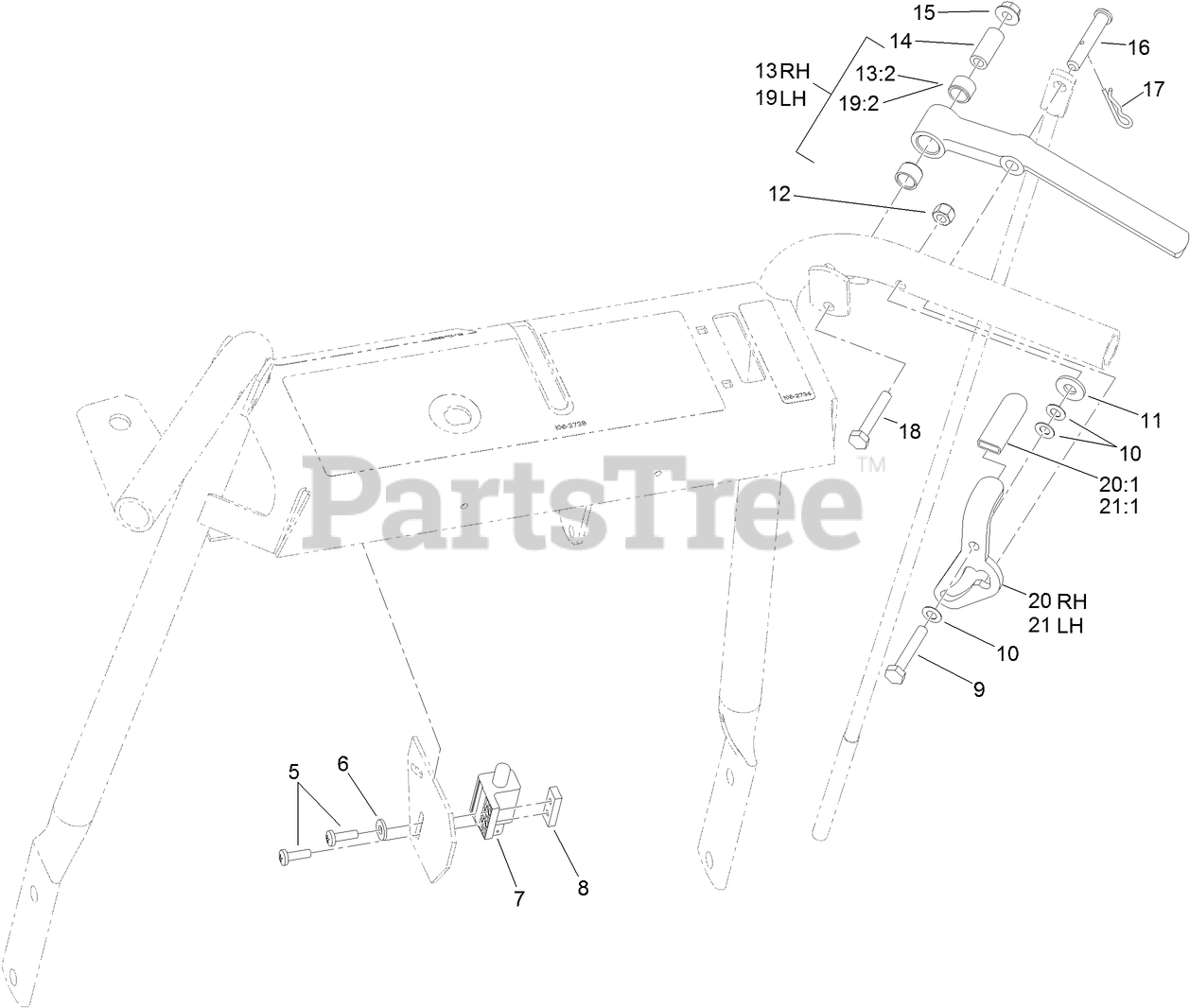

DRIVE LEVER ASSEMBLY Parts Diagram

  • Title

5

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

8

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

9

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

13

Toro 103-0219

RH Drive Lever ASM

$158.99

$

Usually ships in 3-6 days

0

13:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

14

Toro 1-603749

Bushing-Lever, Drive

$7.99

$

In Stock, Qty 5

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

16

Toro 1-613055

Pin-Clevis

$8.99

$

In Stock, only 2 left!

0

17

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

18

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

19

Toro 103-0218

LH Drive Lever ASM

$158.99

$

Usually ships in 3-6 days

0

19:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

20

Toro 1-612168

RH LATCH and GRIP ASM
(Superseded to 137-9514)

$45.99

$

Usually ships in 3-6 days

0

20:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

21

Toro 1-612167

LH LATCH GRIP ASM
(Superseded to 137-9515)

$44.99

$

Usually ships in 3-6 days

0

21:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0
