30930 - Toro 21cc Handheld Blower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

21cc Handheld Blower

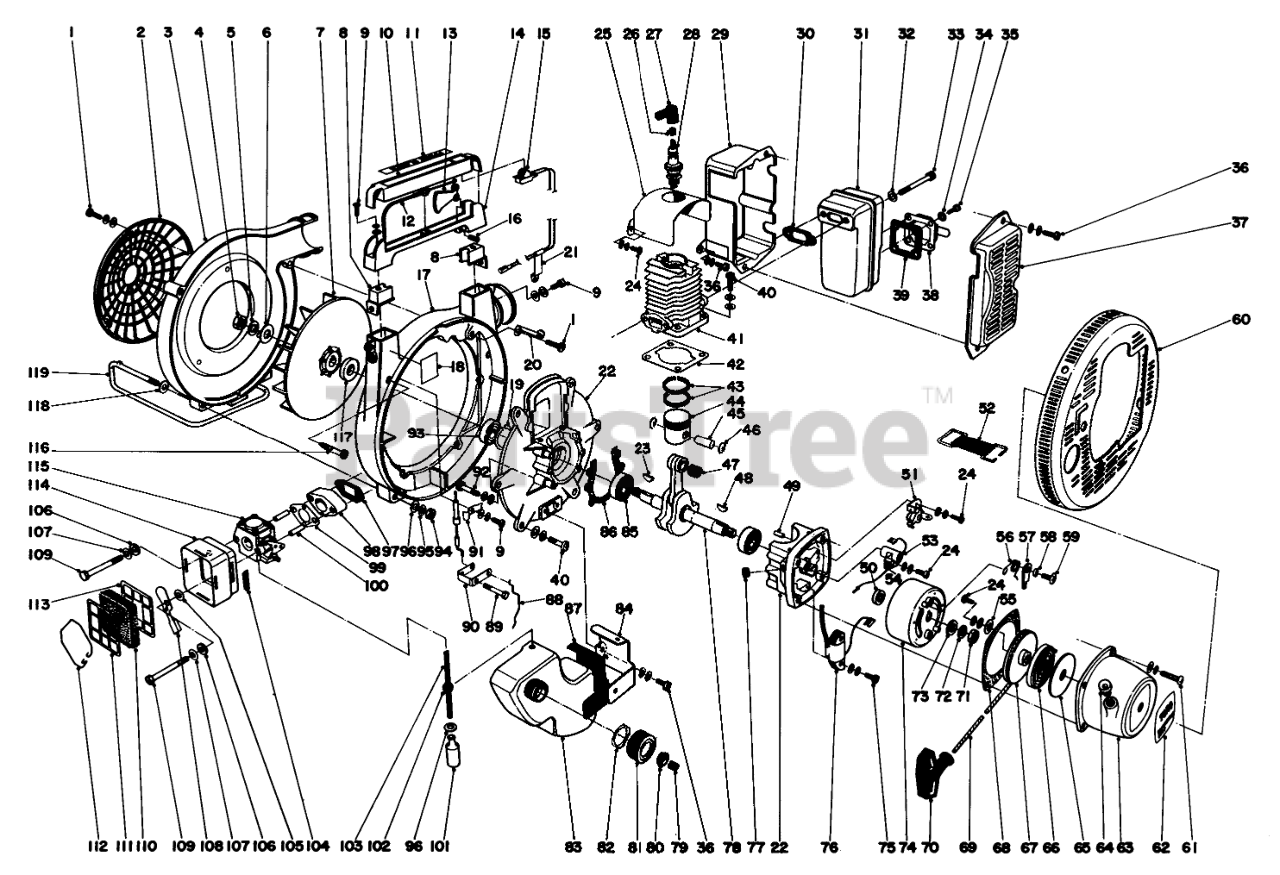

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-5310

Screw W/washers

$

$

Not available

2

Toro 41-3730

Grid Fan Casing

$

$

Not available

3

Toro 41-3720

Fan Case

$

$

Not available

4

Toro 41-5400

Nut

$

$

Not available

5

Toro 41-5520

Spring Washer

$

$

Not available

6

Toro 41-6130

Washer

$

$

Not available

7

Toro 41-3670

Fan

$

$

Not available

8

Toro 41-4100

Rubber Cushion

$

$

Not available

9

Toro 41-5210

SCREW

$

$

Not available

10

Toro 41-4130

Grip, Right Handle

$

$

Not available

11

Toro 41-5790

Decal-Power Blower

$

$

Not available

12

Toro 41-3270

Throttle Cable

$

$

Not available

13

Toro 41-3330

Throttle Trigger

$

$

Not available

14

Toro 41-4110

RIGHT HANDLE

$

$

Not available

15

Toro 41-2630

Stop Switch

$

$

Not available

16

Toro 41-5340

Spring Pin

$

$

Not available

17

Toro 41-3710

Fan Case

$

$

Not available

18

Toro 41-4770

Decal-Choke

$

$

Not available

19

Toro 41-5580

Circlip

$

$

Not available

20

Toro 41-0630

Holder, Cover

$

$

Not available

21

Toro 41-2560

Cord Clip

$

$

Not available

22

Toro 41-0230

Crankcase Set (Incl. Ref. #49)

$

$

Not available

23

Toro 41-4490

Woodruff Key

$

$

Not available

24

Toro 41-5160

SCREW

$

$

Not available

25

Toro 41-0590

Cylinder Cover

$

$

Not available

26

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

27

Toro 41-2520

Cap-Spark Plug

$

$

Not available

28

Toro 41-2500

Spark Plug
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 41-2250

Muffler Cover

$

$

Not available

30

Toro 41-1920

Gasket, Muffler

$

$

Not available

31

Toro 41-1960

Muffler

$

$

Not available

Toro 41-1950

Muffler Assembly (Incl. Ref. #31, 34, 35, 38, &39)

Note: Not illustrated

$

$

Not available

32

Toro 41-5440

WASHER

$

$

Not available

33

Toro 41-4960

Bolt

$

$

Not available

34

Toro 41-5530

Washer

$

$

Not available

35

Toro 41-5020

Screw

$

$

Not available

36

Toro 41-5190

SCREW

$

$

Not available

37

Toro 41-2060

Muffler Cover

$

$

Not available

38

Toro 41-2000

Muffler Lid

$

$

Not available

39

Toro 41-1990

Gasket, Muffler Lid

$

$

Not available

40

Toro 41-5220

Screw W/washers

$

$

Not available

41

Toro 41-0500

Cylinder

$

$

Not available

42

Toro 41-0490

Gasket, Cylinder Base

$

$

Not available

43

Toro 41-0070

PISTON RING

$

$

Not available

44

Toro 41-0040

Piston

$

$

Not available

45

Toro 41-0130

Piston Pin
(Superseded to 46-3830)

$

$

Not available

46

Toro 41-0160

Circlip, Piston Pin

$

$

Not available

47

Toro 41-2730

Needle Bearing

$

$

Not available

48

Toro 41-6160

Woodruff Key

$

$

Not available

49

Toro 41-0330

Knockpin

$

$

Not available

50

Toro 41-0290

Oilseal

$

$

Not available

51

Toro 41-2440

CONTACT BREAKER SET

$

$

Not available

52

Toro 41-0650

Band

$

$

Not available

53

Toro 41-2470

Condenser

$

$

Not available

54

Toro 41-2480

Oiler

$

$

Not available

55

Toro 41-2920

Washer

$

$

Not available

56

Toro 41-3150

Ratchet Spring

$

$

Not available

57

Toro 41-2980

Ratchet

$

$

Not available

58

Toro 41-3240

RATCHET SPACER

$

$

Not available

59

Toro 41-2960

Screw

$

$

Not available

60

Toro 41-0640

Cover

$

$

Not available

61

Toro 41-5170

SCREW

$

$

Not available

62

Toro 41-5770

Decal Commercial Duty

$

$

Not available

63

Toro 41-2870

Starter Case

$

$

Not available

64

Toro 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

65

Toro 41-3020

SIDE PLT

$

$

Not available

66

Toro 41-3000

REWIND SPRING

$

$

Not available

67

Toro 41-2850

RECOIL DRUM

$

$

Not available

68

Toro 41-0440

Gasket, Starter Case

$

$

Not available

69

Toro 41-3040

Starter Rope
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

70

Toro 41-3080

Starter Handle
(Superseded to 34-7930)

$

$

Not available

71

Toro 41-5390

NUT

$

$

Not available

72

Toro 41-5510

Spring Washer

$

$

Not available

73

Toro 41-6170

Washer

$

$

Not available

74

Toro 41-2490

Flywheel

$

$

Not available

75

Toro 41-5180

Screw

$

$

Not available

76

Toro 41-2450

IGNITION COIL

$

$

Not available

77

Toro 41-2410

Grommet

$

$

Not available

78

Toro 41-0200

Crankshaft Assembly

$

$

Not available

79

Toro 41-1700

Filter

$

$

Not available

80

Toro 41-1690

Check Valve
(Superseded to 43-9940)

$

$

Not available

81

Toro 41-1540

Fuel Cap Assembly(Incl. Ref. #79, 80, & 82)
(Superseded to 43-9940)

$

$

Not available

82

Toro 41-1600

FUEL TANK CAP GASKET

$

$

Not available

83

Toro 41-1560

Fuel Tank

$

$

Not available

84

Toro 41-1720

Retainer, Fuel Tank

$

$

Not available

85

Toro 41-5670

Bearing

$

$

Not available

86

Toro 41-0350

Gasket, Crankcase

$

$

Not available

87

Toro 41-1750

Cushion

$

$

Not available

88

Toro 41-3360

Throttle Connecting Rod

$

$

Not available

89

Toro 41-3530

Bolt

$

$

Not available

90

Toro 41-3380

Arm, Throttle Lever

$

$

Not available

91

Toro 41-3470

Clip

$

$

Not available

92

Toro 41-5250

Screw

$

$

Not available

93

Toro 41-0280

Oilseal

$

$

Not available

94

Toro 41-5360

Nut

$

$

Not available

95

Toro 41-5500

Washer

$

$

Not available

96

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

97

Toro 41-1200

GASKET

$

$

Not available

98

Toro 41-1280

Insulator

$

$

Not available

99

Toro 41-1270

Gasket

$

$

Not available

100

Toro 41-1300

Carburetor Spacer

$

$

Not available

101

Toro 41-1660

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

102

Toro 41-1880

GROMMET

$

$

Not available

103

Toro 41-1820

Fuel Hose
(Superseded to 41-1830)

$

$

Not available

104

Toro 41-3640

Grommet

$

$

Not available

105

Toro 41-3610

CHOKE SHUTTER SPACER

$

$

Not available

106

Toro 41-5440

WASHER

$

$

Not available

107

Toro 41-1340

Spacer, Carburetor

$

$

Not available

108

Toro 41-3580

Choke Shutter

$

$

Not available

109

Toro 41-1320

Bolt

$

$

Not available

110

Toro 41-1420

Air Filter

$

$

Not available

111

Toro 41-1510

Air Cleaner Grid

$

$

Not available

112

Toro 41-1490

Spring, Air Cleaner

$

$

Not available

113

Toro 41-1450

Air Cleaner Grid

$

$

Not available

114

Toro 41-1390

Case, Air Cleaner (Incl . Ref. #104)

$

$

Not available

115

Toro 41-0670

Carburetor Assembly

$

$

Not available

116

Toro 41-5320

Screw

$

$

Not available

117

Toro 41-0100

Spacer

$

$

Not available

118

Toro 41-4090

WASHER

$

$

Not available

119

Toro 41-4070

Stand

$

$

Not available

Toro 41-2840

Recoil Starter Assembly(Incl. Ref. #24, 55, 63 Thru 67, & 69-70)

Note: Not illustrated

$

$

Not available

Toro 41-9330

Spark Arrestor-Optional

Note: Not illustrated

$

$

Not available

Toro 41-9300

Muffler Screen

Note: Not illustrated

$

$

Not available

Toro 41-2210

Screen Holder

Note: Not illustrated

$

$

Not available

Toro 41-5010

Screw

Note: Not illustrated

$

$

Not available
