30922 R - Troy-Bilt Two Bag Hopper (SN: 0100101 - 0199999) TWO BAG HOPPER Parts Diagram

Two Bag Hopper

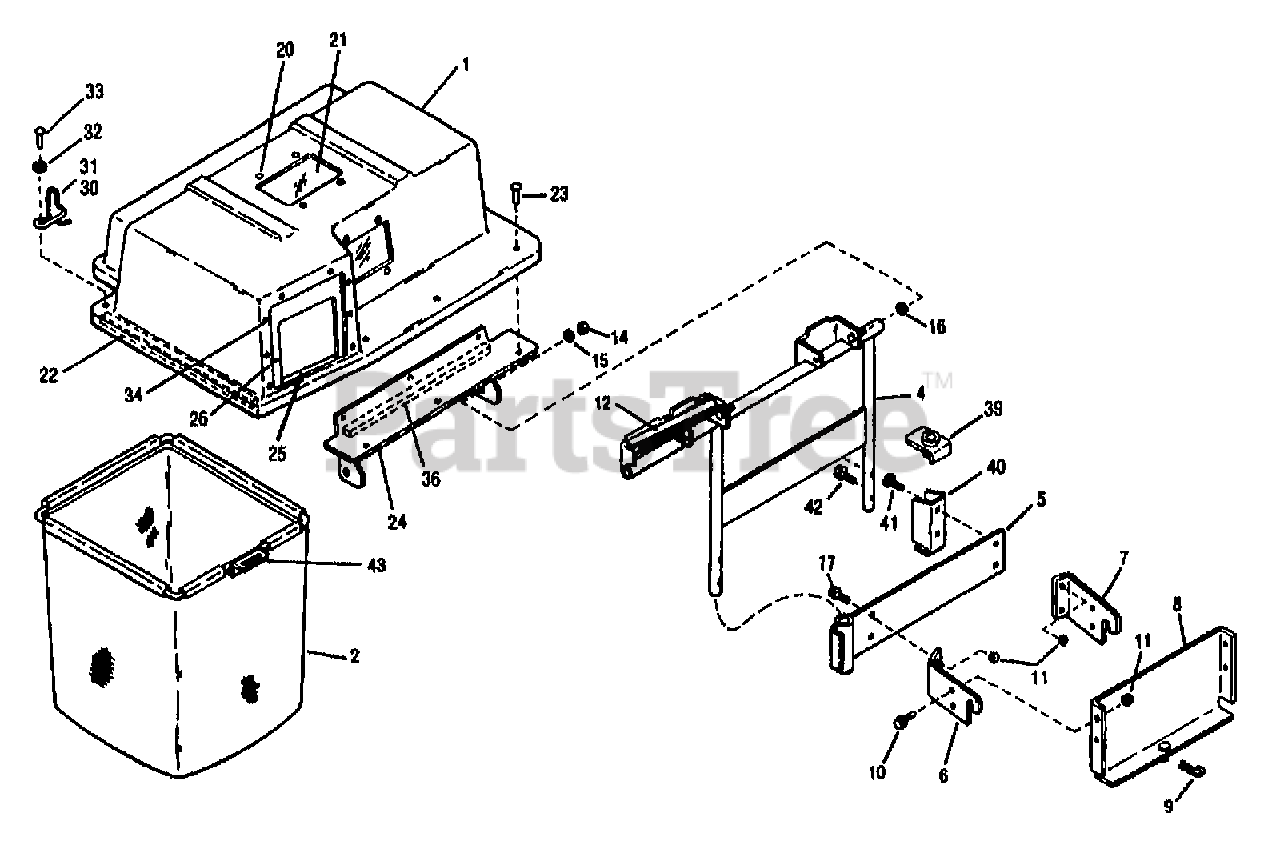

TWO BAG HOPPER Parts Diagram

  • Title
1

Troy-Bilt 1755353

ASSM-CVR GRASS BAG

$

$

Currently unavailable

2

MTD 1756717

ASSM-GRASS BAG

$

$

Not available

4

MTD 1754979001

ASSM-BAG SUPPORT

$

$

Not available

5

MTD 1756750001

ASSM-SUPPORT PLATE

$

$

Not available

6

Troy-Bilt 1747983001

PLATE-RIGHT HITCH

$

$

Currently unavailable

7

Troy-Bilt 1747984001

PLATE-HITCH LH

$

$

Currently unavailable

8

Troy-Bilt 1748286001

ASSM-SUPPORT HITCH

$

$

Currently unavailable

9

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

10

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1755360

SEAL-COVER 9.5"

$

$

Currently unavailable

14

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

16

MTD 1741195

WASHER-.87X.34X.06 NYLON

$

$

Not available

17

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

?18

MTD 1750148001

BRKT-ANGLE

$

$

Not available

?19

MTD 1751983

COVER-SEAL

$

$

Not available

20

Troy-Bilt 1748369

RIVET-POP

$

$

Currently unavailable

21

MTD 1748349

WINDOW

$

$

Not available

22

MTD 1755359

SEAL-COVER

$

$

Not available

23

Troy-Bilt 1185878

RIVET-POP 3/16"DIA
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

24

MTD 1755317001

ASSM-HINGE SUPPORT

$

$

Not available

?25

MTD 1754982001

CHUTE REINFORCEMENT

$

$

Not available

26

MTD 1755309

GASKET-CHUTE

$

$

Not available

?27

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

?28

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

?29

MTD 1748346

SCREEN

$

$

Not available

30

MTD 1755307

COVER-LOCK RH

$

$

Not available

31

MTD 1755308

COVER-LOCK LH

$

$

Not available

32

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

33

MTD 1728772

RIVET-POP 3/16X1/2

$

$

Not available

34

Troy-Bilt 1186059

RIVET-POP .125

$

$

Currently unavailable

36

MTD 1755358

SEAL-COVER

$

$

Not available

?38

Troy-Bilt 1737650

RIVET-POP
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 1756753

ASSM-COLLAR STOP

$

$

Currently unavailable

40

Troy-Bilt 1756663001

SUPPORT-TUBE

$

$

Currently unavailable

41

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

42

Troy-Bilt 1723037

SCR
(Superseded to 710-0623)

$4.49

$

In Stock, only 2 left!

0

43

MTD 1752529001

ASSM-FRAME GRASSBAG

$

$

Not available

?201

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
