30920 - Toro 30cc Straight Shaft Trimmer (SN: 000000001 - 000999999) (1980) TAP & TRIM HEAD NO. 41-6220 (OPTIONAL) Parts Diagram

30cc Straight Shaft Trimmer

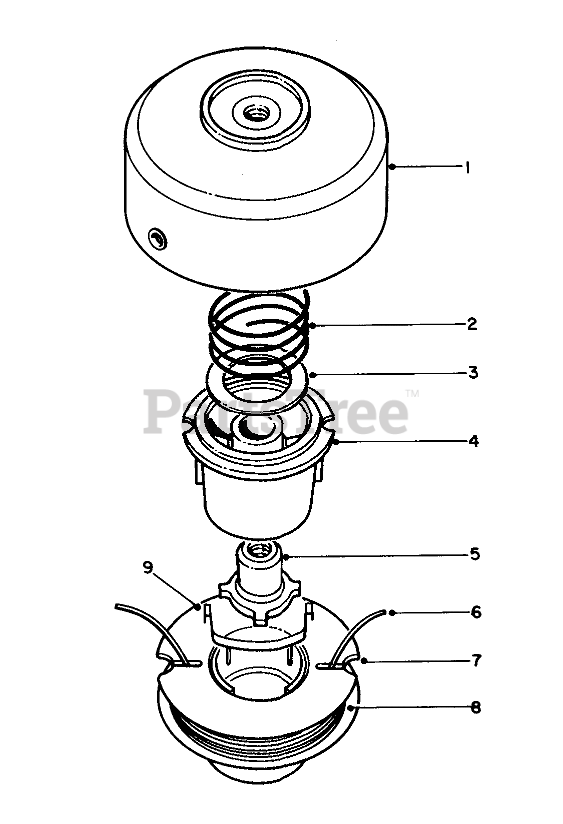

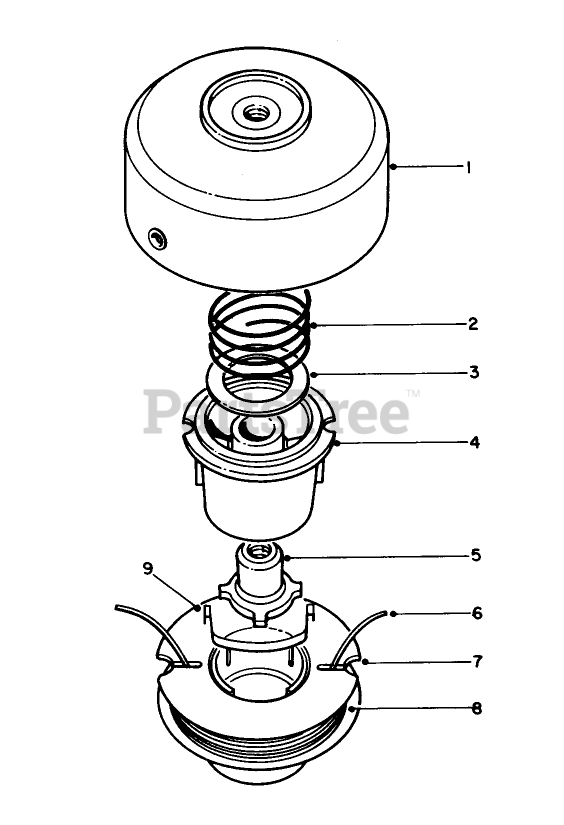

TAP & TRIM HEAD NO. 41-6220 (OPTIONAL) Parts Diagram

  • Title
1

Toro 41-6230

Drum Assembly

$

$

Not available

2

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

3

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

4

Toro 33-6230

SPOOL CORE

$

$

Not available

5

Toro 33-6470

LH DRIVER

$

$

Not available

6

Toro 41-6820

#1 BULK SPOOL .095

$42.99

$

Usually ships in 3-6 days

0

Toro 41-6830

3 Lb. Line Bulk (.095)
(Superseded to 41-6820)

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0

7

Toro 41-6870

Prewound Spool
(Superseded to 83-4660)

$

$

Not available

Toro 41-6400

Spool Pack (4 Prewound Spools)

Note: Not illustrated

$

$

Currently unavailable

8

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

9

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available
