30920 - Toro 30cc Straight Shaft Trimmer (SN: 000000001 - 000999999) (1980) DRIVE SHAFT & TRIMMER HEAD ASSEMBLY Parts Diagram

30cc Straight Shaft Trimmer

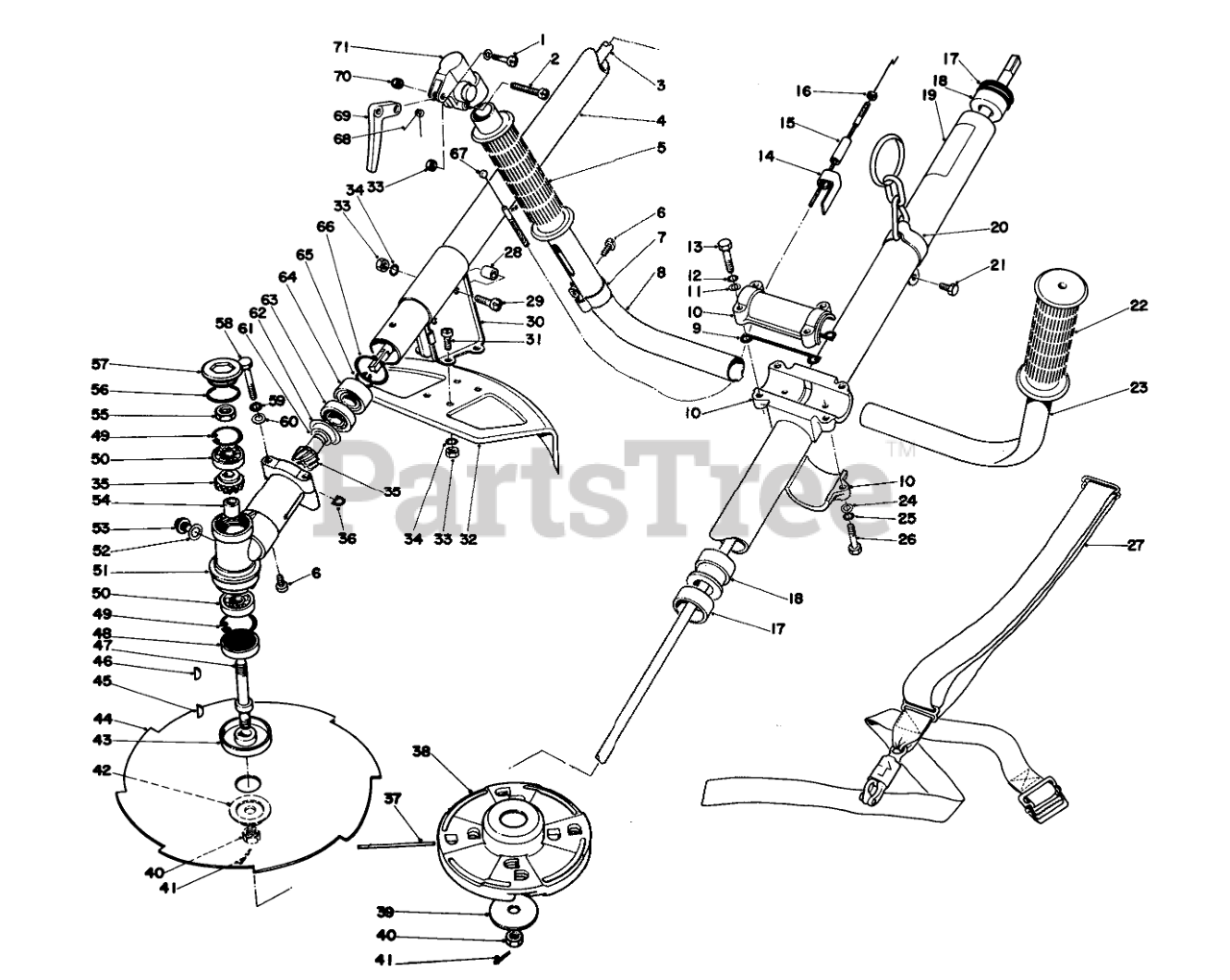

DRIVE SHAFT & TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 41-3460

Screw

$

$

Not available

2

Toro 41-5140

Screw

$

$

Not available

3

Toro 41-4270

Shaft-Driving

$

$

Not available

4

Toro 41-4350

Housing, Driving Shaft (Incl. Ref. #17 & 18)

$

$

Not available

5

Toro 235-25

Right Hand Grip

$

$

Not available

6

Toro 41-5190

SCREW

$

$

Not available

7

Toro 41-3450

Band

$

$

Not available

8

Toro 41-4120

Handle

$

$

Not available

9

Toro 41-4240

Spacer

$

$

Not available

10

Toro 41-4200

Bracket, Handle (Incl. Ref. #9-13 & 24-26)

$

$

Not available

11

Toro 41-5440

WASHER

$

$

Not available

12

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

13

Toro 41-4810

Bolt

$

$

Not available

14

Toro 41-3480

Clamp

$

$

Not available

15

Toro 41-3540

Tube

$

$

Not available

16

Toro 41-5380

Nut

$

$

Not available

17

Toro 41-4310

Bushing

$

$

Not available

18

Toro 41-4320

Ring

$

$

Not available

19

Toro 41-6590

Decal Warning

$

$

Not available

20

Toro 41-4030

Swivel Hook

$

$

Not available

21

Toro 41-5090

Screw

$

$

Not available

22

Toro 235-24

LH GRIP

$

$

Not available

23

Toro 41-4170

Handle

$

$

Not available

24

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

25

Toro 41-5500

Washer

$

$

Not available

26

Toro 41-4860

Bolt

$

$

Not available

27

Toro 33-7630

Shoulder Strap Deluxe

$

$

Not available

Toro 40-2620

Shoulder Strap W/Ring
(Superseded to 46-2950)

Note: Not illustrated

$

$

Not available

28

Toro 41-4670

Spacer

$

$

Not available

29

Toro 41-5100

Screw

$

$

Not available

30

Toro 41-4660

Bracket-Head Guard

$

$

Not available

31

Toro 41-5070

SCREW

$

$

Not available

32

Toro 41-4650

Shield

$

$

Not available

Toro 41-4640

Head Guard Assembly (Incl. Ref. #28-34)

Note: Not illustrated

$

$

Not available

33

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

34

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

35

Toro 41-4380

Gear Set

$

$

Not available

36

Toro 41-4370

Spacer

$

$

Not available

37

Toro 40-3180

Cotter Pin

$

$

Currently unavailable

Toro 40-3190

Filament Line, Pkg. of 100

Note: Not illustrated

$

$

Currently unavailable

38

Toro 33-6400

Cutter Head
(Superseded to 46-2810)

$

$

Not available

39

Toro 41-4430

WASHER

$

$

Not available

40

Toro 41-5410

NUT

$9.49

$

Usually ships in 3-6 days

0

41

Toro 41-5330

Split Pin
(Superseded to 327-23)

$6.49

$

Usually ships in 3-6 days

0

Toro 41-6880

Cotter Pin, Pkg. of 10

Note: Not illustrated

$

$

Not available

42

Toro 41-6890

Adapter-Blade
(Superseded to 41-4440)

$100.99

$

Usually ships in 3-6 days

0

43

Toro 41-4420

Plate-Blade Fixing

$

$

Not available

44

Toro 40-3160

Weed Blade

$

$

Not available

Toro 40-3170

80 Tooth Blade
(Superseded to 51-1250)

Note: Not illustrated

$115.99

$

Usually ships in 3-6 days

0

45

Toro 41-4490

Woodruff Key

$

$

Not available

46

Toro 41-0210

Woodruff Key

$

$

Not available

47

Toro 41-4400

Shaft, Power Take Off

$

$

Not available

48

Toro 41-0270

Oil Seal

$

$

Not available

49

Toro 41-5570

Circlip

$

$

Not available

50

Toro 41-5650

Ball Bearing

$

$

Not available

51

Toro 41-4520

Housing Gear

$

$

Not available

52

Toro 41-4580

Gasket

$

$

Not available

53

Toro 41-4570

Plug

$

$

Not available

54

Toro 41-4450

Spacer

$

$

Not available

55

Toro 41-5400

Nut

$

$

Not available

56

Toro 41-4560

O-Ring

$

$

Not available

57

Toro 41-4550

Lid, Gear Housing

$

$

Not available

58

Toro 41-4820

Bolt

$

$

Not available

59

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

60

Toro 41-5440

WASHER

$

$

Not available

61

Toro 41-4470

Washer

$

$

Not available

62

Toro 41-4460

Washer

$

$

Not available

63

Toro 41-5600

Ball Bearing

$

$

Not available

64

Toro 41-5620

Ball Bearing

$

$

Not available

65

Toro 41-5550

Circlip

$

$

Not available

66

Toro 41-5560

Circlip

$

$

Not available

67

Toro 41-3280

Throttle Cable

$

$

Not available

68

Toro 41-3420

Return Spring

$

$

Not available

69

Toro 41-3340

THROTTLE LEVER

$

$

Not available

70

Toro 41-4250

Nut

$

$

Not available

71

Toro 41-3310

Bracket Throttle Trigger

$

$

Not available

Toro 41-6580

Gear Housing Assembly (Incl. Ref. #6, 35-36, 39, 40-43 & 45-46)

Note: Not illustrated

$

$

Currently unavailable
