30920 - Toro 30cc Straight Shaft Trimmer (SN: 000000001 - 000999999) (1980) CARBURETOR ASSEMBLY Parts Diagram

30cc Straight Shaft Trimmer

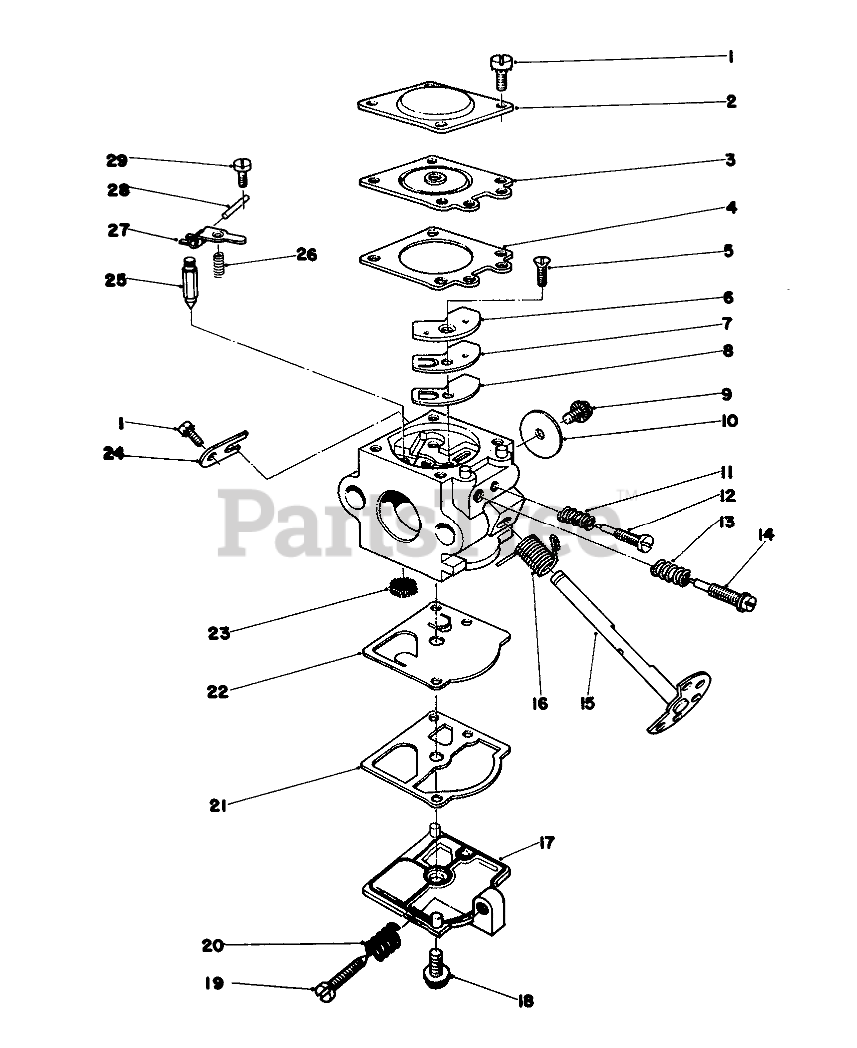

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 41-1070

Screw

$

$

Not available

2

Toro 41-1060

Cover, Diaphragm

$

$

Not available

3

Toro 41-1050

METERING DIAPHRAGM

$

$

Not available

4

Toro 41-1040

Gasket, Diaphragm

$

$

Not available

5

Toro 41-1110

Screw-Circuit Plate

$

$

Not available

6

Toro 41-1100

Plate, Circuit

$

$

Not available

7

Toro 41-1090

Diaphragm Circuit Plate

$

$

Not available

8

Toro 41-1080

Gasket-Circuit Plate

$

$

Not available

9

Toro 41-0730

Screw

$

$

Not available

10

Toro 41-0740

Valve Throttle

$

$

Not available

11

Toro 41-0860

Spring, Needle

$

$

Not available

12

Toro 41-0790

Needle, Idle

$

$

Not available

13

Toro 41-0820

Spring, HS Needle

$

$

Not available

14

Toro 41-0840

HIGH SPEED NEEDLE

$

$

Not available

15

Toro 41-0760

Shaft, Throttle

$

$

Not available

16

Toro 41-0720

Spring-Throttle Lever

$

$

Not available

17

Toro 41-0900

Cover, Fuel Pump

$

$

Not available

18

Toro 41-0700

Screw

$

$

Not available

19

Toro 41-0980

Screw, Idle Adjustment

$

$

Not available

20

Toro 41-0960

Spring, Idle Screw

$

$

Not available

21

Toro 41-0920

PUMP GASKET

$

$

Not available

22

Toro 41-0710

Diaphragm Fuel Pump
(Superseded to 62-5800)

$

$

Not available

23

Toro 41-0930

Screen Inlet

$

$

Not available

24

Toro 41-0940

Clip Throttle Shaft

$

$

Not available

25

Toro 41-1010

INLET NEEDLE VALVE

$

$

Not available

26

Toro 41-0870

Spring, Lever

$

$

Not available

27

Toro 41-0880

Lever Metering

$

$

Not available

28

Toro 41-1020

Metering Lever Pin

$

$

Not available

29

Toro 41-1030

Screw-Metering Pin

$

$

Not available

Toro 41-0680

Carburetor Assembly

Note: Not illustrated

$

$

Not available
