30917 R - Troy-Bilt Grass Pump Kit (SN: 0100101 - 0299999) GRASS PUMP KIT Parts Diagram

Grass Pump Kit

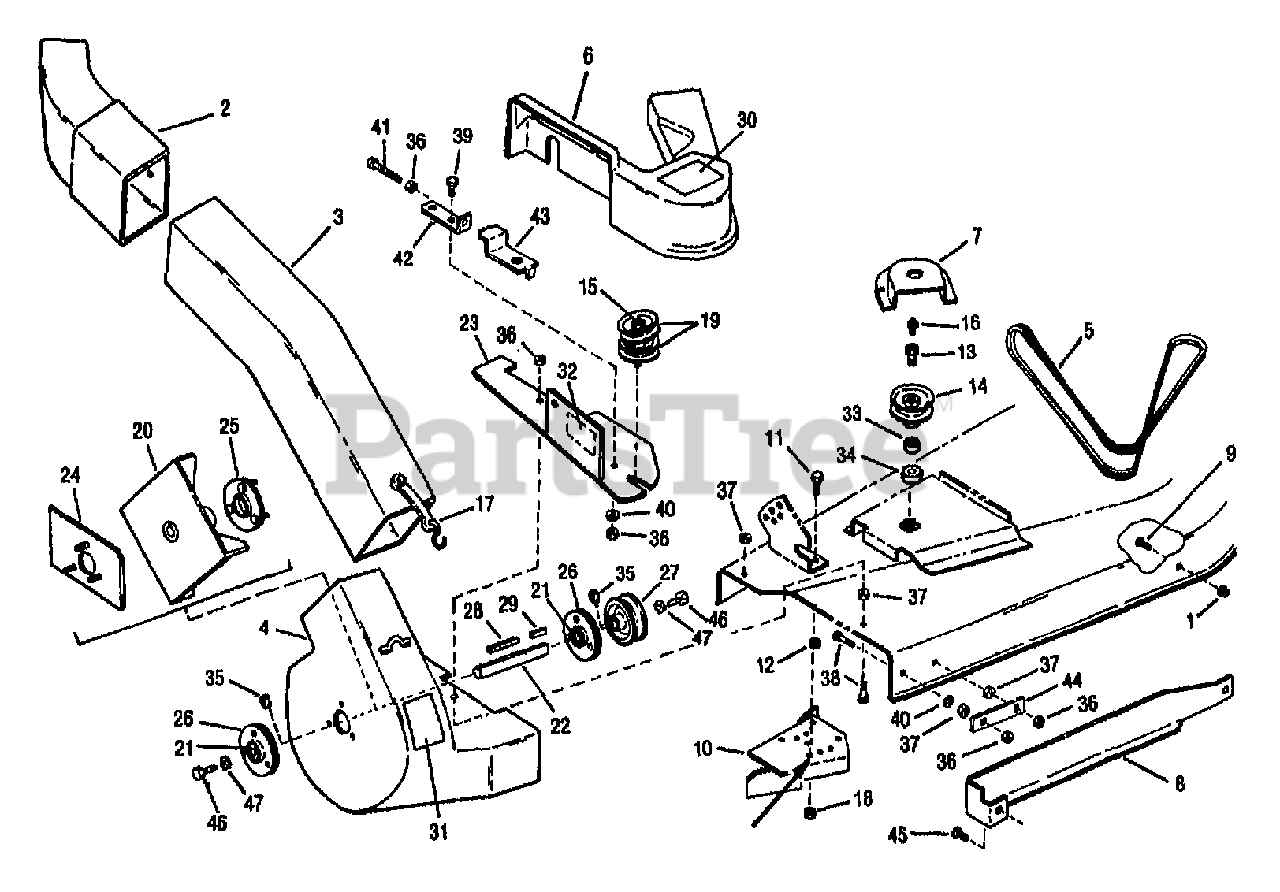

GRASS PUMP KIT Parts Diagram

  • Title

1

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

2

MTD 1755636

CHUTE-UPPER ELBOW

$

$

Not available

3

MTD 1755641

TUBE-LONG

$

$

Not available

4

MTD 1756270

HOUSING

$

$

Not available

5

MTD 1755639

BELT-V

$

$

Not available

6

Troy-Bilt 1756207

GUARD-BELT

$

$

Currently unavailable

7

MTD 1756208

GUARD-BELT

$

$

Not available

8

MTD 1754755STB

BAFFLE-LONG

$

$

Not available

9

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

10

MTD 1754714STB

ASSM-BAFFLE

$

$

Not available

11

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

12

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

13

Troy-Bilt 1755306

LOCK-SHEAVE

$

$

Currently unavailable

14

Troy-Bilt 1755638

PULLEY-DRIVE

$

$

Not available

15

Troy-Bilt 1756271

SHAFT-DOUBLE IDLER

$

$

Currently unavailable

16

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 1756167

ASSM-STRAP

$

$

Currently unavailable

18

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

19

Troy-Bilt 1756196

IDLER-4"

$

$

Currently unavailable

20

MTD 1756197

IMPELLER

$

$

Not available

21

Troy-Bilt 1756198

BEARING

$

$

Currently unavailable

22

MTD 1756272

SHAFT-FAN 3/4"

$

$

Not available

23

MTD 1756275

FRAME-MOUNTING

$

$

Not available

24

MTD 1756273

FLANGETTE-OUTER

$

$

Not available

25

MTD 1756274

FLANGETTE-INNER

$

$

Not available

26

Troy-Bilt 1800418

BEARING

$

$

Not available

27

MTD 1756199

SHEAVE-FAN

$

$

Not available

28

Troy-Bilt 1104335

KEY-.188 SQ X 2.0
(Superseded to 714-0139)

$9.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1108852

KEY-.187 SQ X .75

$

$

Not available

30

MTD 1756485

DECAL-DANGER

$

$

Not available

31

Troy-Bilt 1756484

DECAL-DANGER

$

$

Currently unavailable

32

Troy-Bilt 1756483

DECAL (MT FRAME)

$

$

Currently unavailable

33

Troy-Bilt 1755993

SPACER-.625X.406X.179

$

$

Currently unavailable

34

Troy-Bilt 1755989

SPACER-1.25X.781X.179

$

$

Currently unavailable

35

Troy-Bilt 1708550

WASHER-THRUST

$

$

Not available

36

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

39

Troy-Bilt 1100078

SCR-HH 5/16-18X.875 G5 ZP
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

41

MTD 1756683

SCR-HH 5/16-18X2.75

$

$

Not available

42

MTD 1756685

ASSM-BRKT

$

$

Not available

43

MTD 1756686

BRKT-ADJUSTMENT

$

$

Not available

44

MTD 1758224STB

SUPPORT

$

$

Not available

45

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

46

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 1713233

WASHER-1.25X.343X.059
(Superseded to 736-0362)

$4.49

$

In Stock, only 4 left!

0

Troy-Bilt 183099

WEAR STRIP

$

$

Currently unavailable
