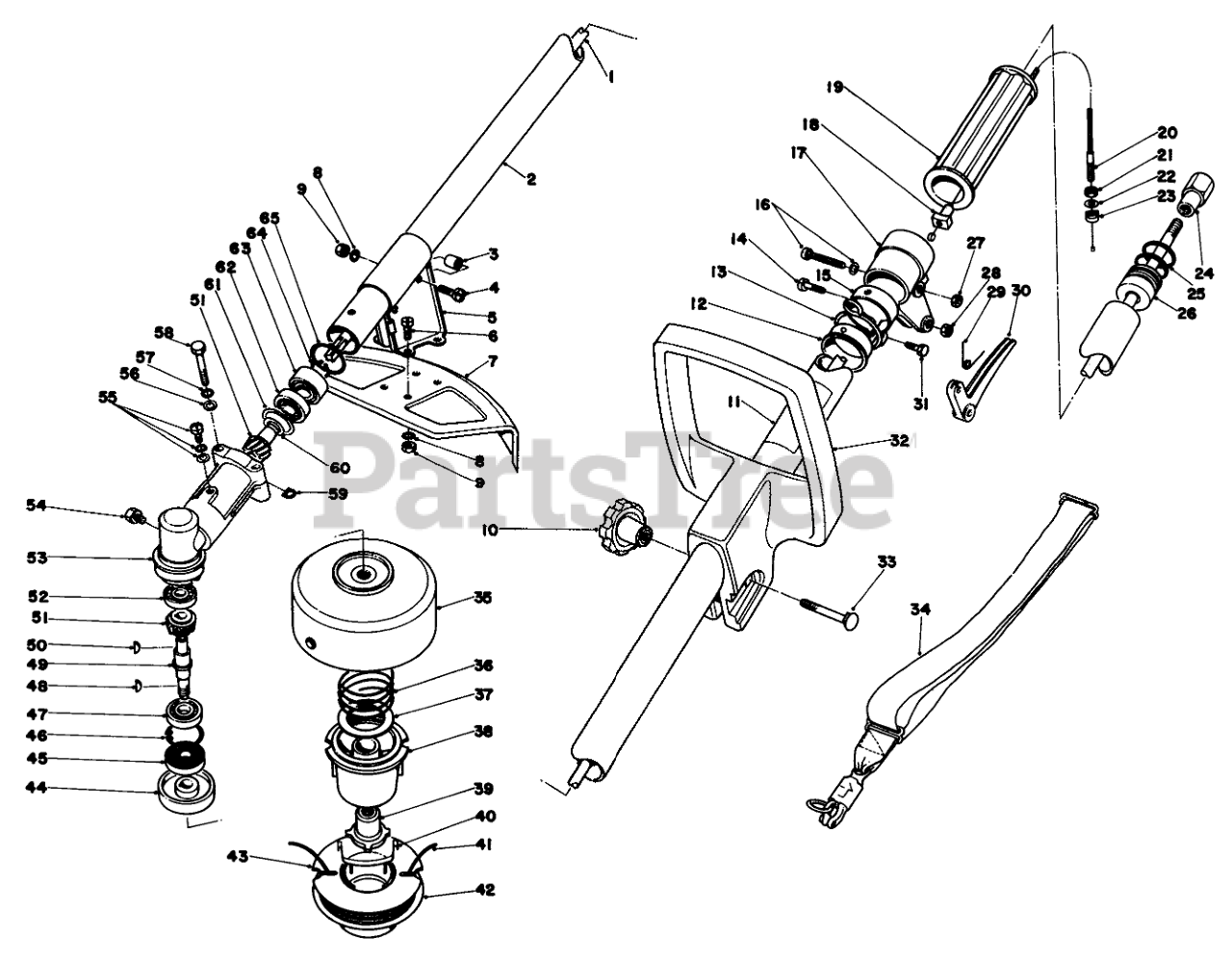

30910 - Toro 21cc Deluxe String Trimmer (SN: 000000001 - 000999999) (1980) DRIVE SHAFT & TRIMMER HEAD ASSEMBLY MODEL 30900 Parts Diagram

21cc Deluxe String Trimmer

DRIVE SHAFT & TRIMMER HEAD ASSEMBLY MODEL 30900 Parts Diagram

  • Title

1

Toro 41-4280

Drive Shaft

$

$

Not available

2

Toro 41-4340

Housing, Drive Shaft

$

$

Not available

3

Toro 41-4670

Spacer

$

$

Not available

4

Toro 41-5100

Screw

$

$

Not available

5

Toro 41-4660

Bracket-Head Guard

$

$

Not available

6

Toro 41-5070

SCREW

$

$

Not available

7

Toro 41-4650

Shield

$

$

Not available

8

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

9

Toro 41-5360

Nut

$

$

Not available

10

Toro 19-4050

KNOB

$18.99

$

In Stock, only 3 left!

0

11

Toro 41-6590

Decal Warning

$

$

Not available

12

Toro 41-4050

Collar

$

$

Not available

13

Toro 41-4060

Swivel Hook

$

$

Not available

14

Toro 41-3460

Screw

$

$

Not available

15

Toro 41-4040

Clamp

$

$

Not available

16

Toro 41-5260

SCREW

$

$

Not available

17

Toro 41-3410

Bracket, Throttle Trigger

$

$

Not available

18

Toro 41-3440

SPACER

$

$

Not available

19

Toro 41-4140

Hand Grip

$

$

Not available

20

Toro 41-3290

THROTTLE CABLE

$

$

Not available

21

Toro 41-5380

Nut

$

$

Not available

22

Toro 41-5460

Washer

$

$

Not available

23

Toro 41-3390

Locknut

$

$

Not available

24

Toro 41-4290

Coupler

$

$

Not available

25

Toro 41-5590

O-Ring

$

$

Not available

26

Toro 41-4300

Bushing

$

$

Not available

27

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

28

Toro 41-4250

Nut

$

$

Not available

29

Toro 41-3430

Spring Return

$

$

Not available

30

Toro 41-3350

Throttle Trigger

$

$

Not available

31

Toro 41-4780

Bolt

$

$

Not available

32

Toro 40-2630

Adjustable Handle

$

$

Not available

33

Toro 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

34

Toro 40-2620

Shoulder Strap W/Ring
(Superseded to 46-2950)

$

$

Not available

Toro 33-7530

Shoulder Belt

Note: Not illustrated

$

$

Not available

35

Toro 41-6230

Drum Assembly

$

$

Not available

36

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

37

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

38

Toro 33-6230

SPOOL CORE

$

$

Not available

39

Toro 33-6470

LH DRIVER

$

$

Not available

40

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

41

Toro 41-6820

#1 BULK SPOOL .095

$45.99

$

Usually ships in 3-6 days

0

Toro 41-6830

3 Lb. Line Bulk (.095)
(Superseded to 41-6820)

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0

42

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$12.99

$

In Stock, only 2 left!

0

43

Toro 41-6870

Line Prewound On Spool (Incl. Item #4042)
(Superseded to 83-4660)

$

$

Not available

Toro 41-6400

Spool Pack (4 Prewound Spools)

Note: Not illustrated

$

$

Currently unavailable

44

Toro 41-4420

Plate-Blade Fixing

$

$

Not available

45

Toro 41-4540

Oilseal

$

$

Not available

46

Toro 41-5580

Circlip

$

$

Not available

47

Toro 41-5660

Ball Bearing

$

$

Not available

48

Toro 41-4490

Woodruff Key

$

$

Not available

49

Toro 41-4410

Shaft-PTO

$

$

Not available

50

Toro 41-0210

Woodruff Key

$

$

Not available

51

Toro 41-4390

Gear Set

$

$

Not available

52

Toro 41-5610

Ball Bearing

$

$

Not available

53

Toro 41-4530

Gear Housing

$

$

Not available

54

Toro 41-4870

Bolt

$

$

Not available

55

Toro 41-5190

SCREW

$

$

Not available

56

Toro 41-5440

WASHER

$

$

Not available

57

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

58

Toro 41-4820

Bolt

$

$

Not available

59

Toro 41-4370

Spacer

$

$

Not available

60

Toro 41-4470

Washer

$

$

Not available

61

Toro 41-4460

Washer

$

$

Not available

62

Toro 41-5600

Ball Bearing

$

$

Not available

63

Toro 41-5620

Ball Bearing

$

$

Not available

64

Toro 41-5550

Circlip

$

$

Not available

65

Toro 41-5560

Circlip

$

$

Not available

Toro 41-6540

Gear Housing Assembly (Incl. Ref. #44 thru 65)

Note: Not illustrated

$

$

Not available

Toro 41-4640

Head Guard Assembly (Incl. Ref. #3 thru 9)

Note: Not illustrated

$

$

Not available
