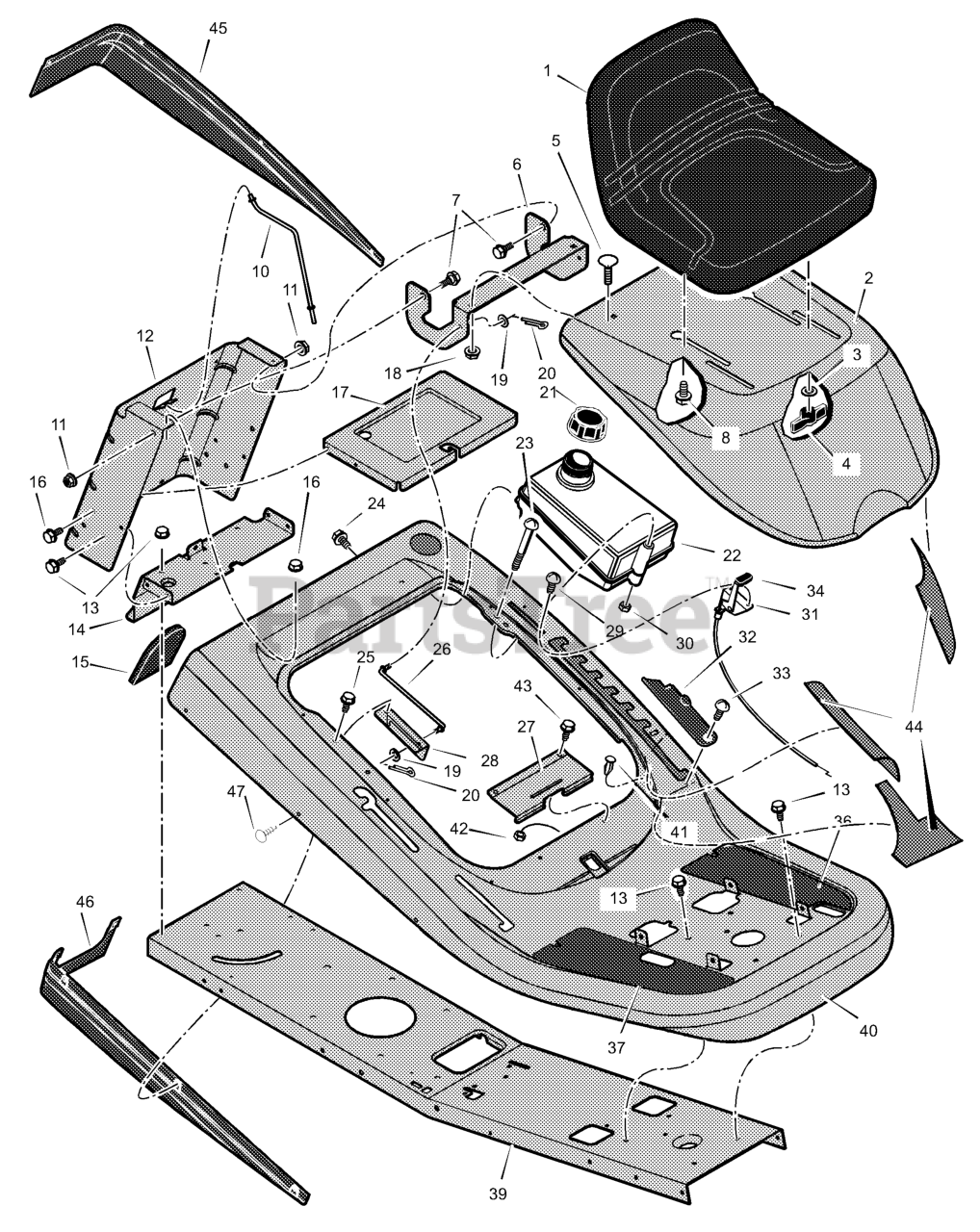

309029x68A - Murray 30" Rear-Engine Riding Mower (2002) Chassis & Hood Parts Diagram

30" Rear-Engine Riding Mower

Chassis & Hood Parts Diagram

  • Title

1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 1401027E700

Hood

$

$

Not available

3

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

5

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

6

Murray 1401036E701MA

Bracket, Hinge
(Superseded to 1401378E701MA)

$66.99

$

In Stock, only 1 left!

0

7

Murray 009X29MA

Bolt, Shoulder

$4.49

$

In Stock, only 1 left!

0

8

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

10

Murray 1401113MA

Rod, Battery

$14.99

$

Usually ships in 2-12 days

0

11

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Murray 1401025E701

Plate, Rear

$131.99

$

Usually ships in 2-12 days

0

13

Murray 26X249MA

Screw

$

$

Not available

14

Murray 1401050E701

Plate, Hitch
(Superseded to 1401050E701MA)

$46.99

$

Usually ships in 2-12 days

0

15

Murray 1401086MA

Cover

$6.49

$

In Stock, only 1 left!

0

16

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

17

Murray 1401076E701MA

TRAY, Battery

$54.99

$

Usually ships in 2-12 days

0

18

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Murray 017X37MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

20

Murray 0031X6MA

Pin, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Murray 092317MA

Cap, Fuel Tank

Note: (Included with Ref. No. 22)

$10.99

$

In Stock, Qty 7

0

22

Murray 7601040

Tank, Fuel

$91.99

$

Usually ships in 2-12 days

0

23

Murray 06X111

Screw

Note: (Included with Ref. No. 22)

$5.99

$

Usually ships in 2-12 days

0

24

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

25

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

26

Murray 1401110MA

Rod, Hood Prop

$12.99

$

Usually ships in 2-12 days

0

27

Murray 1401282MA

Spring, Seat Deck

$23.99

$

Usually ships in 2-12 days

0

28

Murray 1401056E701

Bracket, Prop Rod

$

$

Not available

29

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

30

Murray 15X116MA

Nut, NY-Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Murray 1401248MA

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

32

Murray 1401084MA

Cover, Detent (Black)

$6.99

$

Usually ships in 2-12 days

0

33

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

34

UNKNOWN

$

$

Not available

36

Murray 1401144

Footmat, Left

$5.99

$

Usually ships in 2-12 days

0

37

Murray 1401145

Footmat, Right

$5.49

$

Usually ships in 2-12 days

0

39

Murray 1401256E701

Frame

$

$

Not available

40

Murray 1401219E700

Deck, Seat

$

$

Currently unavailable

41

Murray 094744

Bumper

$9.49

$

Usually ships in 2-12 days

0

42

Murray 15X116MA

Nut
(Superseded to 703232)

Note: (Included with Ref. No. 22)

$4.49

$

In Stock, Qty 20+

0

43

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

44

Murray 7601036

Kit, Foil Heat Shield

$

$

Not available

45

Murray 1401073

Trim, Left

$52.99

$

Usually ships in 2-12 days

0

46

Murray 1401072MA

Trim, Right

$65.99

$

Usually ships in 2-12 days

0

47

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

--

Murray F-020603L

Book, Instruction

$

$

Currently unavailable
