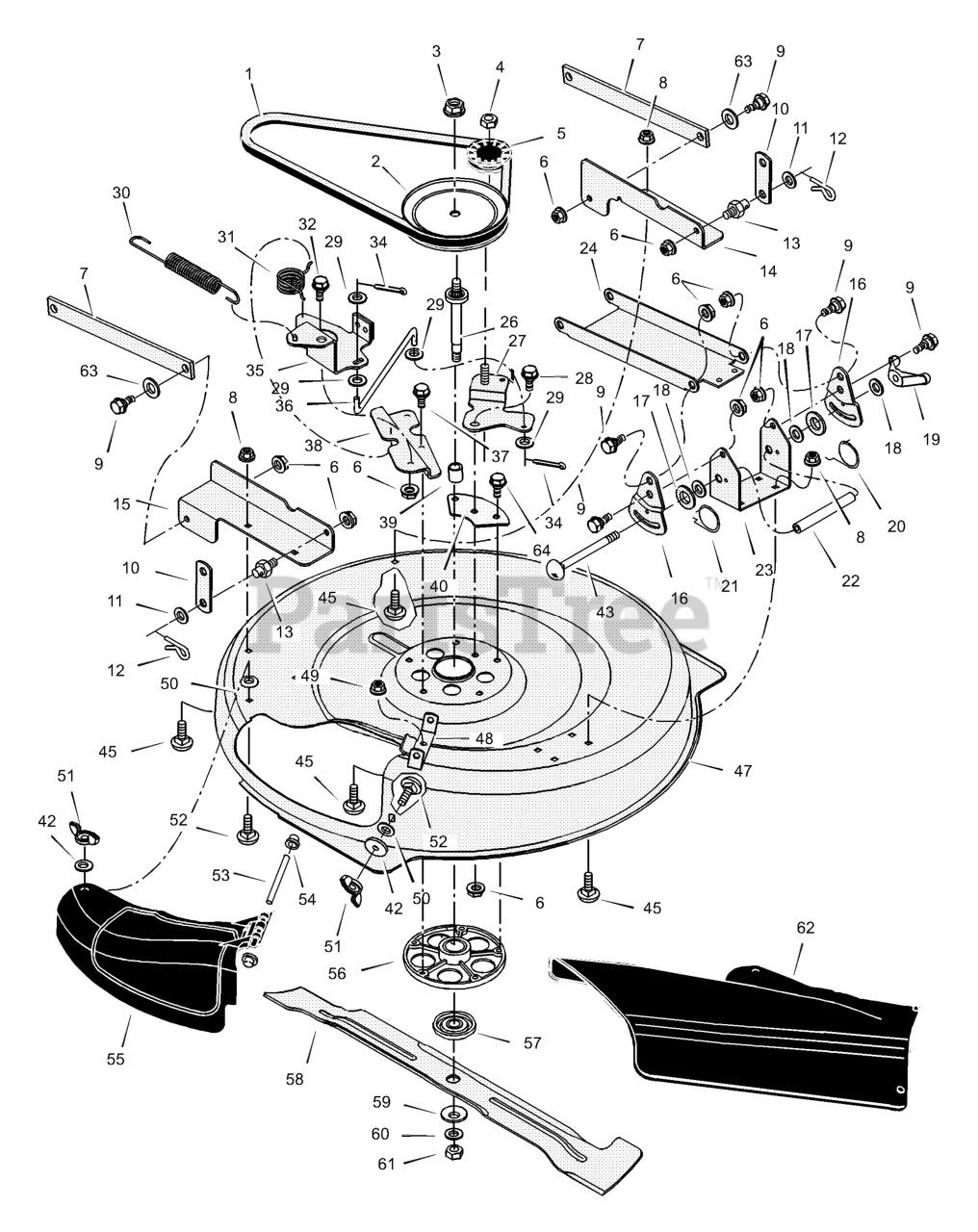

309029x50B - Murray 30" Rear-Engine Riding Mower (2003) Mower Housing Parts Diagram

30" Rear-Engine Riding Mower

Mower Housing Parts Diagram

  • Title

1

Murray 37X111MA

Belt, Blade Drive

$25.99

$

In Stock, only 1 left!

0

2

Murray 1401092MA

Pulley, Input

$57.99

$

Usually ships in 2-12 days

0

3

Murray 15X140MA

NUT, Nylock Ring, Pulley, 9/16-18

$9.99

$

In Stock, Qty 7

0

4

Murray 015X98MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 1401252MA

IDLER PULLEY, Fixed

$

$

Not available

6

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 1401031E701MA

Arm, Rear

$16.99

$

Usually ships in 2-12 days

0

8

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

10

Murray 1401033E701

Link, Lift

$24.99

$

Usually ships in 2-12 days

0

11

Murray 17X102MA

WASHER, 1/2 x 7/8
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

12

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 094067MA

PIN, Threaded, Shoulder, 3/8-16 x 1-7/16 Long
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

14

Murray 1401047E701

Bracket, Left Rear

$25.99

$

Usually ships in 2-12 days

0

15

Murray 1401235E701

Bracket, Right Rear

$22.99

$

Usually ships in 2-12 days

0

16

Murray 1401038E701

Plate, Adjustment

$5.99

$

In Stock, only 4 left!

0

17

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 8

0

18

Murray 017X45MA

WASHER, Flat, 1

$

$

Not available

19

Murray 095004MA

WINGNUT 5/16-18

$7.49

$

In Stock, only 2 left!

0

20

Murray 166X43MA

SPRING, Left Torsion

$4.99

$

In Stock, only 2 left!

0

21

Murray 166X42MA

SPRING, Right Torsion

$4.99

$

In Stock, Qty 8

0

22

Murray 1401095

Tube, Spacer

$

$

Not available

23

Murray 1401037E701

Bracket, Deck

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1401040E701MA

Hanger, Front

$48.99

$

Usually ships in 2-12 days

0

26

Murray 1401065MA

Shaft, Splined

$20.99

$

Usually ships in 2-12 days

0

27

Murray 1401258E701MA

Arm Assembly , Idler

$119.99

$

Usually ships in 2-12 days

0

28

Murray 009X39MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.49

$

In Stock, Qty 5

0

29

Murray 017X47MA

WASHER, Flat, 5/16
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 165X157MA

SPRING, Extension

$11.99

$

Usually ships in 2-12 days

0

31

Murray 166X46MA

Spring, Torsion

$5.99

$

Usually ships in 2-12 days

0

32

Murray 009X42MA

BOLT, Shoulder, 3/8-16 x 3/5
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

34

Murray 030X20MA

COTTERPIN, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

35

Murray 1401185E701MA

Arm Assembly, Brake

$

$

Not available

36

Murray 1401119MA

Link, Idler Arm

$25.99

$

In Stock, only 1 left!

0

37

Murray 0025X7MA

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

38

Murray 1401052E701

Bracket, Brake Mounting

$28.99

$

Usually ships in 2-12 days

0

39

Murray 1401094MA

Spacer, Jackshaft

$4.99

$

Usually ships in 2-12 days

0

40

Murray 1401259 Z

Plate, Idler Mounting

$

$

Currently unavailable

42

Murray 019X45MA

Washer

$5.49

$

In Stock, only 2 left!

0

43

Murray 002X94MA

Bolt, Carriage

$5.49

$

Usually ships in 2-12 days

0

45

Murray 002X53MA

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

47

Murray 1401028E701MA

Housing, Blade

$

$

Not available

48

Murray 1401106E701

Hinge, Mulching Cover

$6.99

$

In Stock, only 1 left!

0

49

Murray 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 028X76MA

NUT, Push, 1/4

$4.49

$

Usually ships in 2-12 days

0

51

Murray 014X86MA

NUT, Wing, 5/16-18
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

52

Murray 002X74MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

53

Murray 091767 Z

Rod, Chute Deflector

$

$

Currently unavailable

54

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

55

Murray 1401080MA

Cover, Mulch (Black)

$58.99

$

Usually ships in 2-12 days

0

56

Murray 094305

ASM. JACKSHAFT HOUSING W/VENTS

$112.99

$

Usually ships in 2-12 days

0

57

Murray 1001035

Adapter, Deck/Blade

$9.99

$

In Stock, only 2 left!

0

58

Murray 1401079E701MA

Blade

$37.99

$

In Stock, only 1 left!

0

59

Murray 17X166MA

WASHER, Belleville

$13.99

$

In Stock, Qty 18

0

60

Murray 17X165MA

WASHER, Hardened

$16.99

$

In Stock, only 4 left!

0

61

Murray 15X100MA

NUT, Blade, 9/16-18

$3.99

$

In Stock, Qty 10

0

62

Murray 1401081MA

Deflector, Chute (Black)

$114.99

$

Usually ships in 2-12 days

0

63

Murray 002X74MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

64

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0
