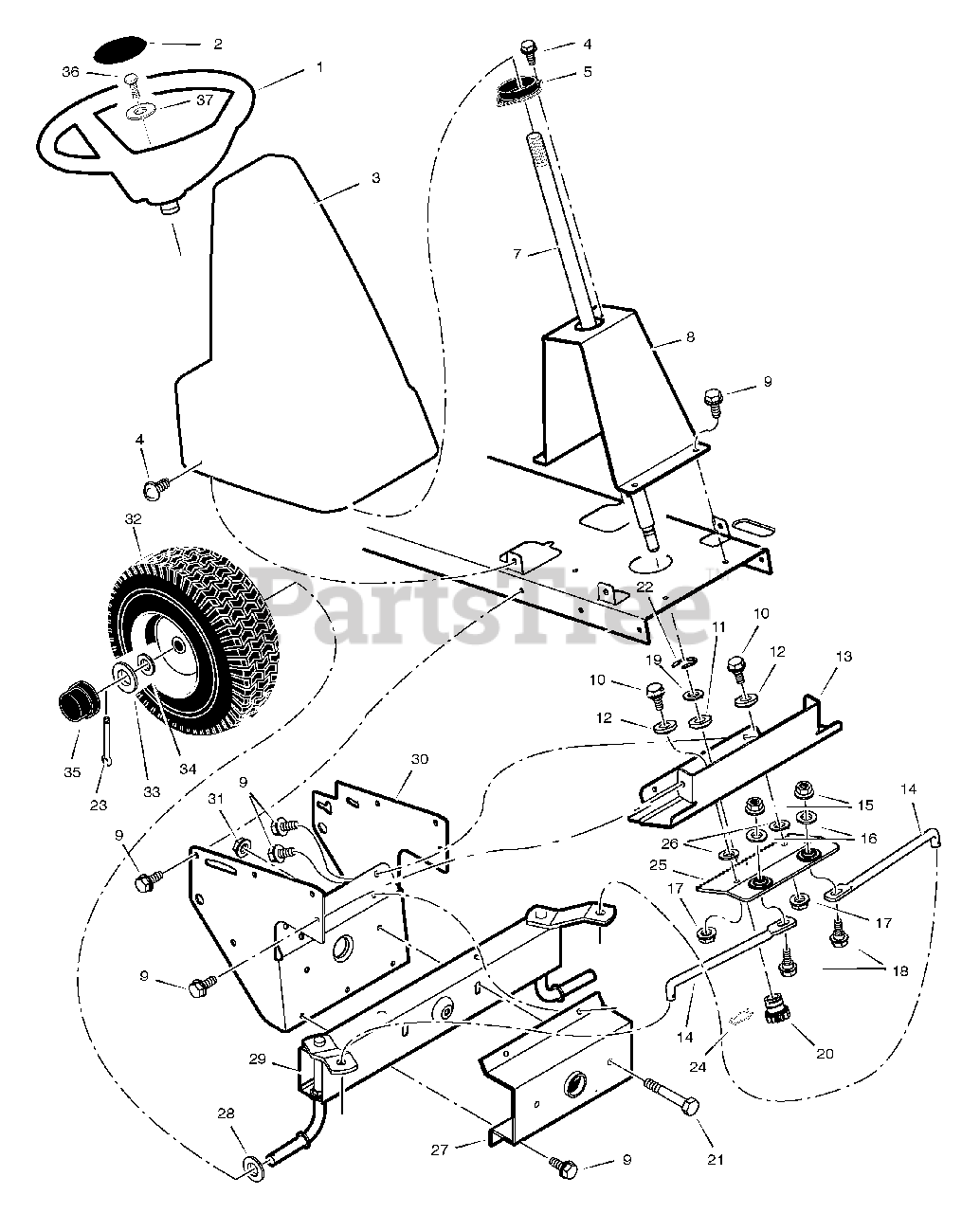

309029x11C - Murray 30" Rear-Engine Riding Mower (2005) Steering Parts Diagram

30" Rear-Engine Riding Mower

Steering Parts Diagram

  • Title
1

Murray MU095185

WHEEL, Steering

$

$

Currently unavailable

2

Murray MU711326

Cap, Steering

$

$

Currently unavailable

3

Murray MU1401067

Console, High -Black

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Murray MU1401090

BEARING, Upper Steering

$

$

Currently unavailable

7

Murray MU1401100

Shaft, Steering

$

$

Currently unavailable

8

Murray MU1401055E701

SUPPORT, Steering

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Murray MU009X67

BOLT, Shoulder

$

$

Currently unavailable

11

Murray MU1401098

BEARING, Lower Steering

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Murray MU1401058E701

Plate, Gear Mounting

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Murray MU015X84

NUT, Flange

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU015X88

NUT, Flange

$

$

Currently unavailable

18

Murray MU01X111

BOLT, Hex

$

$

Currently unavailable

19

Murray MU17X118ZMA

WASHER, 1-1.3 16G FLT

$

$

Currently unavailable

20

Murray MU1401099

Gear, Pinion

$

$

Currently unavailable

21

Murray MU01X146

BOLT, Hex

$

$

Currently unavailable

22

Murray MU011X28

E-Ring, Retainer

$

$

Currently unavailable

23

Murray MU030X35

PIN, Cotter

$

$

Currently unavailable

24

Murray MU094131

Retainer, Spring

$

$

Currently unavailable

25

Murray MU1401046E701

Rack, Steering

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Murray MU1401376E701

BRACKET, Axle Front

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Murray MU1401250E701

Axle & Spindle Assembly

$

$

Currently unavailable

30

Murray MU1401059E701MA

BRACKET, Support

$

$

Currently unavailable

31

Murray MU15X118

NUT, Flange

$

$

Currently unavailable

32

Murray MU1401143

WHEEL, Front

$

$

Currently unavailable

33

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Murray MU094618

Cap, Hub

$

$

Currently unavailable

36

$

$

Currently unavailable

37

$

$

Currently unavailable
