309029x11C - Murray 30" Rear-Engine Riding Mower (2005) Motion Drive Parts Diagram

30" Rear-Engine Riding Mower

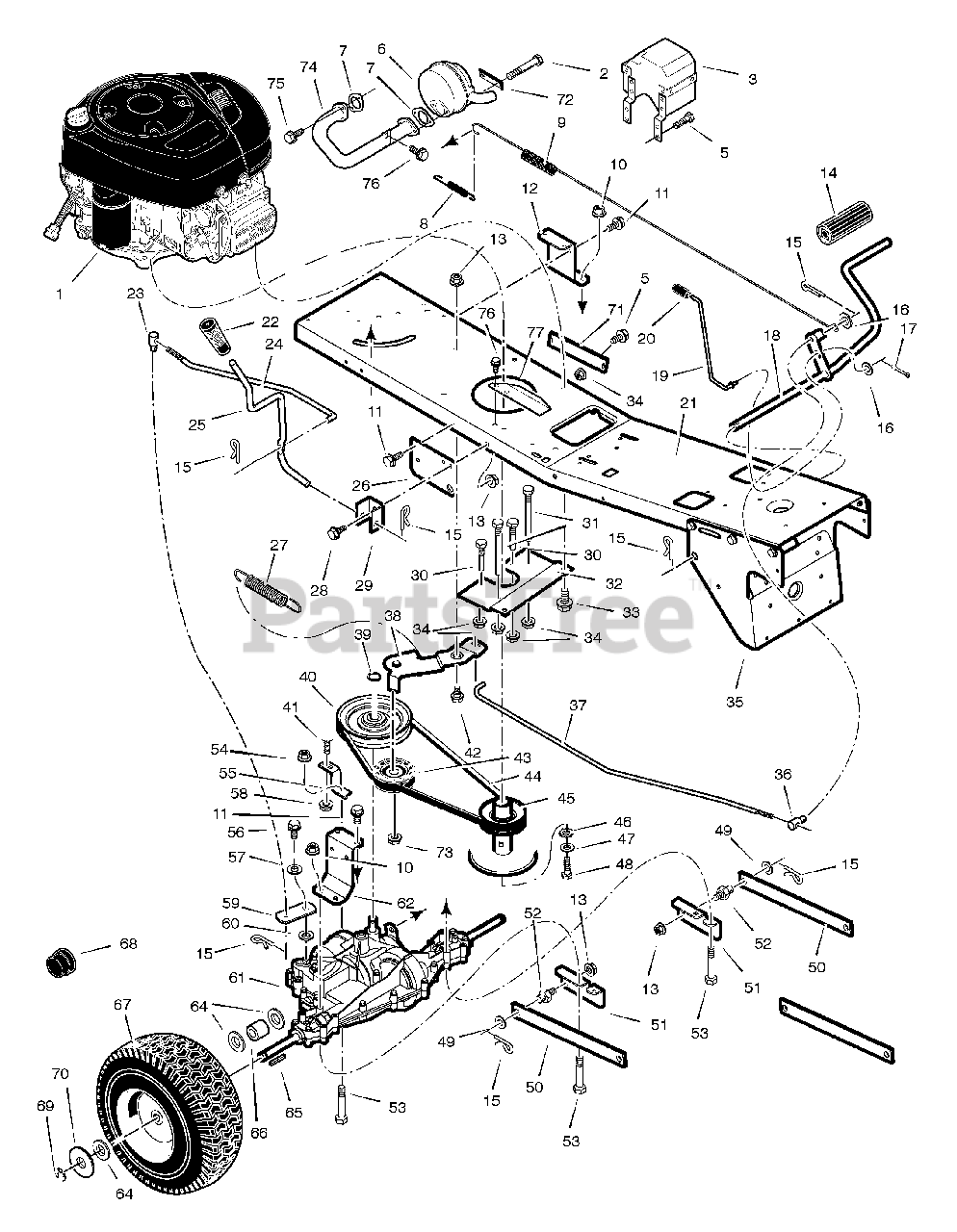

Motion Drive Parts Diagram

  • Title
1

Engine, Briggs & Stratton

$

$

Not available

2

Murray MU01X134

BOLT, Hex

$

$

Currently unavailable

3

Murray MU1401375

SHIELD Assembly, Heat

$

$

Currently unavailable

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Murray MU692236

Gasket, Muffler

$

$

Currently unavailable

8

Murray MU165X75

SPRING, Extension

$

$

Currently unavailable

9

Murray MU165X148

SPRING, Extension

$

$

Currently unavailable

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Murray MU1401268E701MA

BRACKET, Left Transaxle

$

$

Currently unavailable

13

Murray MU015X84

NUT, Flange

$

$

Currently unavailable

14

Murray MU021544

Cover, Pedal

$

$

Currently unavailable

15

Murray MU030X20

PIN, Cotter

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU030X20

PIN, Cotter

$

$

Currently unavailable

18

Murray MU1401127E701

Pedal Assembly

$

$

Currently unavailable

19

Murray MU1401112

ROD, Parking Brake

$

$

Currently unavailable

20

Murray MU091079

GRIP, Parking Brake Rod

$

$

Currently unavailable

$

$

Currently unavailable

22

Murray MU092697

GRIP, Shift Lever

$

$

Currently unavailable

23

Murray MU1401148ZMA

NUT, Adjusting

$

$

Currently unavailable

24

Murray MU1401122

Link, Shift

$

$

Currently unavailable

25

Murray MU1401111

LEVER, Shift

$

$

Currently unavailable

26

Murray MU1401032E701MA

BRACKET, Lift Pivot

$

$

Currently unavailable

27

Murray MU165X147

SPRING, Extension

$

$

Currently unavailable

28

Murray MU009X39

BOLT, Shoulder

$

$

Currently unavailable

29

Murray MU1401043E701MA

BRACKET, Pivot

$

$

Currently unavailable

30

Murray MU1401104

GUIDE, Belt -Short

$

$

Currently unavailable

31

Murray MU1401105

GUIDE, Belt -Long

$

$

Currently unavailable

32

Murray MU1401057E701MA

Plate, Belt Guide

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Murray MU015X79

NUT, Flange

$

$

Currently unavailable

35

Murray MU1401059E701MA

BRACKET, Support

$

$

Currently unavailable

36

Murray MU094815ZMA

NUT, Adjusting

$

$

Currently unavailable

37

Murray MU1401078

ROD, Clutch

$

$

Currently unavailable

38

Murray MU1401128E701MA

Clutch Arm Assembly

$

$

Currently unavailable

39

Murray MU0011X7

Ring, Retainer

$

$

Currently unavailable

40

Murray MU1401077

PULLEY, Drive

$

$

Currently unavailable

41

Murray MU002X53

BOLT, Carriage

$

$

Currently unavailable

42

Murray MU009X39

BOLT, Shoulder

$

$

Currently unavailable

43

Murray MU1401252

PULLEY, Idler

$

$

Currently unavailable

44

Murray MU37X110

BELT, Motion Drive

$

$

Currently unavailable

45

Murray MU1401066

PULLEY, Split Stack

$

$

Currently unavailable

46

Murray MU019X35

WASHER, Star

$

$

Currently unavailable

47

$

$

Currently unavailable

48

Murray MU01X140

BOLT, Hex

$

$

Currently unavailable

49

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Murray MU1401039E701MA

BRACKET, Rear Hanger

$

$

Currently unavailable

52

Murray MU094067

PIN, Threaded Shoulder

$

$

Currently unavailable

53

Murray MU01X155

BOLT, Hex

$

$

Currently unavailable

$

$

Currently unavailable

55

Murray MU1401051E701

BRACKET, Torque Reactor

$

$

Currently unavailable

56

$

$

Currently unavailable

57

Murray MU017X38

WASHER, Shift Yoke

$

$

Currently unavailable

$

$

Currently unavailable

59

Murray MU1401351 Z

Yoke, Shift

$

$

Currently unavailable

60

$

$

Currently unavailable

61

Transaxle, Peerless **

$

$

Not available

62

Murray MU1401042E701MA

BRACKET, Right Transaxle

$

$

Currently unavailable

64

$

$

Currently unavailable

65

Murray MU056534

Key, Square

$

$

Currently unavailable

66

Murray MU1401103

SPACER, Rear Wheel

$

$

Currently unavailable

67

Murray MU1401120

WHEEL, Rear -15"

$

$

Currently unavailable

68

Murray MU094618

Cap, Hub

$

$

Currently unavailable

69

$

$

Currently unavailable

70

$

$

Currently unavailable

71

Murray MU1401260E701MA

Plate, Reinforcement

$

$

Currently unavailable

72

Murray MU092378

Lock, Screw

$

$

Currently unavailable

$

$

Currently unavailable

74

Murray MU1401357

Tube, Exhaust

$

$

Currently unavailable

75

$

$

Currently unavailable

76

$

$

Currently unavailable

77

Murray MU1401396

SHIELD, Heat

$

$

Currently unavailable
