309029x11A - Murray 30" Rear-Engine Riding Mower (2002) Steering Parts Diagram

30" Rear-Engine Riding Mower

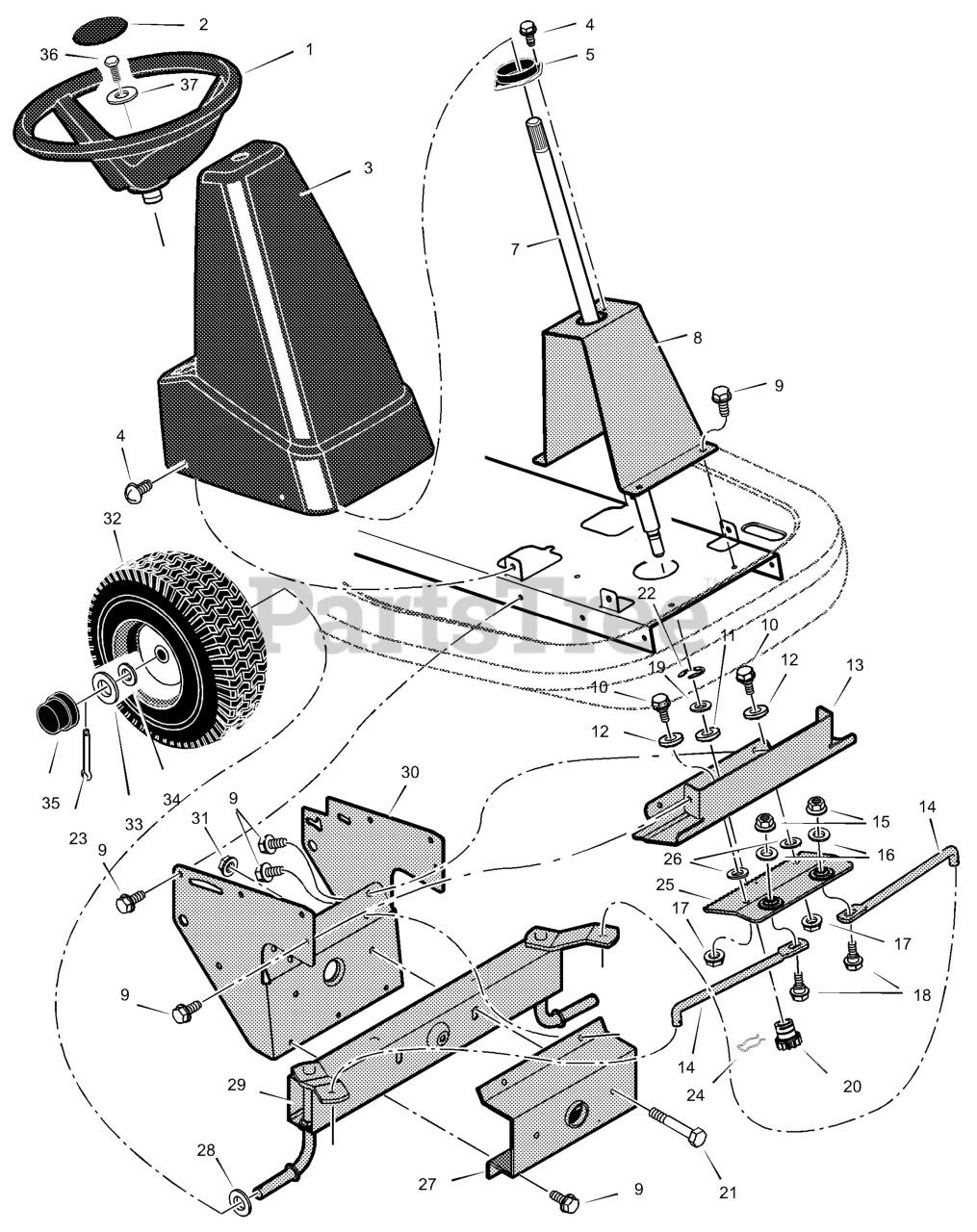

Steering Parts Diagram

  • Title
1

Murray 095185MA

Wheel, Steering
(Superseded to 1687602YP)

$110.99

$

In Stock, only 1 left!

0

2

Murray 711326MA

Cap, Steering

$7.49

$

Usually ships in 2-12 days

0

3

Murray 1401067MA

Console, High -Black

$182.99

$

Usually ships in 2-12 days

0

4

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

5

Murray 1401090MA

Bearing, Upper Steering

$5.49

$

Usually ships in 2-12 days

0

7

Murray 1401100MA

Shaft, Steering

$81.99

$

In Stock, only 1 left!

0

8

Murray 1401055E701MA

Support, Steering

$

$

Not available

9

$

$

Not available

10

Murray 009X67MA

Bolt, Shoulder

$5.49

$

In Stock, only 3 left!

0

11

Murray 1401098MA

Bearing, Lower Steering

$4.99

$

Usually ships in 2-12 days

0

12

$41.99

$

Usually ships in 2-12 days

0

13

Murray 1401058E701

Plate, Gear Mounting
(Superseded to 1401058E701MA)

$85.99

$

Usually ships in 2-12 days

0

14

Murray 1401123E701

Link, Drag
(Superseded to 1401123E701MA)

$18.99

$

Usually ships in 2-12 days

0

15

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

17

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

18

Murray 01X111MA

Bolt, Hex

$4.49

$

In Stock, only 1 left!

0

19

Murray 17X118

WASHER, 1-1.3 16G FLT

$3.49

$

Usually ships in 2-12 days

0

20

Murray 1401099MA

Gear, Pinion

$

$

Not available

21

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

22

Murray 011X28

E-Ring, Retainer

$2.49

$

Usually ships in 2-12 days

0

23

Murray 030X35MA

Pin, Cotter

$4.49

$

In Stock, only 2 left!

0

24

Murray 094131MA

Retainer, Spring

$4.99

$

In Stock, only 1 left!

0

25

Murray 1401046E701MA

Rack, Steering

$47.99

$

Usually ships in 2-12 days

0

26

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

27

Murray 1401060E701

Bracket, Axle Front

$148.99

$

Usually ships in 2-12 days

0

28

Murray 17X157

Washer
(Superseded to 17X157MA)

$4.49

$

In Stock, only 4 left!

0

29

Murray 1401126E701

Axle & Spindle Assembly

$

$

Not available

30

Murray 1401059E701

Bracket, Support

$

$

Not available

31

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

32

Murray 1401143

Wheel, Front *

$

$

Not available

33

$8.49

$

In Stock, only 3 left!

0

34

Murray 17X157

Washer
(Superseded to 17X157MA)

$4.49

$

In Stock, only 4 left!

0

35

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0

36

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

37

$5.49

$

Usually ships in 2-12 days

0
