309012x11A - Murray 30" Rear-Engine Riding Mower (2001) Grass Bagger Parts Diagram

30" Rear-Engine Riding Mower

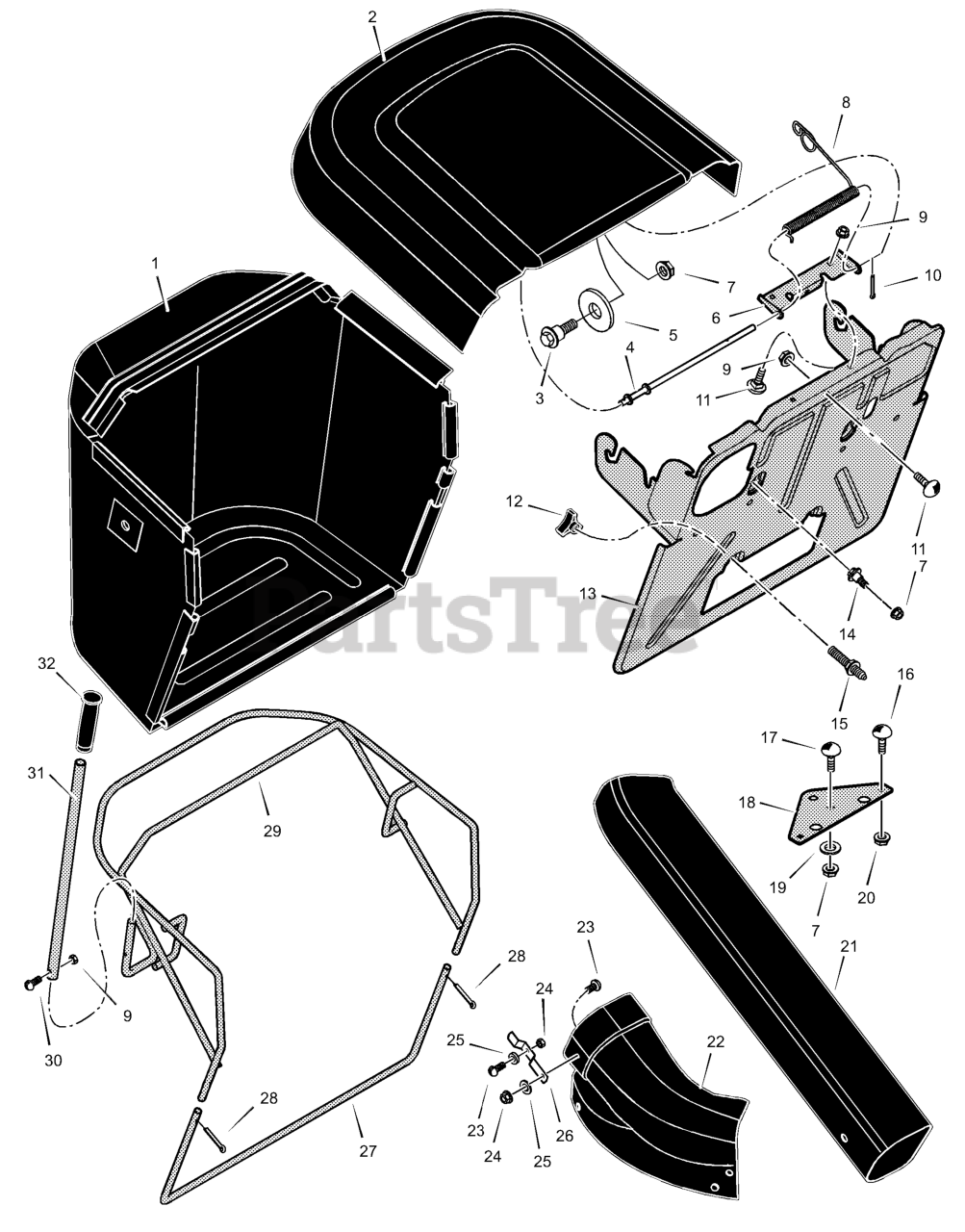

Grass Bagger Parts Diagram

  • Title
1

Murray 1401173

Bag, Cloth

$

$

Not available

2

Murray 1401188

Cover, Bag

$

$

Currently unavailable

3

Murray 009X13MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1401168

Rod, Bag Lid

$

$

Not available

5

Murray 17X152

Washer

$5.49

$

Usually ships in 2-12 days

0

6

Murray 1401190-853

Hinge, Bag Top

$

$

Currently unavailable

7

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 166X47MA

Spring, Torsion

$25.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

10

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

11

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

12

$6.49

$

Usually ships in 2-12 days

0

13

Murray 1401182-853

Assembly, Bag Plate & Hanger

$

$

Currently unavailable

14

Murray 009X70

Bolt, Shoulder

$19.99

$

Usually ships in 2-12 days

0

15

Murray 06X110

Stud, Double End

$4.99

$

In Stock, only 2 left!

0

16

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

17

Murray 002X57MA

Bolt, Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

18

Murray 1401178-853

Bracket, Hitch Extension

$

$

Currently unavailable

19

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 1401089MA

Tube, Connecting

$

$

Not available

22

Murray 1401088MA

Tube, Extension

$

$

Not available

23

$3.49

$

Usually ships in 2-12 days

0

24

Murray 014X77MA

Wingnut

$4.49

$

Usually ships in 2-12 days

0

25

$4.99

$

In Stock, only 1 left!

0

26

Murray 1401175MA

Spring, Leaf

$17.99

$

Usually ships in 2-12 days

0

27

Murray 1401155-853

Tube, Bag Frame

$

$

Currently unavailable

28

Murray 030X35MA

Pin, Cotter

$4.49

$

In Stock, only 2 left!

0

29

Murray 1401167-853

Frame, Bag

$

$

Currently unavailable

30

$

$

Not available

31

Murray 1401141-853

Lever, Dump

$

$

Currently unavailable

$7.49

$

Usually ships in 2-12 days

0
