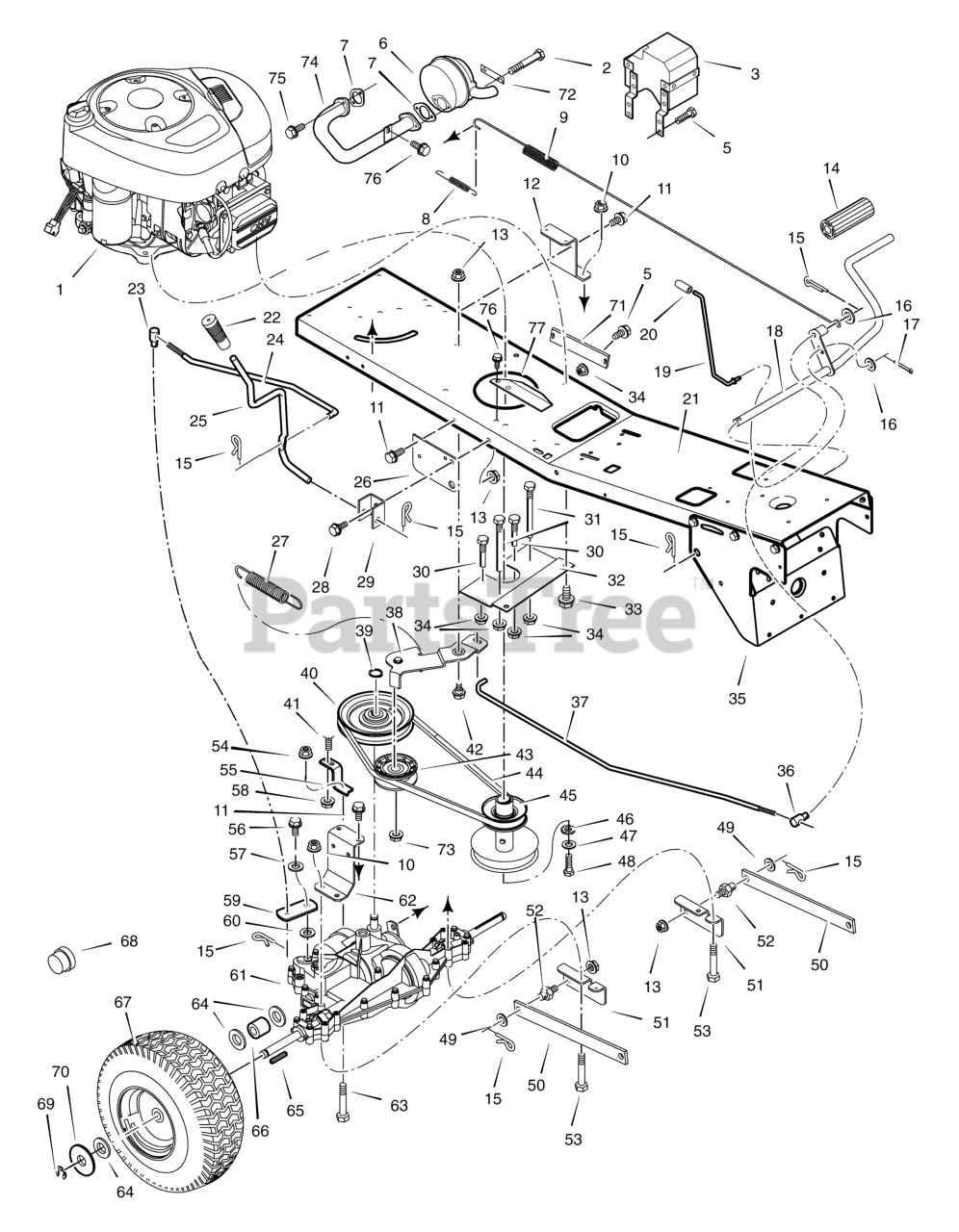

309007x51A (7800336) - Murray 30" Lawn Tractor (2008) Motion Drive Parts Diagram

30" Lawn Tractor

Motion Drive Parts Diagram

  • Title

1

Engine, Briggs & Stratton *

Note: (Model 2158070331E1)

$

$

Not available

2

Murray 01X134MA

BOLT, Hex

$10.99

$

Usually ships in 2-12 days

0

3

Murray 1401375MA

SHIELD ASSEMBLY, Heat

$87.99

$

Usually ships in 2-12 days

0

5

Murray 26X267MA

SCREW

$4.99

$

In Stock, Qty 20+

0

6

Murray 1401358MA

MUFFLER

$87.99

$

In Stock, only 1 left!

0

7

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

8

Murray 165X75MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

9

Murray 165X148MA

SPRING, Extension

$18.99

$

Usually ships in 2-12 days

0

10

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 26X249MA

SCREW

$

$

Not available

12

Murray 1401268E701MA

BRACKET, Left Transaxle

$38.99

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 021544MA

COVER, Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

15

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

16

Murray 017X53MA

WASHER
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

17

Murray 0031X4MA

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

18

Murray 1401127E701MA

PEDAL ASSEMBLY

$95.99

$

Usually ships in 2-12 days

0

19

Murray 1401112MA

ROD, Parking Brake

$9.49

$

Usually ships in 2-12 days

0

20

Murray 091079MA

GRIP, Parking Brake Rod

$3.49

$

Usually ships in 2-12 days

0

21

Murray 1401371E701MA

FRAME

$205.99

$

Usually ships in 2-12 days

0

22

Murray 1741756MA

GRIP, Shift Lever

$5.99

$

Usually ships in 2-12 days

0

23

Murray 1401148ZMA

NUT, Adjusting

$9.49

$

Usually ships in 2-12 days

0

24

Murray 1401122MA

LINK, Shift

$20.99

$

Usually ships in 2-12 days

0

25

Murray 1401111MA

LEVER, Shift

$45.99

$

Usually ships in 2-12 days

0

26

Murray 1401032E701MA

BRACKET, Lift Pivot

$26.99

$

Usually ships in 2-12 days

0

27

Murray 165X147MA

SPRING, Extension

$15.99

$

Usually ships in 2-12 days

0

28

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 5

0

29

Murray 1401043E701MA

BRACKET, Pivot

$8.49

$

Usually ships in 2-12 days

0

30

Murray 1401104MA

GUIDE, Belt Short

$

$

Not available

31

Murray 1401105MA

GUIDE, Belt Long

$5.49

$

In Stock, Qty 5

0

32

Murray 1401057E701MA

PLATE, Belt Guide

$13.99

$

Usually ships in 2-12 days

0

33

Murray 0025X7MA

BOLT
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

34

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Murray 1401059E701MA

BRACKET, Support

$

$

Not available

36

Murray 094815ZMA

NUT, Adjusting

$21.99

$

Usually ships in 2-12 days

0

37

Murray 1401078MA

ROD, Clutch

$11.99

$

Usually ships in 2-12 days

0

38

Murray 1401128E701MA

CLUTCH ARM ASSEMBLY

$14.99

$

Usually ships in 2-12 days

0

39

Murray 0011X7MA

RING, Retainer

$3.99

$

In Stock, only 4 left!

0

40

Murray 1401077MA

PULLEY, Drive

$100.99

$

Usually ships in 2-12 days

0

41

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

42

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 5

0

43

Murray 1401252MA

PULLEY, Idler

$

$

Not available

44

Murray 37X110MA

BELT, Motion Drive

$26.99

$

Usually ships in 2-12 days

0

45

Murray 1401066MA

PULLEY, Split Stack

$

$

Not available

46

Murray 019X35MA

WASHER, Star

$4.99

$

In Stock, Qty 11

0

47

Murray 17X170MA

WASHER

$

$

Not available

48

Murray 01X140MA

BOLT, Hex

$5.49

$

In Stock, Qty 15

0

49

Murray 17X120MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

50

Murray 1401031E701MA

ARM, Rear

$16.99

$

Usually ships in 2-12 days

0

51

Murray 1401039E701MA

BRACKET, Rear Hanger

$23.99

$

Usually ships in 2-12 days

0

52

Murray 094067MA

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

53

Murray 01X155MA

BOLT, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

54

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

55

Murray 1401051E701MA

BRACKET, Torque Reactor

$9.49

$

Usually ships in 2-12 days

0

56

Murray 06X105MA

SCREW

$3.99

$

In Stock, only 1 left!

0

57

Murray 017X38MA

WASHER, Shift Yoke

$3.99

$

Usually ships in 2-12 days

0

58

Murray 015X43MA

NUT
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

59

Murray 1401351ZMA

YOKE, Shift

$5.99

$

Usually ships in 2-12 days

0

60

Murray 17X148MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

61

Transaxle, Peerless **

$

$

Not available

62

Murray 1401042E701MA

BRACKET, Right Transaxle

$33.99

$

Usually ships in 2-12 days

0

63

Murray 01X120MA

BOLT, Hex

$

$

Not available

64

Murray 17X160MA

WASHER

$4.99

$

In Stock, Qty 20+

0

65

Murray 056534MA

KEY, Square

$4.99

$

In Stock, only 1 left!

0

66

Murray 1401103MA

SPACER, Rear Wheel

$10.99

$

Usually ships in 2-12 days

0

67

Murray 1401120MA

WHEEL, Rear, 15"

$152.99

$

Usually ships in 2-12 days

0

68

Murray 094618MA

CAP, Hub

$5.99

$

In Stock, only 4 left!

0

69

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 17

0

70

Murray 17X195MA

WASHER

$4.99

$

In Stock, Qty 5

0

71

Murray 1401260E701MA

PLATE, Reinforcement

$31.99

$

Usually ships in 2-12 days

0

72

Murray 092378MA

SCREW, Lock

$5.49

$

In Stock, Qty 9

0

73

Murray 015X98MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

74

Murray 1401357MA

TUBE, Exhaust

$65.99

$

Usually ships in 2-12 days

0

75

Murray 06X103MA

SCREW

$6.49

$

Usually ships in 2-12 days

0

76

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

77

Murray 1401396MA

SHIELD, Heat

$12.99

$

Usually ships in 2-12 days

0
