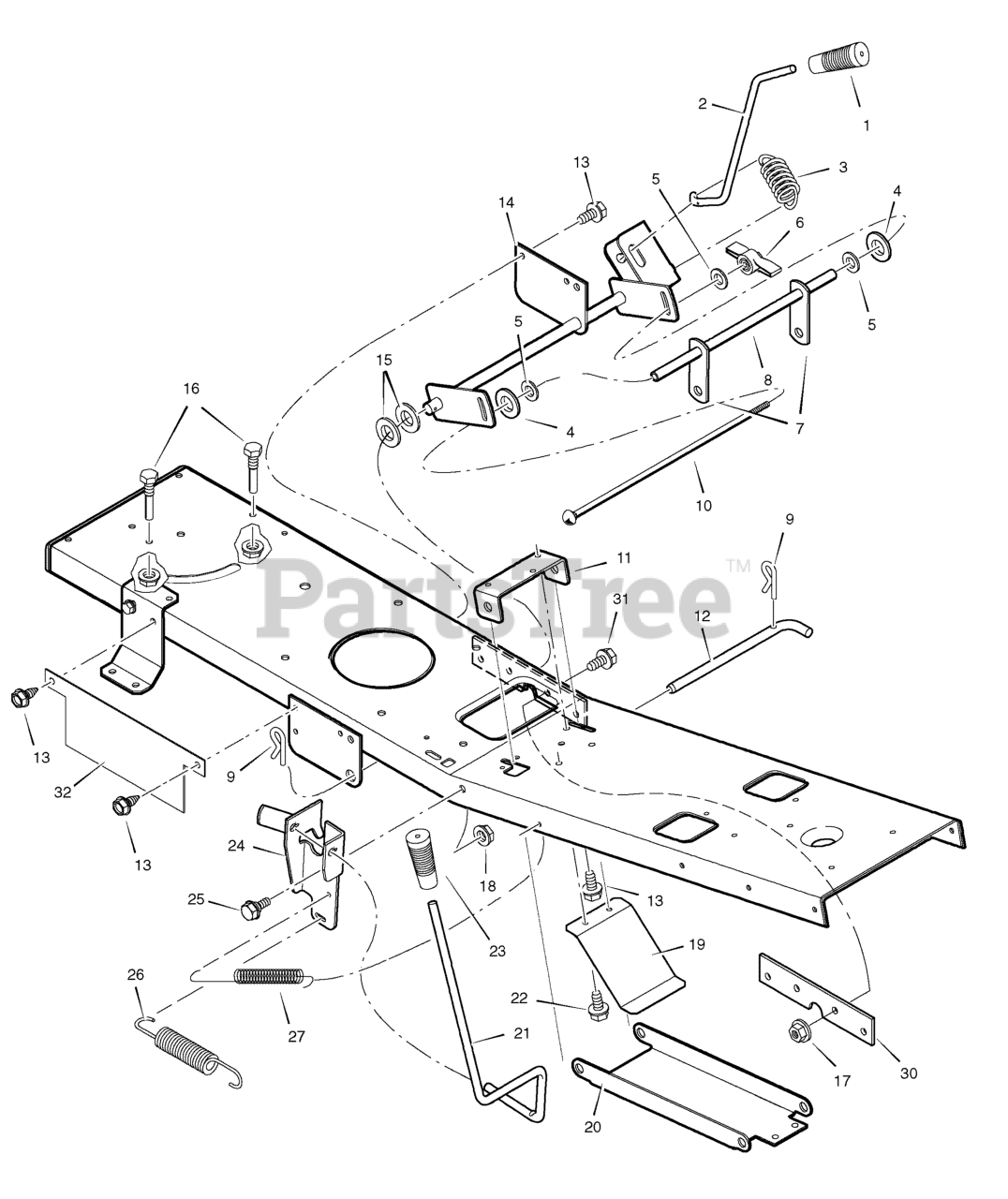

309007x151A (7800503) - Murray 30" Lawn Tractor (2009) Mower Housing Suspension Parts Diagram

30" Lawn Tractor

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 1741756MA

GRIP, Lift Lever

$5.99

$

Usually ships in 2-12 days

0

2

Murray 1401117MA

LEVER, Lift

$

$

Not available

3

Murray 165X154MA

SPRING, Extension

$5.49

$

Usually ships in 2-12 days

0

4

Murray 094137MA

PAD, Friction

$6.99

$

In Stock, Qty 8

0

5

$

$

Not available

6

Murray 095004MA

WINGNUT

$7.49

$

In Stock, only 2 left!

0

7

$24.99

$

Usually ships in 2-12 days

0

8

Murray 1401096MA

TUBE, Spacer

$

$

Not available

9

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

10

Murray 002X93MA

BOLT, Carriage

$12.99

$

Usually ships in 2-12 days

0

11

Murray 1401030E701MA

BRACKET, Front Hanger Pivot

$5.99

$

Usually ships in 2-12 days

0

12

Murray 1401118MA

PIN, Front Hanger

$43.99

$

Usually ships in 2-12 days

0

13

$

$

Not available

14

Murray 1401129E701MA

ARM ASSEMBLY, Lifter

$49.99

$

Usually ships in 2-12 days

0

15

$4.49

$

Usually ships in 2-12 days

0

16

Murray 093349MA

SCREW, Guide

$4.49

$

Usually ships in 2-12 days

0

17

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 1401147MA

SPRING, Leaf

$8.99

$

Usually ships in 2-12 days

0

20

Murray 1401040E701MA

HANGER, Front

$48.99

$

Usually ships in 2-12 days

0

21

Murray 1401116MA

LEVER, PTO

$51.99

$

Usually ships in 2-12 days

0

22

$4.49

$

In Stock, only 1 left!

0

23

Murray 1741757MA

GRIP, PTO

$5.99

$

Usually ships in 2-12 days

0

24

Murray 1401369E701MA

BRACKET, PTO

$44.99

$

Usually ships in 2-12 days

0

25

Murray 009X42MA

BOLT, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

26

Murray 165X157MA

SPRING, Extension

$11.99

$

Usually ships in 2-12 days

0

27

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

30

Murray 1401260E701MA

PLATE, Reinforcement

$31.99

$

Usually ships in 2-12 days

0

31

$4.99

$

In Stock, Qty 20+

0

32

Murray 1742367ZYP

GUARD, Right Rear

$25.99

$

Usually ships in 2-12 days

0
