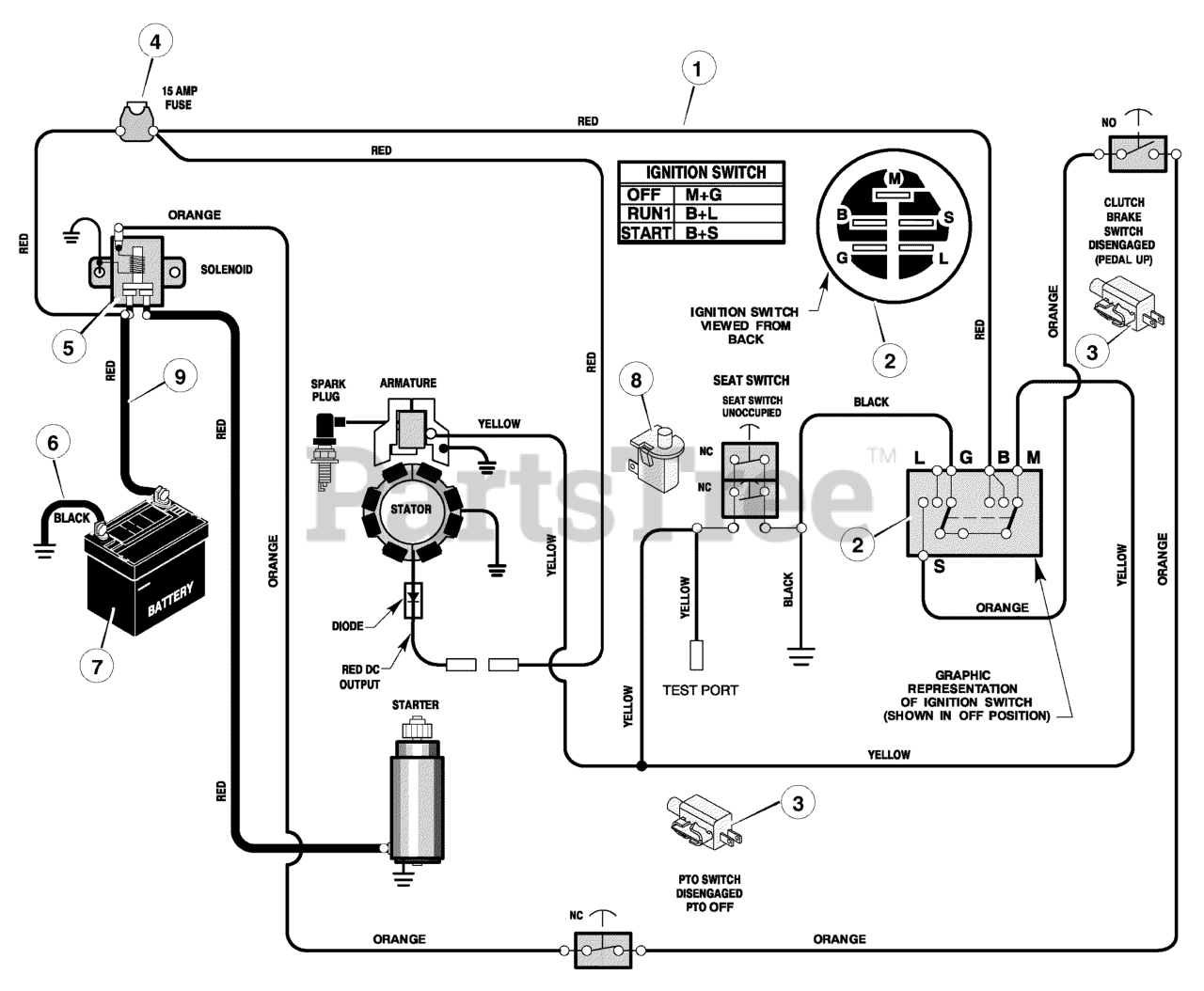

309006x78A-SW - Murray 30" Rear-Engine Riding Mower (2007) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title

4

Murray 1726490

WHEEL, 12 x 8-1/2, Front
(Superseded to 1726490SM)

$193.99

$

Usually ships in 2-12 days

0

5

Murray 2172353

VALVE STEM & CAP ASSEMBLY
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

6

Murray 1722726

WASHER, Special, 1 x 2-1/2
(Superseded to 1722726SM)

$5.49

$

In Stock, only 1 left!

0

7

Murray 1919394

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

5

Murray 26X229MA

Screw, Mounting

$4.49

$

In Stock, only 1 left!

0

8

Murray 2832577

RING, Shaft
(Superseded to 2832577SM)

$4.49

$

In Stock, Qty 20+

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

9

Murray 1722676

CAP, Hub Grey, 2-23/64
(Superseded to 1722676SM)

$5.49

$

In Stock, Qty 20+

0

6

Murray 24X37MA

Cable, Battery Ground

$22.99

$

Usually ships in 2-12 days

0

10

Murray 2105337

KEY, HI PRO, 1/4 x 2
(Superseded to 2105337SM)

$8.49

$

In Stock, Qty 12

0

7

Murray 092739MA

Battery

$70.99

$

Usually ships in 2-12 days

0

7

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

7

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094159MA

Switch, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

9

Murray 024X24MA

Cable, Red Batery

$8.49

$

Usually ships in 2-12 days

0

9

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0
