309006x78A - Murray 30" Rear-Engine Riding Mower (2006) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

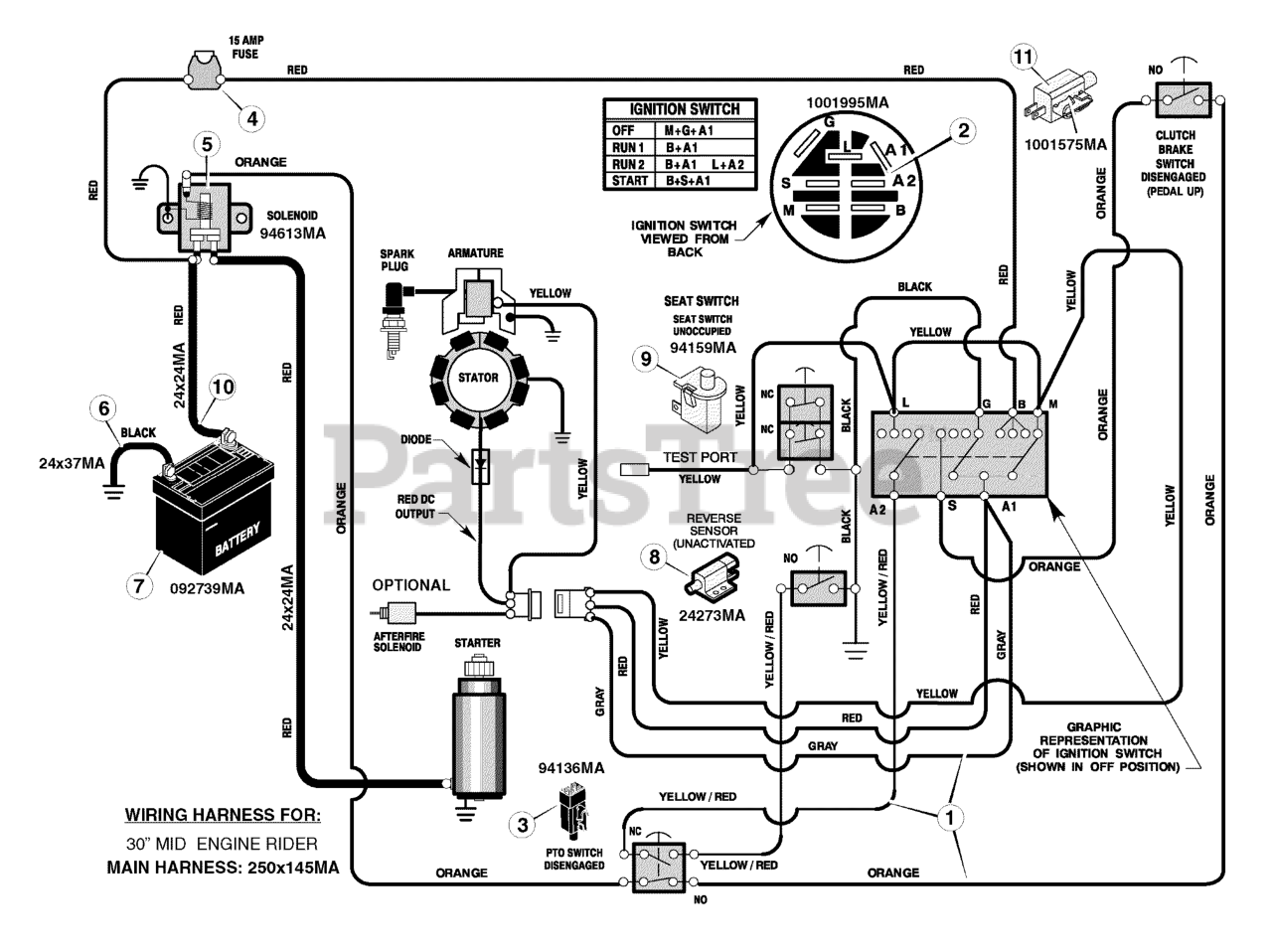

Electrical System Parts Diagram

  • Title

1

Murray 250X145MA

Harness, Chassis Wire

$120.99

$

Usually ships in 2-12 days

0

2

Murray 1001995MA

Switch, Ignition

$26.99

$

In Stock, only 2 left!

0

--

Murray 327349MA

Key, Ignition

$7.49

$

In Stock, Qty 20+

0

3

Murray 1001575MA

Switch, Limit

$9.99

$

In Stock, only 1 left!

0

4

Murray 054212MA

Fuse

$6.99

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

5

Murray 1002004MA

Solenoid
(Superseded to 7701100MA)

$27.99

$

In Stock, only 2 left!

0

--

Murray 26X229MA

Screw, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 24X37MA

Cable, Battery Ground

$22.99

$

Usually ships in 2-12 days

0

7

Murray 092739MA

Battery

$70.99

$

Usually ships in 2-12 days

0

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094159MA

Switch, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

9

Murray 024X24MA

Cable, Red Battery

$8.49

$

Usually ships in 2-12 days

0

10

Murray 024X24MA

Cable

$8.49

$

Usually ships in 2-12 days

0

--

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0

11

Murray 1001575MA

Switch, Limit

$9.99

$

In Stock, only 1 left!

0
