309000x8B - Scotts 30" Rear-Engine Riding Mower (2004) Motion Drive Parts Diagram

30" Rear-Engine Riding Mower

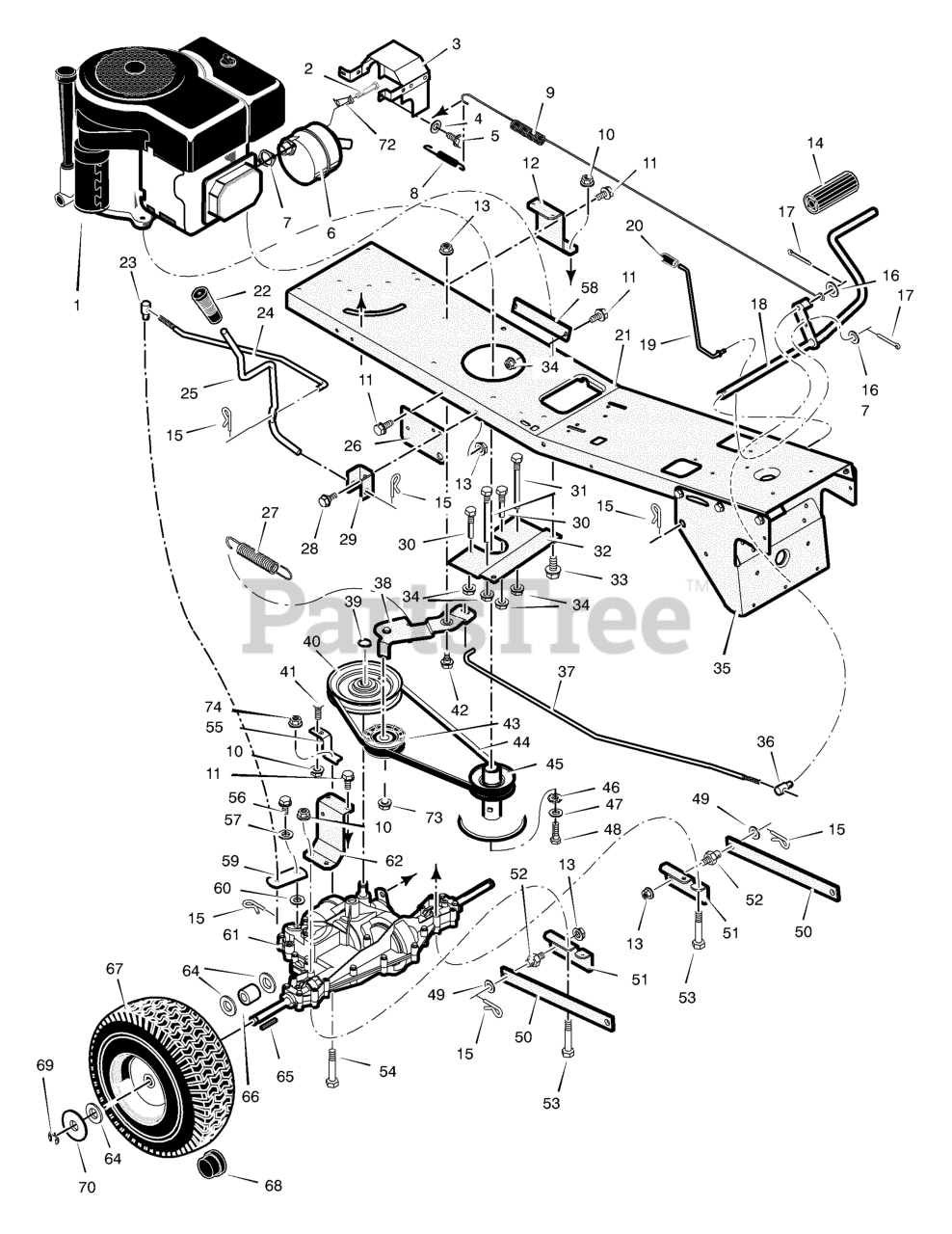

Motion Drive Parts Diagram

  • Title

1

Engine, Briggs & Stratton *

$

$

Not available

2

Murray 01X134MA

Bolt, Hex

$10.99

$

Usually ships in 2-12 days

0

3

Murray 1401207

Shield Assembly, Heat

$

$

Not available

4

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

5

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

6

Murray 1401251

Muffler

$

$

Not available

7

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

8

Murray 165X75MA

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

9

Murray 165X148

Spring, Extension

$18.99

$

Usually ships in 2-12 days

0

10

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 26X249MA

Screw

$

$

Not available

12

Murray 1401068E701

Bracket, Transaxle -LH

$

$

Currently unavailable

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 021544MA

Cover, Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

15

Murray 0031X4MA

Pin, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

16

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

17

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

18

Murray 1401127E701

Pedal Assembly

$95.99

$

Usually ships in 2-12 days

0

19

Murray 1401112

Rod, Parking Brake

$9.49

$

Usually ships in 2-12 days

0

20

Murray 091079MA

Grip, Parking Brake Rod

$3.49

$

Usually ships in 2-12 days

0

21

Murray 1401298E701

Frame

$

$

Not available

22

Murray 092697MA

Grip, Shift Lever
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

23

Murray 1401148

Nut, Adjusting

$

$

Not available

24

Murray 1401122MA

Link, Shift

$20.99

$

Usually ships in 2-12 days

0

25

Murray 1401111MA

Lever, Shift

$45.99

$

Usually ships in 2-12 days

0

26

Murray 1401032E701

Bracket, Lift Pivot

$26.99

$

Usually ships in 2-12 days

0

27

Murray 165X147MA

Spring, Extension

$15.99

$

Usually ships in 2-12 days

0

28

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

29

Murray 1401043E701

Bracket, Pivot

$8.49

$

Usually ships in 2-12 days

0

30

Murray 1401104

Guide, Belt -Short

$

$

Not available

31

Murray 1401105MA

Guide, Belt -Long

$5.49

$

In Stock, Qty 5

0

32

Murray 1401057E701

Plate, Belt Guide

$13.99

$

Usually ships in 2-12 days

0

33

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

34

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Murray 1401059E701

Bracket, Support

$

$

Not available

36

Murray 094815ZMA

Nut, Adjusting

$21.99

$

Usually ships in 2-12 days

0

37

Murray 1401078

Rod, Clutch

$11.99

$

Usually ships in 2-12 days

0

38

Murray 1401128E701

Clutch Arm Assembly

$14.99

$

Usually ships in 2-12 days

0

39

Murray 0011X7MA

Ring, Retainer

$3.99

$

In Stock, only 4 left!

0

40

Murray 1401077MA

Pulley, Drive

$100.99

$

Usually ships in 2-12 days

0

41

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

42

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

43

Murray 1401252MA

Pulley, Idler

$

$

Not available

44

Murray 37X110MA

Belt, Motion Drive

$26.99

$

Usually ships in 2-12 days

0

45

Murray 1401066MA

Pulley, Split Stack

$

$

Not available

46

Murray 019X35MA

Washer, Star

$4.99

$

In Stock, Qty 11

0

47

Murray 17X170MA

Washer

$

$

Not available

48

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

49

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

50

Murray 1401031E701MA

Arm, Rear

$16.99

$

Usually ships in 2-12 days

0

51

Murray 1401039E701

Bracket, Rear Hanger

$23.99

$

Usually ships in 2-12 days

0

52

Murray 094067MA

Pin, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

53

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

54

Murray 01X120MA

Bolt

$

$

Not available

55

Murray 1401051E701

Bracket, Torque Reactor

$9.49

$

Usually ships in 2-12 days

0

56

Murray 06X105MA

Screw

$3.99

$

In Stock, only 1 left!

0

57

Murray 017X38MA

Washer, Shift Yoke

$3.99

$

Usually ships in 2-12 days

0

58

Murray 1401260E701

Plate, Reinforcement

$

$

Not available

59

Murray 1401093 Z

Yoke, Shift

$

$

Currently unavailable

60

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

61

Transaxle, Peerless **

$

$

Not available

62

Murray 1401042E701

Bracket, Transaxle -RH

$33.99

$

Usually ships in 2-12 days

0

64

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

65

Murray 056534MA

Key, Square

$4.99

$

In Stock, only 1 left!

0

66

Murray 1401103MA

SPACER, Rear Wheel

$10.99

$

Usually ships in 2-12 days

0

67

Murray 1401120MA

Wheel, Rear -15"

$152.99

$

Usually ships in 2-12 days

0

68

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0

69

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 17

0

70

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 5

0

72

Murray 092378MA

Lock, Screw

$5.49

$

In Stock, Qty 9

0

73

Murray 015X98MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

74

Murray 015X43MA

Nut
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0
