309000x8A - Murray 30" Rear-Engine Riding Mower (2003) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

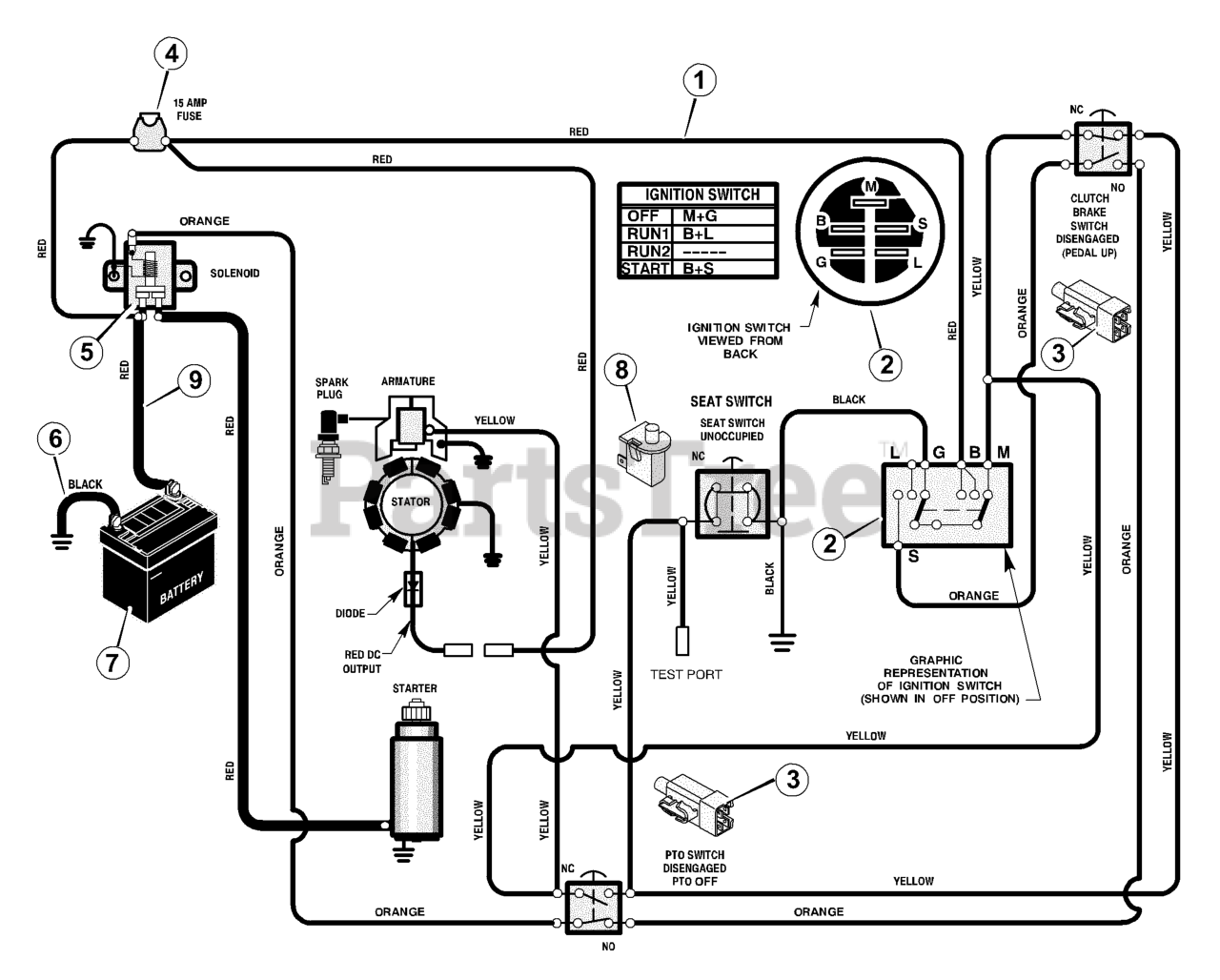

Electrical System Parts Diagram

  • Title

1

Murray 250X115MA

Harness, Chassis Wire

$41.99

$

Usually ships in 2-12 days

0

2

Murray 1401149MA

Switch, Ignition

$32.99

$

Usually ships in 2-12 days

0

--

Murray 327349MA

Key, Ignition

$7.49

$

In Stock, Qty 20+

0

3

Murray 1001575MA

Switch, Limit

$9.99

$

In Stock, only 1 left!

0

4

Murray 302031MA

Fuse

$6.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

5

Murray 094613

Solenoid

$27.99

$

In Stock, only 1 left!

0

--

Murray 26X229MA

Screw, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 24X37MA

Cable, Battery Ground

$22.99

$

Usually ships in 2-12 days

0

7

Murray 092739

Battery

$

$

Currently unavailable

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094159MA

Switch, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

9

Murray 024X24MA

Cable, Red Batery

$8.49

$

Usually ships in 2-12 days

0

--

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0
