3090 XP (31AH5ER9711) - Troy-Bilt Vortex 30" Snow Thrower (2016) Panel Parts Diagram

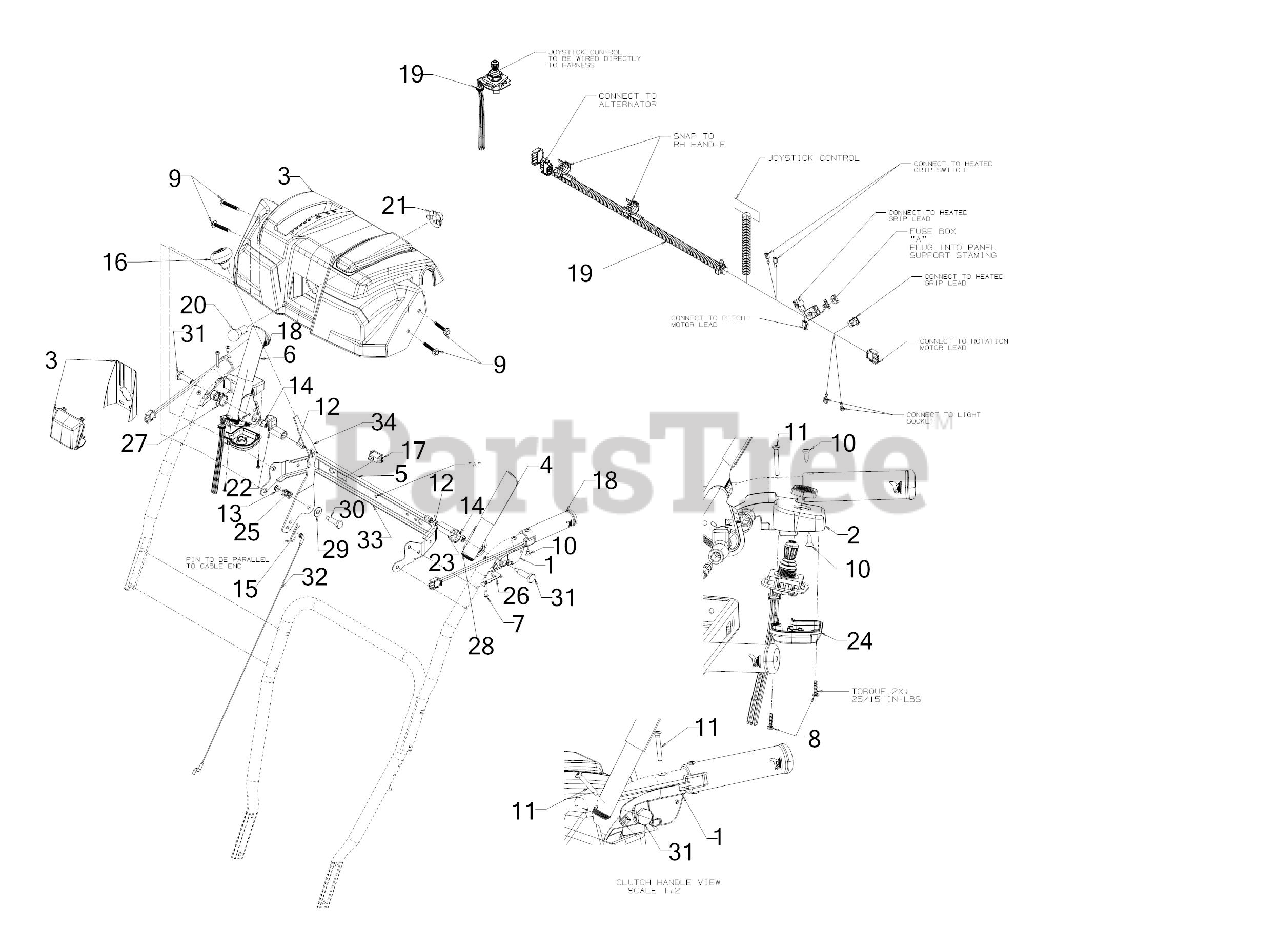

Vortex 30" Snow Thrower

Panel Parts Diagram

  • Title
1

Troy-Bilt 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 7

0

2

Troy-Bilt 931-04653

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$12.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 931-05001

4-WAY HANDLE PANEL ASSEMBLY

$69.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-04111C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04111D)

$22.99

$

Usually ships in 3-6 days

0

5

$12.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 684-05225

ENGAGEMENT HANDLE ASSEMBLY (RH) (RED)
(Superseded to 684-04112D)

$21.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 710-04329

SCREW .159 x .610

$4.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 710-0837

SCREW #10-16 x .625

$4.49

$

In Stock, Qty 5

0

11

Troy-Bilt 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

12

Troy-Bilt 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

13

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 725-04393

HEATED GRIP SWITCH

$16.99

$

Usually ships in 3-6 days

0

18

$78.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 925-06838

4-WAY ELEC/HEAT GRIP HARNESS

$193.99

$

In Stock, only 1 left!

0

20

$11.99

$

In Stock, Qty 11

0

21

Troy-Bilt 925-1649

HEADLIGHT SOCKET
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

22

$5.49

$

In Stock, Qty 9

0

23

Troy-Bilt 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 731-11147

JOYSTICK HOUSING COVER

$6.49

$

In Stock, Qty 10

0

25

Troy-Bilt 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

26

Troy-Bilt 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 10

0

28

Troy-Bilt 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

$20.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 790-00248D-0637

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

34

$27.99

$

In Stock, Qty 5

0
