3090 XP (31AH57R9711) - Troy-Bilt Vortex 30" Snow Thrower (2015) Auger & Housing Parts Diagram

Vortex 30" Snow Thrower

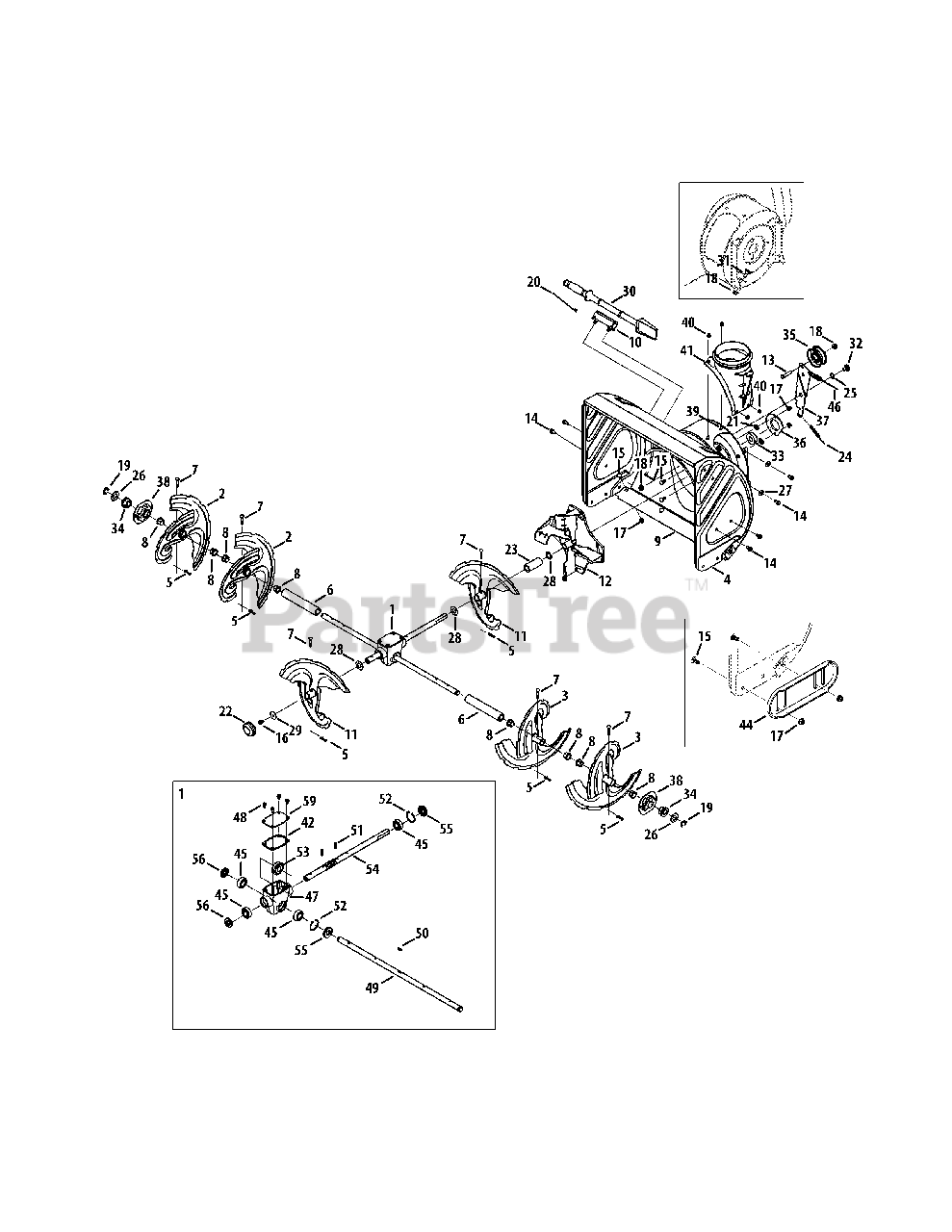

Auger & Housing Parts Diagram

  • Title

1

Troy-Bilt 918-06061

Gearbox Assembly, Auger, 30"

$403.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-05020-4033

Spiral Assembly - RH

$80.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-05021-4033

Spiral Assembly - LH
(Superseded to 684-05021-0637)

$89.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-05090-4033

Auger Housing, 30"

$355.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-09557

Spacer, 1.25 OD x .75 ID x 7.38

$9.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 741-0493A

Flange Bushing, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 790-00119-4033

Shave Plate, 30"
(Superseded to 790-00119-0637)

$39.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 731-11421

Clean-out Tool Mtg. Bracket

$11.99

$

In Stock, Qty 7

0

11

Troy-Bilt 684-05015B-0638

Accelerator Assembly
(Superseded to 684-05015C-0638)

$74.99

$

In Stock, Qty 11

0

12

Troy-Bilt 684-05030-4033

Impeller Assembly

$73.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

17

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 916-0231

E-ring, .75
(Superseded to 716-0231)

$

$

Not available

20

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 926-04012

Push-On Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

22

Troy-Bilt 731-08637A

Hubcap

$5.49

$

In Stock, Qty 19

0

23

Troy-Bilt 750-06274A

Spacer, 1.35 OD x .76 ID x 2.705

$18.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 732-04460

Extension Spring, .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0174

Wave Washer, .625 x .885 x .0175

$6.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

29

Troy-Bilt 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

30

Troy-Bilt 931-2643

Clean-Out Tool

$19.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 738-0143

Shoulder Screw, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 938-0281

Shoulder Screw, 3/8-16 x .625 x .17
(Superseded to 738-0281)

$

$

Not available

33

Troy-Bilt 941-0309

Flange Ball Bearing, .75 x 1.85

$74.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 741-05041

Hex Flange Bearing, .75 ID

$9.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

37

Troy-Bilt 790-00080C-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, only 4 left!

0

38

Troy-Bilt 790-00534-0637

Bearing Housing

$13.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 15

0

40

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 731-07525

Chute Adapter

$18.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 921-04614A

Gearbox Gasket

$5.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 783-08281

Gearbox Cover

$8.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 790-00091-4033

Deluxe Slide Shoe
(Superseded to 790-00091-0637)

$30.99

$

In Stock, Qty 7

0

45

Troy-Bilt 941-05042

Ball Bearing, .75 x 40 x 12

$11.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 946-04230A

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 919-05029

Auger Housing

$84.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 710-0642

Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 711-06127

Axle, Auger, 30"

$93.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 914-0161

Hi-Pro Key

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 715-04034

Pin, Roll, .25 x 1.0

$6.99

$

In Stock, only 3 left!

0

52

Troy-Bilt 716-05001

Retainer Ring

$3.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 917-04861

Worm Gear, 20T

$43.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 917-05112A

Worm Shaft

$103.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 721-04612

Seal, .75 x 40mm x .25

$5.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 721-04613

Seal, .75 x 1.375 x .25

$4.49

$

In Stock, Qty 9

0
