3090 XP (31AH55Q5711) - Troy-Bilt Storm 30" Snow Thrower (2010) Auger & Auger Housing Parts Diagram

Storm 30" Snow Thrower

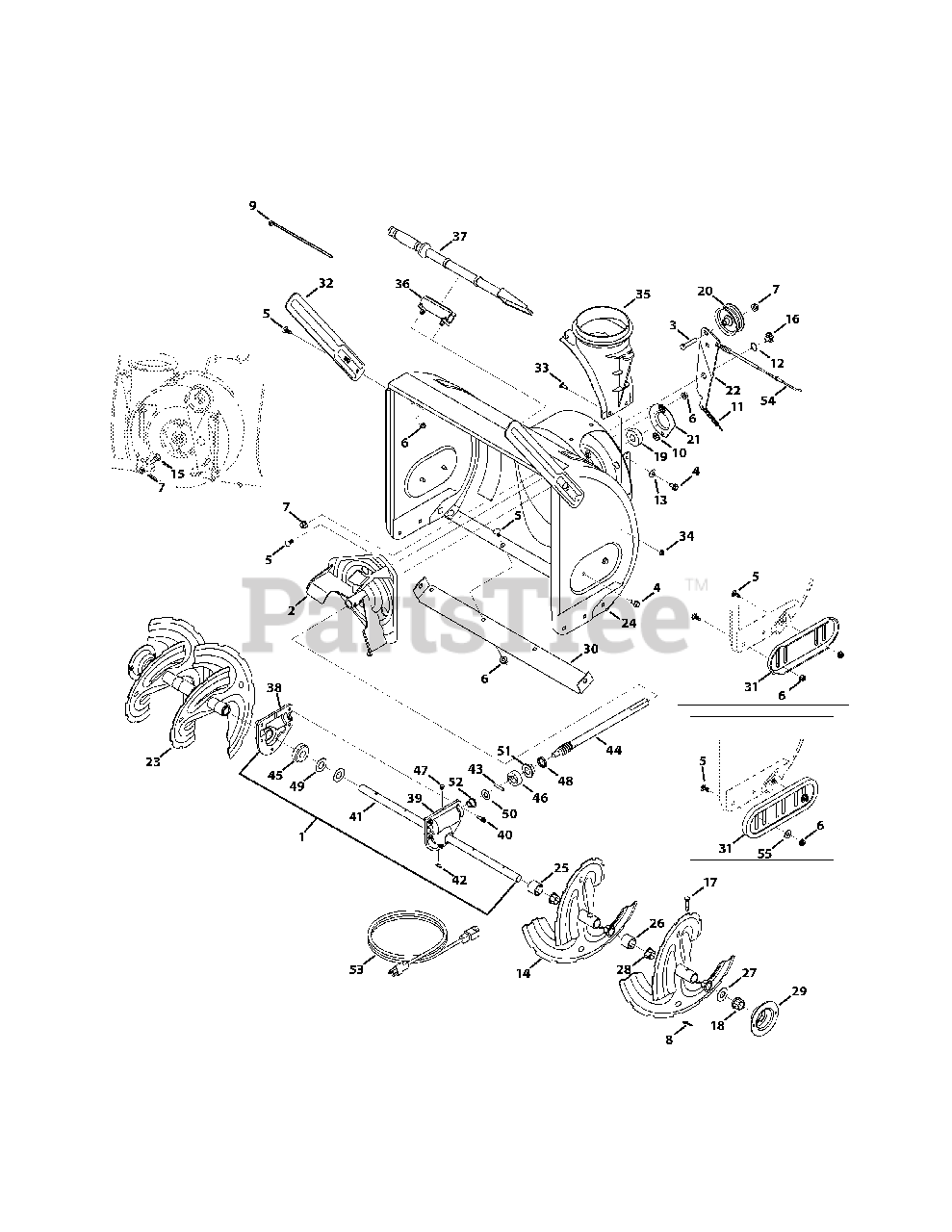

Auger & Auger Housing Parts Diagram

  • Title

1

Troy-Bilt 918-04165A

Auger Gearbox, includes 38-52
(Superseded to 918-04165B)

$447.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 684-04057A-0637

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0347

Hex Head Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0451

Bolt, Carriage, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

Nut, Flange lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04065

Nut, Flange lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 725-0157

Cable Tie, 7"

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 926-04012

Nut, Push-on, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

11

Troy-Bilt 732-04460

Extension Spring, .38 x 4.59

$5.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0174

Washer, Wave, .625 x .885

$6.99

$

In Stock, Qty 11

0

13

Troy-Bilt 736-0242

Washer, Bell, .340 x .872

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 684-04107-0637

Spiral Assembly, LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 738-0143

Bolt, Shoulder, .496 x .336 x 3/8-16

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 938-0281

Screw, Shoulder, .625 x .17 x 3/8-16
(Superseded to 738-0281)

$

$

Not available

17

Troy-Bilt 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 941-0245

Bearing, Hex Flange, .75

$9.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 941-0309

Bearing, Ball, .75 x 1.85

$74.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 756-04224

Pulley, Idler, Flat, 2.75

$26.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 790-00075

Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

22

Troy-Bilt 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, Qty 11

0

23

Troy-Bilt 684-04108-0637

Spiral Assembly, RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

24

Troy-Bilt 684-04273-4033

Auger Housing Assembly
(Superseded to 684-04273A-4033)

$310.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-04870

Spacer, 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 731-04871

Spacer, 1.25 x .75 x 2.00

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0188

Washer, Flat, .76 x 1.49

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 741-0493A

Bushing, Flange, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 790-00087A-0637

Bearing, 1" Hex

$22.99

$

In Stock, Qty 8

0

30

Troy-Bilt 790-00119-4033

Shave Plate, 2.25 x 29.66
(Superseded to 790-00119-0637)

$39.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 790-00091-4033

Deluxe Slide Shoe
(Superseded to 790-00091-0637)

$30.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 790-00181-0691

Blade Guide

$43.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-0703

Screw, Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 712-04064

Nut, Flange lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 731-07525

Chute Adapter

$18.99

$

In Stock, Qty 17

0

36

Troy-Bilt 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 931-2643

Clean-Out Tool

$19.99

$

In Stock, Qty 16

0

38

Troy-Bilt 918-0123A

Reducer, RH

$52.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 918-0124A

Reducer, LH

$52.99

$

In Stock, Qty 17

0

40

Troy-Bilt 710-0642

Screw, 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 711-04282

Auger Axle, 30"
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 914-0161

Key, Hi-Pro, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 715-04021

Dowel Pin, .25 x 1.25

$4.49

$

In Stock, Qty 15

0

44

Troy-Bilt 917-04126

Worm Shaft, .75

$79.99

$

In Stock, Qty 11

0

45

Troy-Bilt 917-0528A

Gear Worm, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 718-04071

Collar Thrust, .756 x .600

$7.99

$

In Stock, Qty 9

0

47

Troy-Bilt 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 721-0327

Oil Seal, .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 936-0351

Washer, Flat, .760 x 1.50
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 736-3084

Washer, Flat, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 741-0662

Bearing, Flange, .75 x 1.00 x .59

$10.99

$

In Stock, Qty 18

0

52

Troy-Bilt 741-0663

Bearing, Flange, .50 x .75 x .59

$9.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 929-0071A

Extension Cord, 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 746-04230

Auger Drive Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available
