3090 (31AH55R5711) - Troy-Bilt Storm 30" Snow Thrower (2015) Chute Control 4-Way (Electric) Parts Diagram

Storm 30" Snow Thrower

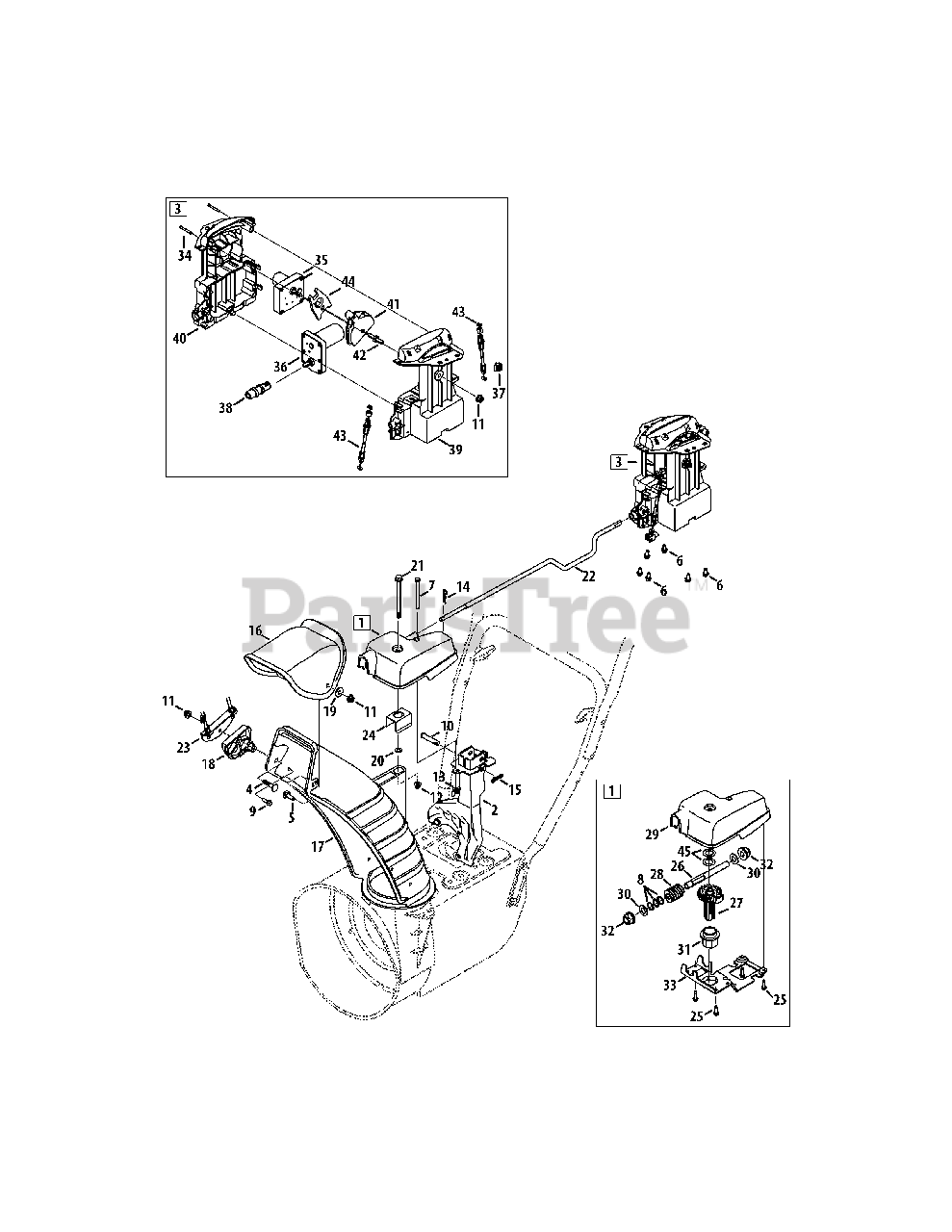

Chute Control 4-Way (Electric) Parts Diagram

  • Title

1

Troy-Bilt 918-04932B

Gearbox Assembly, Chute Rotation

$77.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 984-05051

Chute Assembly, 4-Way Elec.

$414.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-0262

Bolt, Carriage, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

5

Troy-Bilt 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 15

0

6

Troy-Bilt 710-04187A

Screw, HL, 1/4-15 x 0.50

$6.99

$

In Stock, Qty 7

0

7

Troy-Bilt 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 736-04202

Shim Washer, .504 x .700 x .010

$3.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0895

Screw, HL, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 5

0

10

Troy-Bilt 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

15

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-04427A

Chute, Upper
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 731-06440A

Chute, Lower

$51.99

$

In Stock, Qty 19

0

18

Troy-Bilt 731-06451

Cable Guide, Chute Tilt

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

20

Troy-Bilt 736-04446

Washer, Flat, .25 x .630

$4.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 747-05721

Chute Crank Rod

$28.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 790-00503

Chute Bracket

$6.49

$

In Stock, only 1 left!

0

25

Troy-Bilt 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

26

Troy-Bilt 911-05752

Hex Shaft

$8.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 917-04973A

Gear, 23 T

$14.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 917-05019

Worm

$6.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 731-07529A

Gear Cover

$18.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 741-04388A

Flange Bearing, 1.00 ID

$7.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 741-04453A

Flange Bearing, .50 ID

$4.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 790-00342C-0637

Gear Bracket

$28.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 710-04509

Screw, #10-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 724-04209

Chute Pitch Motor

$137.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 724-04210

Chute Rotation Motor

$180.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 731-07868

Cable Clip

$3.49

$

In Stock, only 2 left!

0

38

Troy-Bilt 731-08795

Electric Chute Coupler

$4.49

$

In Stock, only 2 left!

0

39

Troy-Bilt 731-08845A

Housing, LH

$22.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 731-08846

Housing, RH

$22.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 731-1313C

Cable Guide

$11.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 938-0849

Hex Screw, 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 946-04528B

4-Way Cable

$41.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 731-07868

Cable Clip

Note: (Not Shown)

$3.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 748-04297

Chute Pitch Adapter
(Superseded to 748-04297A)

$11.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 736-04337

Shim Washer, .632 x 1.00 x .010

$3.99

$

In Stock, Qty 15

0
