3090 (31AH55P5766) - Troy-Bilt Storm 30" Snow Thrower (2016) Auger Housing Parts Diagram

Storm 30" Snow Thrower

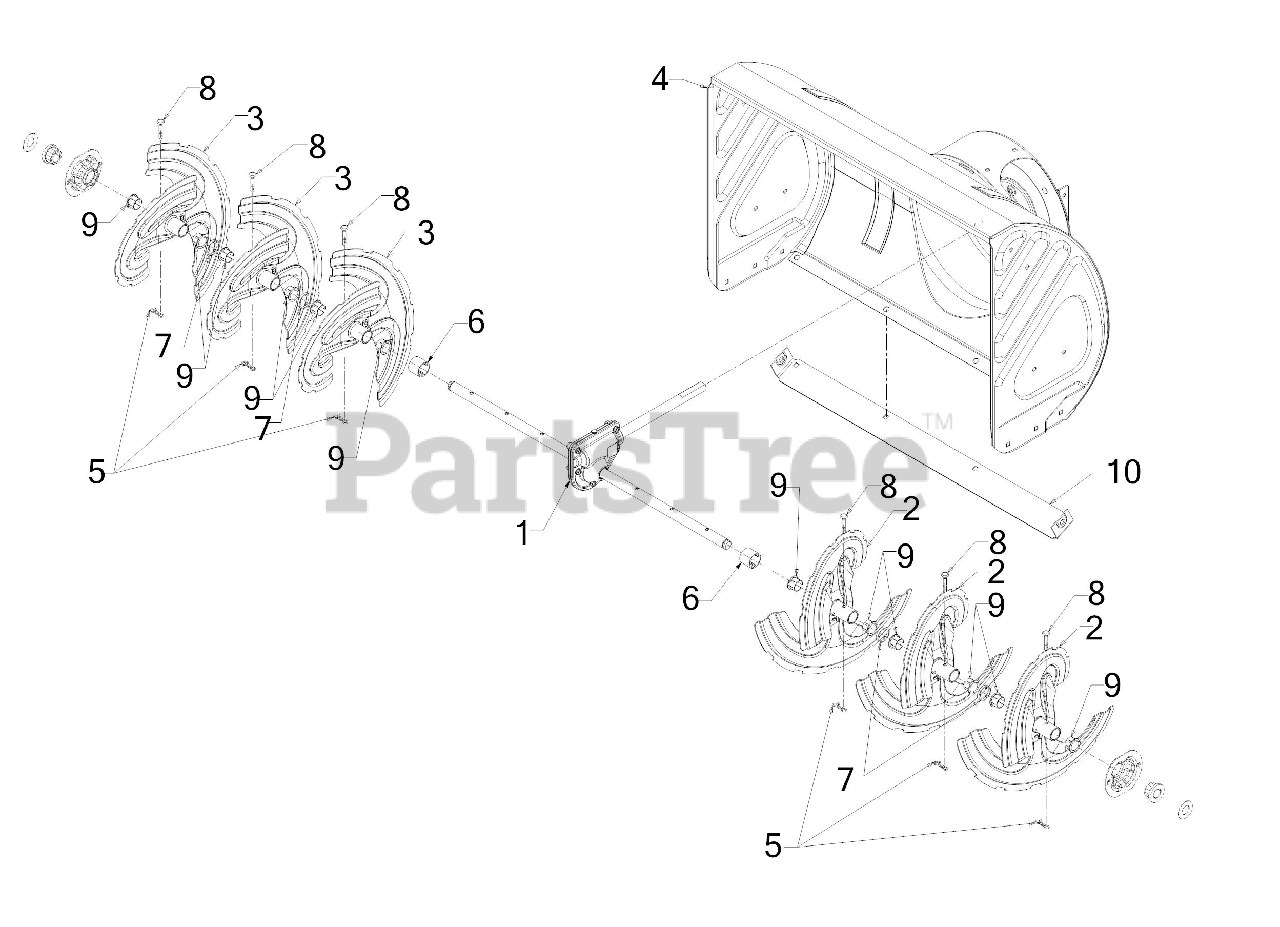

Auger Housing Parts Diagram

  • Title
1

Troy-Bilt 918-04165B

30" GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$447.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 684-04107A-0638

AUGER ASSEMBLY (LH)
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 684-04108A-0638

AUGER ASSEMBLY (RH)
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

4

Troy-Bilt 684-05210-0638

30" AUGER HOUSING
(Superseded to 684-05210A-0638)

$353.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 790-00119-0638

30" SHAVE PLATE
(Superseded to 790-00119-0637)

$39.99

$

In Stock, Qty 20+

0
