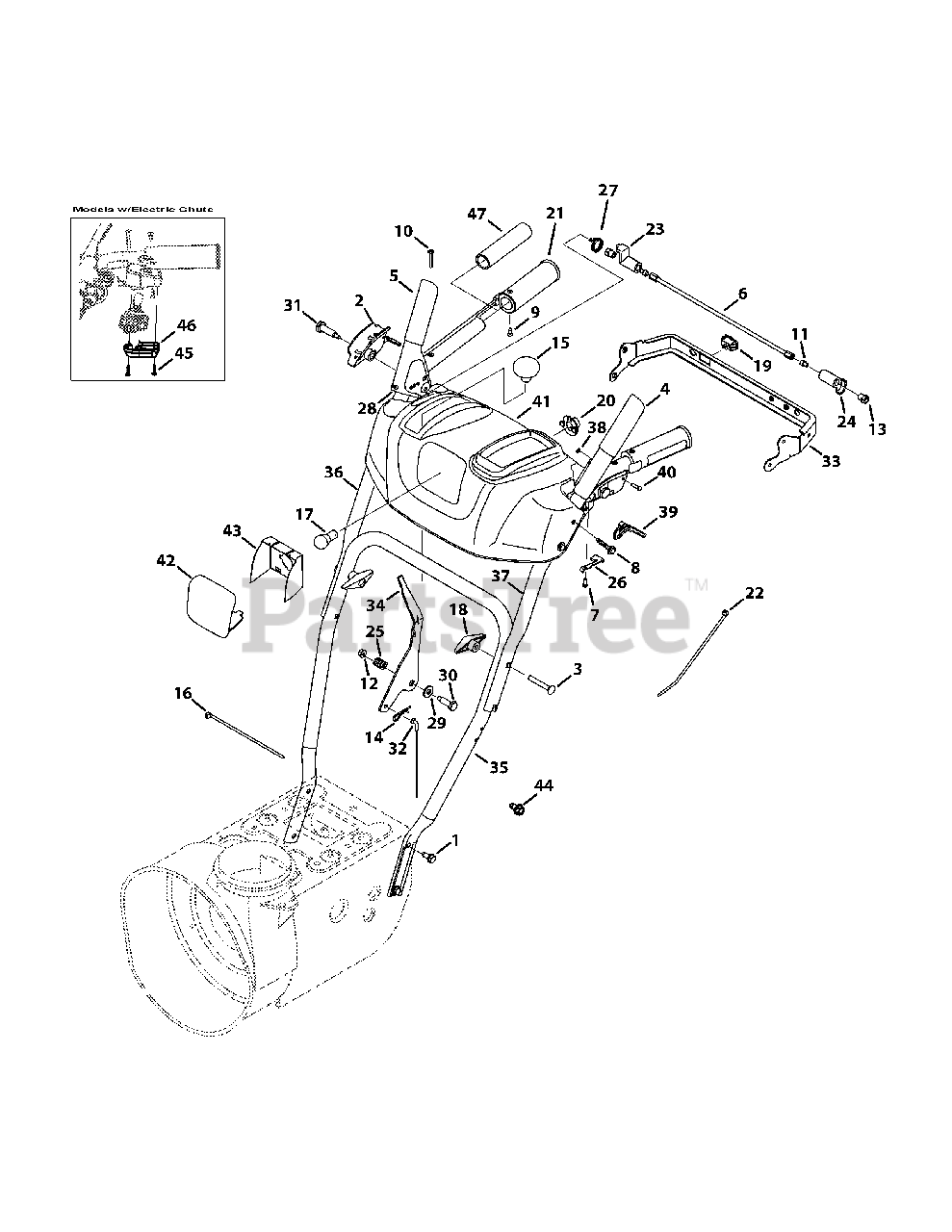

3090 (31AH55P5766) - Troy-Bilt Storm 30" Snow Thrower (2014) Handle & Frame Parts Diagram

Storm 30" Snow Thrower

Handle & Frame Parts Diagram

  • Title
1

Troy-Bilt 710-04484

Screw, Taptite, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 631-04134B

Clutch Lock, RH

$15.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 631-04133A

Clutch Lock, LH

$15.99

$

In Stock, Qty 7

0

3

Troy-Bilt 710-0572

Screw, Carriage, 5/16-18 x 2.50

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 684-04105B

Auger Engage, Black, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 684-04106C

Drive Engage, Black, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

6

$12.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-04326

Screw, Plastite, 8-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 710-04586

Screw, Taptite, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0837

Screw, 10-16 x 0.625

$4.49

$

In Stock, Qty 5

0

10

Troy-Bilt 710-1233

Screw, 10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

Troy-Bilt 710-3069

Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

12

Troy-Bilt 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04081A

Nut, Hex, 1/4-20

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 725-0157

Cable Tie, 7"

$3.99

$

In Stock, Qty 20+

0

$11.99

$

In Stock, Qty 10

0

18

Troy-Bilt 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$

$

Not available

19

Troy-Bilt 725-04393

Heated Grip Switch

Note: If Equipped

$16.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 925-06107

Heated Grip

Note: If Equipped

$78.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 926-0154

Cable Tie, Push Mount

$6.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-04894D

Plate, Lock

$5.49

$

In Stock, Qty 9

0

24

Troy-Bilt 731-04896B

Cam, Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-0193

Compression Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

26

Troy-Bilt 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 732-04238B

Torsion Spring, 0.8156 x .3038

$5.49

$

In Stock, Qty 10

0

28

Troy-Bilt 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 936-0267

Washer, Flat, .385 x .87
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-04125

Screw, Shield, .374 x 1.05

$4.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 738-04348

Screw, Shoulder, .437 x 1.345 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 946-04396A

Speed Selector Cable

$20.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

34

$27.99

$

In Stock, Qty 5

0

35

Troy-Bilt 749-04138B-0638

Lower Handle
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 749-04190A-0638

Upper RH Handle
(Superseded to 749-04190A-0637)

$45.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 749-04191A-0638

Upper LH Handle
(Superseded to 749-04191A-0637)

$45.99

$

Usually ships in 3-6 days

0

$6.49

$

In Stock, Qty 19

0

39

Troy-Bilt 731-04913

Steering Trigger Control, Black

$5.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 738-04126

Steering Trigger Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 931-04181A

Handle Panel

$59.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 731-05319

Lens Panel

$13.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 777X41805

Lens Label

$9.49

$

In Stock, only 4 left!

0

44

Troy-Bilt 710-0599

Screw, TT, 1/4-20 x .500 (For ground wire)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-04329

Screw, .159 OD x .610

Note: If Equipped

$4.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 731-08876

Housing Cover (Elec Chute)

Note: If Equipped

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 720-0274

Grip, 1.0 ID x 5.0 LG

$11.99

$

In Stock, Qty 8

0

Troy-Bilt 725-05148

Heated Grips Harness

Note: (If Equipped, not shown)

$69.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-08263

Harness, Elec. Chute

Note: (If Equipped, not shown)

$

$

Not available
