3081S (87991) - Snapper 30" Rear-Engine Riding Mower, 8hp Inboard Fuel Tank - Operator's Seat Parts Diagram

30" Rear-Engine Riding Mower, 8hp

Inboard Fuel Tank - Operator's Seat Parts Diagram

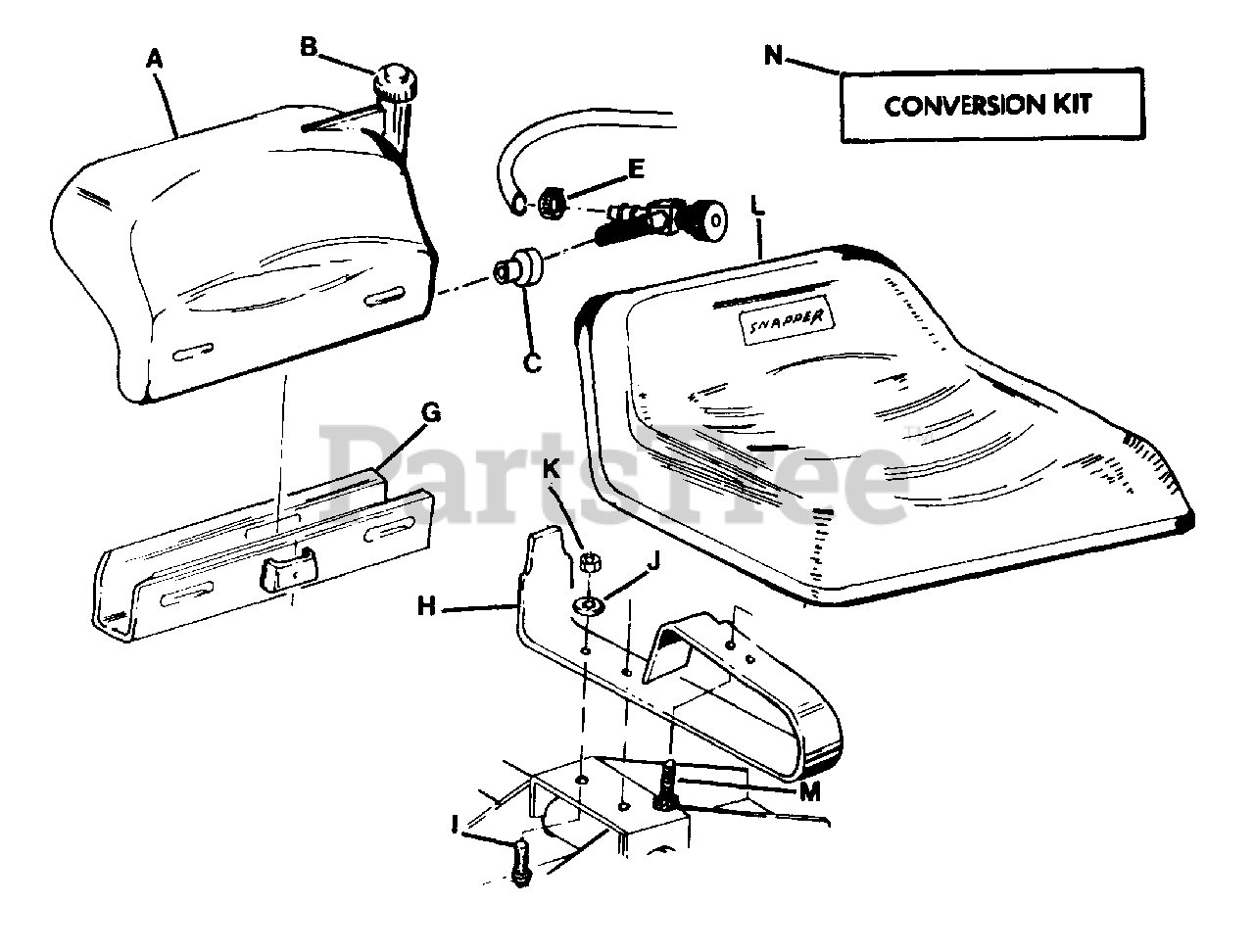

  • Title

A

Snapper 7057243

TANK, FUEL
(Superseded to 7057243YP)

Note: (INCLUDES - ITEM B, C, D)

$186.99

$

In Stock, only 1 left!

0

B

Snapper 7012515

CAP, GAS TANK FILLER
(Superseded to 7012515YP)

Note: (WITH VENT)

$19.99

$

In Stock, only 3 left!

0

C

Snapper 7012337

GROMMET, FUEL VALVE
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

?D

Snapper 7012503

VALVE, FUEL SHUT-OFF
(Superseded to 7012503YP)

$19.99

$

In Stock, only 1 left!

0

E

Snapper 7029900

CLAMP, FUEL LINE
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

?F

HOSE, FUEL

Note: (USE 1/4" I.D.X 1/2 O.D. APPROVED)

$

$

Not available

G

Snapper 7039607

BRACKET, FUEL TANK
(Superseded to 7039607YP)

$51.99

$

Usually ships in 2-12 days

0

H

Snapper 7038333

SPRING, OPERATORS SEAT
(Superseded to 7038333YP)

Note: Was 37750

$74.99

$

In Stock, only 1 left!

0

I

Snapper 7091304

SCREW, HEX HEAD CAP 3/8-16 x 1
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

J

Snapper 7090390

WASHER, 3/8 INTERNAL TOOTH LOCK
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

K

Snapper 7091302

NUT, 3/8-16 HEX
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

L

Snapper 7019978

SEAT, OPERATOR'S
(Superseded to 7019978YP)

Note: Was 19519

$243.99

$

Usually ships in 2-12 days

0

M

Snapper 7090680

SCREW, GRADE 5 CAP 1/2-13 x 7/8

Note: Was 90573

$3.49

$

In Stock, only 4 left!

0

N

Snapper 7060341

KIT, GAS TANK
(Superseded to 7060341YP)

Note: (CONVERTS SIDE MOUNT TO INBOARD)

$199.99

$

Usually ships in 2-12 days

0
