308 - Husqvarna Automower Robotic Lawn Mower (Original) COVER Parts Diagram

Automower Robotic Lawn Mower

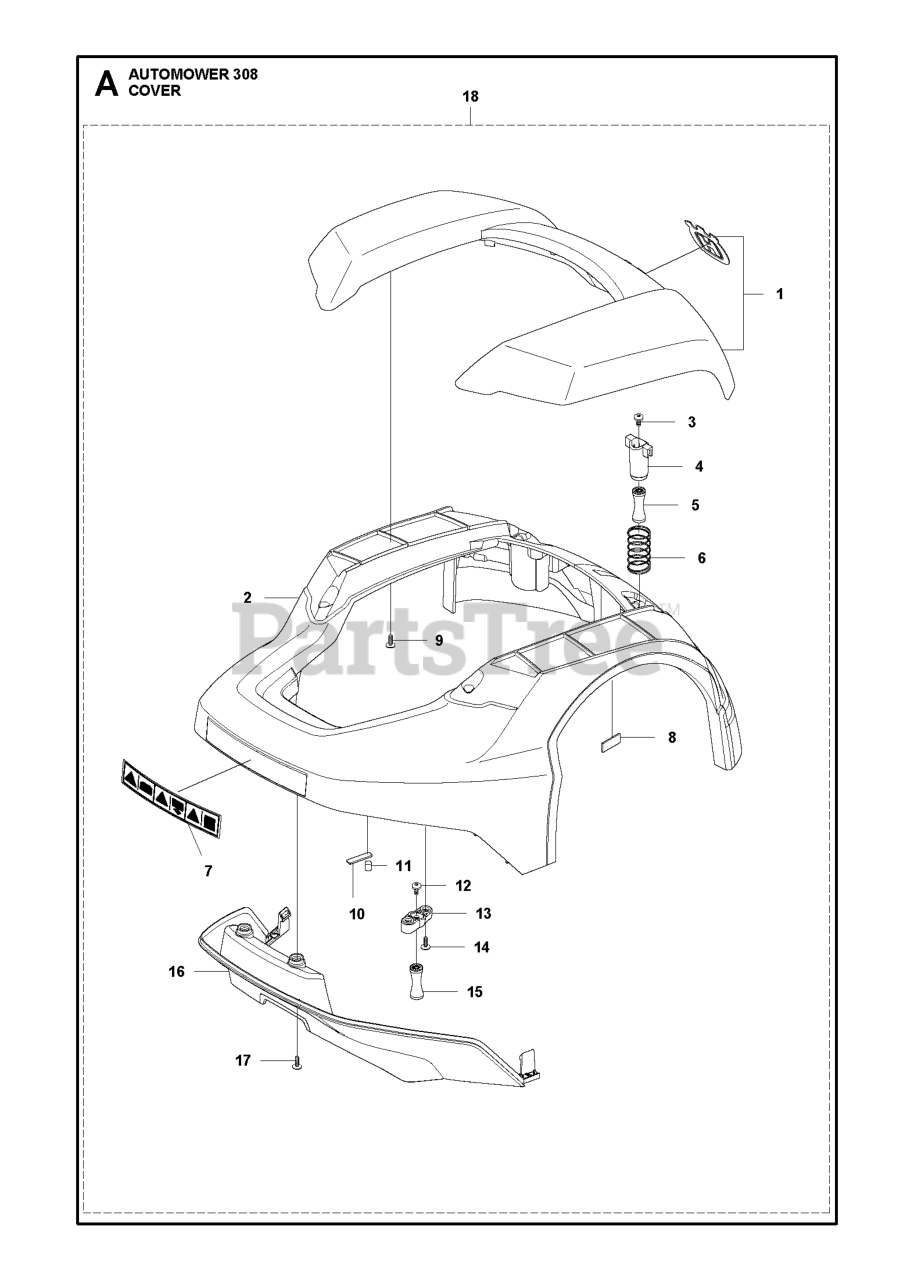

COVER Parts Diagram

  • Title

1

Husqvarna 577734702

Note: For 2014 & 2015 models

$

$

Currently unavailable

1

Husqvarna 577734701

Note: For 2013 models

$

$

Currently unavailable

2

Husqvarna 577747202

$

$

Currently unavailable

3

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

Note: M5x12

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 574469002

BRACKET COLUMN FRONT USE WITH

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 574469102

DAMPER RUBBER 40 SHORE

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574485102

SPRING LIFT SENSOR L = 35 MM

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576240001

$

$

Currently unavailable

8

Husqvarna 576183201

MAGNET LIFT SENSOR
(Superseded to 576183202)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 576030101

PLATE CARRIER MAGNET

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576183301

MAGNET COLLISION SENSOR

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

Note: M5x12

$2.49

$

Usually ships in 3-10 days

0

13

Husqvarna 575416002

SUPPORT CLAMP USE WITH M5 X 1

$9.99

$

Usually ships in 3-10 days

0

14

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

15

Husqvarna 574469102

DAMPER RUBBER 40 SHORE

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574465201

$

$

Currently unavailable

17

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 577955302

Note: Grey

$

$

Currently unavailable
