308 - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

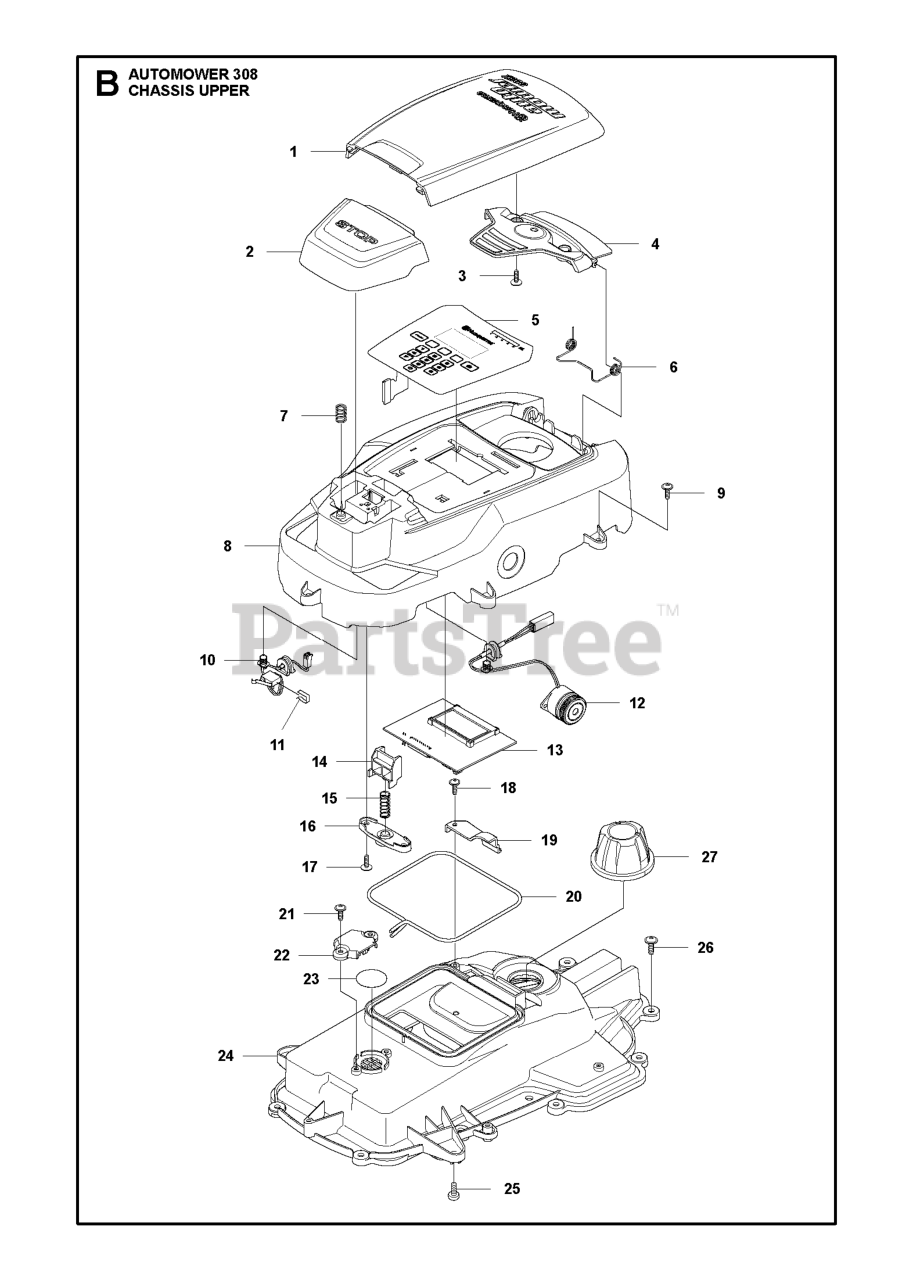

CHASSIS UPPER Parts Diagram

  • Title
1

Husqvarna 588797603

NEEDS DESCRIPTION

Note: Grey

$

$

Currently unavailable

$

$

Currently unavailable

3

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

7

Husqvarna 574487001

SPRING STOP BUTTON

$4.99

$

In Stock, only 1 left!

0

$

$

Currently unavailable

9

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 574480301

SWITCH STOP BUTTON

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535089801

CLIP RETAINER

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 574475901

BUZZER DISPLAY COVER

$34.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

14

Husqvarna 575409001

LOCK STOP BUTTON

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 576242201

SPRING LOCK STOP BUTTON

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 575415801

SPRING HOLDER STOP BUTTON

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

19

Husqvarna 576053901

COVER HEIGHT INDICATOR

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 574874704

SEALING STRIP P1

Note: Ø4mm

$48.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 17

0

22

Husqvarna 576697001

COVER AIR FILTER

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: 10 pcs

$51.99

$

Usually ships in 3-10 days

0

24

Husqvarna 577752902

KIT CHASSIS UPPER KIT INCL. SE

$62.99

$

Usually ships in 3-10 days

0

25

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

$2.49

$

Usually ships in 3-10 days

0

26

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579742401

Note: kit incl. label

$

$

Currently unavailable
