30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) STARTER-ONAN P220G TYPE I/10808D Parts Diagram

Groundsmaster Rear-Engine Riding Mower

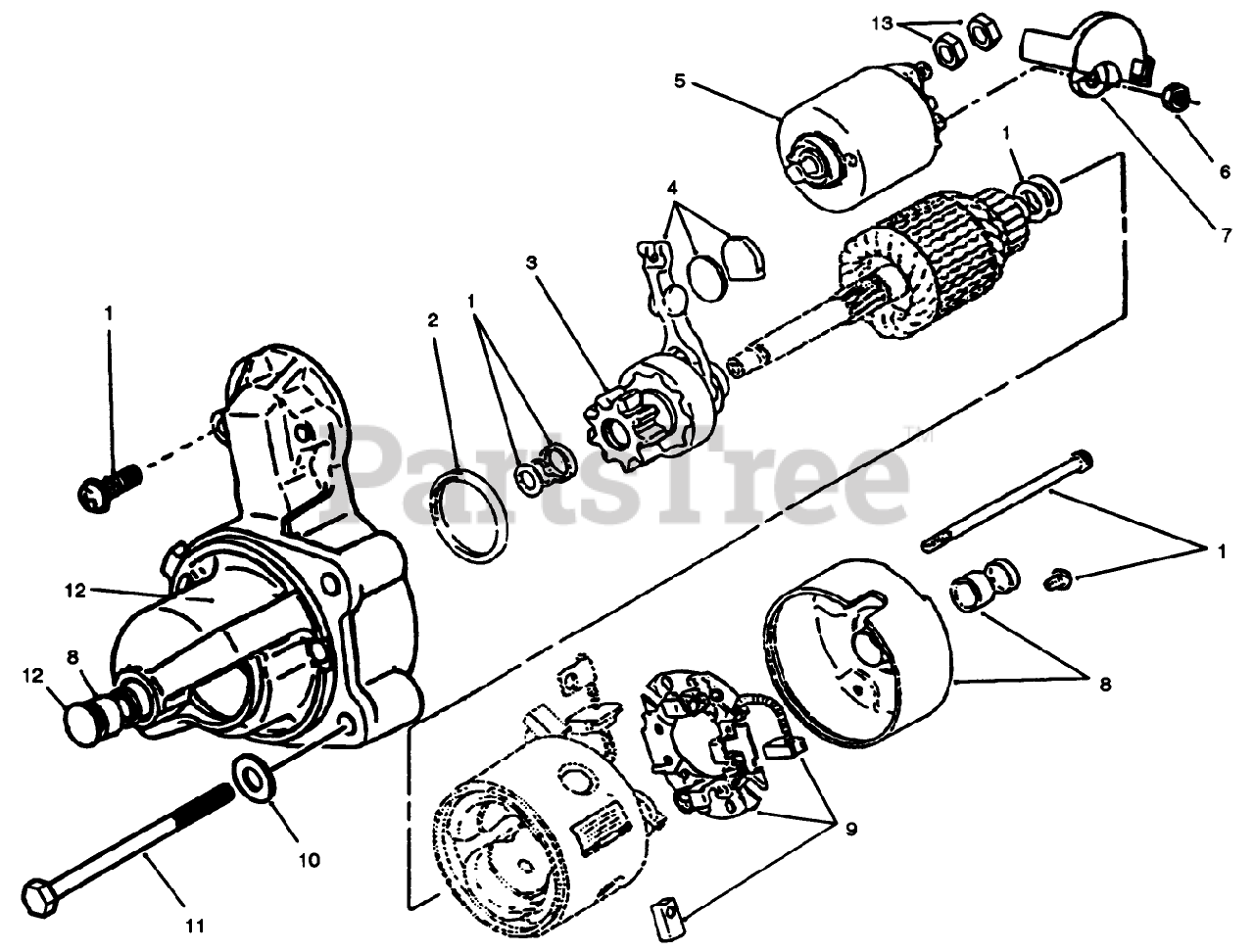

STARTER-ONAN P220G TYPE I/10808D Parts Diagram

  • Title
1

$

$

Not available

2

Toro 72-3950

Dust Seal
(Superseded to NN10886)

$

$

Not available

3

Toro 72-3940

CLUTCH STARTER ASSEMBLY

$

$

Not available

4

Toro 62-2770

LEVER

$

$

Not available

5

Toro 72-3930

STARTER SOLENOID KIT

$

$

Not available

6

Toro 82-1730

Nut-Hex.
(Superseded to 92-5935)

$

$

Not available

7

Toro 82-1720

COVER-SOLENOID STARTER

$

$

Not available

8

Toro 62-2730

BUSHING

$

$

Not available

9

Toro 62-2740

BRUSH KIT

$

$

Not available

10

Toro 57-9770

WASHER

$

$

Not available

11

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

12

Toro 62-2750

Brush Mounting Kit
(Superseded to 62-2740)

$

$

Not available

13

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

Toro 71-6040

Starter Assembly (Incl. Ref. #1-10 & 13)
(Superseded to 112-7023)

Note: Not illustrated

$441.99

$

Usually ships in 3-6 days

0
