30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) SEAT MOUNT & AIR CLEANER ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

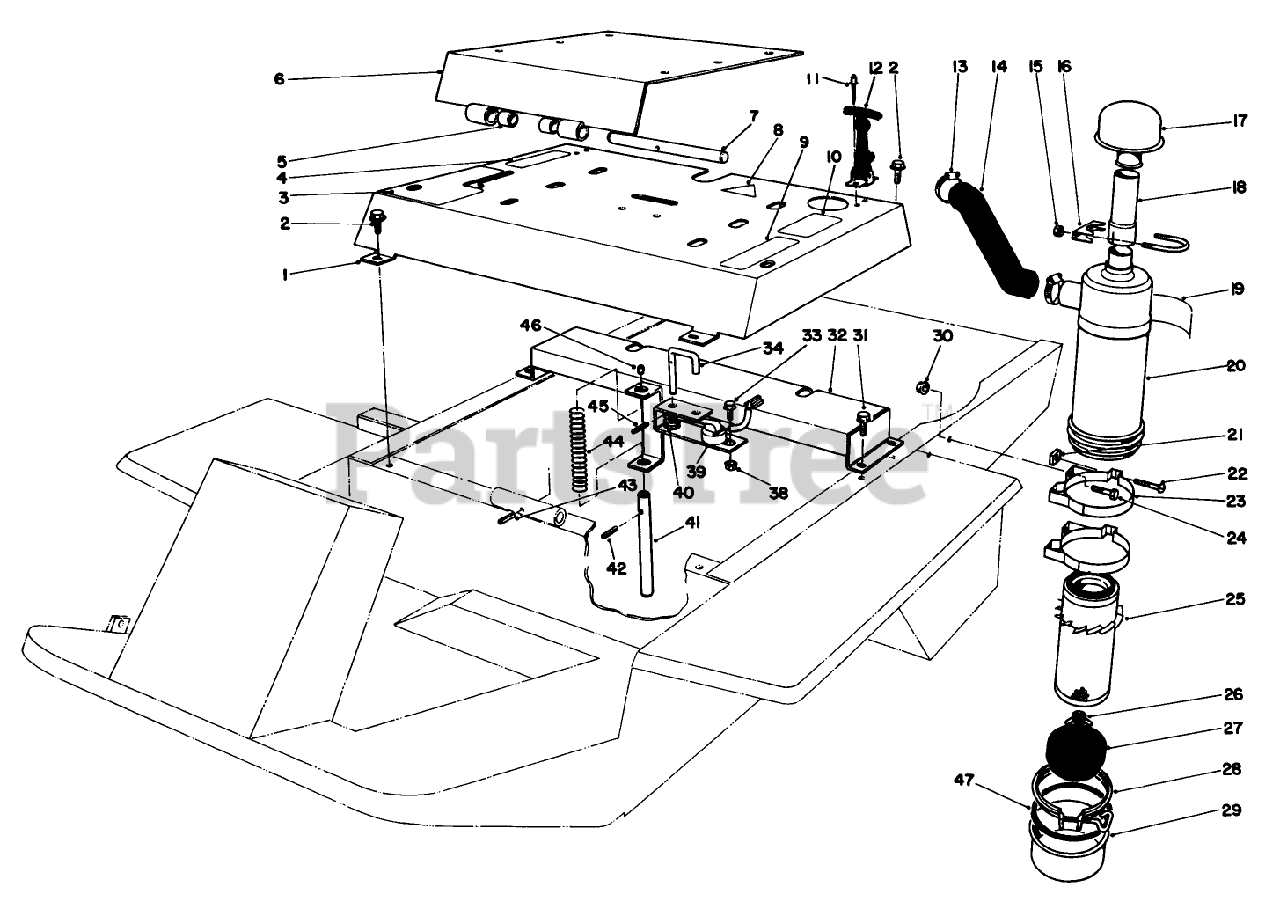

SEAT MOUNT & AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8140

Cover-Seat Support (Incl. Ref. #4, 5, 9 & 10)
(Superseded to 61-8140-01)

$336.99

$

Usually ships in 3-6 days

0

2

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

3

Toro 68-7320

DECAL - LIFT CONTROL

$

$

Not available

4

Toro 67-1710

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

5

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

6

Toro 38-4020

Mounting-Seat (Incl. Ref. #5)

$

$

Not available

7

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

8

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

9

Toro 68-7330

DECAL - CAUTION

$

$

Not available

10

Toro 27-7310

DECAL-REFUELING

$34.99

$

Usually ships in 3-6 days

0

11

Toro 3269-16

RIVET

$0.99

$

Usually ships in 3-6 days

0

12

Toro 249-39

Assembly-Handle
(Superseded to 59-9740)

$37.99

$

Usually ships in 3-6 days

0

13

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

14

Toro 44-9050

HOSE

$91.99

$

Usually ships in 3-6 days

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

16

Toro 20-4840

CLAMP-MUFFLER

$18.99

$

Usually ships in 3-6 days

0

17

Toro 27-7180

CAP

$74.99

$

Usually ships in 3-6 days

0

18

Toro 44-8950

Tube-Air Cleaner
(Superseded to 44-8950-03)

$

$

Not available

19

Toro 27-7160

DECAL-INSTALLATION

$

$

Not available

20

Toro 27-7100

Assembly-Air Cleaner (Incl. Ref. #18 & 24-28)

$451.99

$

Usually ships in 3-6 days

0

21

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

23

Toro 27-7170

Assembly-Mounting, Band (Incl. Ref. #20 & 21)

$

$

Not available

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 27-7110

ELEMENT ASM
(Superseded to 108-3833)

$29.99

$

In Stock, only 1 left!

0

26

Toro 27-7120

NUT AND GASKET ASM

$

$

Not available

27

Toro 27-7140

SKIRT-BAFFLE

$110.99

$

Usually ships in 3-6 days

0

28

Toro 27-7130

CLAMP ASM

$52.99

$

Usually ships in 3-6 days

0

29

Toro 27-7150

A/C CUP ASM

$95.99

$

Usually ships in 3-6 days

0

30

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

32

Toro 37-9770

Seat Support
(Superseded to 37-9770-01)

$

$

Not available

33

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

34

Toro 38-3170

SEAT SWITCH PIN

$

$

Not available

35

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

39

Toro 29-6930

SWITCH ARM

$

$

Not available

40

Toro 3-6685

SPRING

$10.99

$

Usually ships in 3-6 days

0

41

Toro 27-9870

PIN-SWITCH, SEAT

$39.99

$

Usually ships in 3-6 days

0

42

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

43

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

44

Toro 37-9590

SPRING-COMP

$

$

Not available

45

Toro 32121-18

PIN-ROLL, SLOT

$0.99

$

Usually ships in 3-6 days

0

46

Toro 28-6180

PIN-PEDAL

$6.99

$

Usually ships in 3-6 days

0

47

Toro 80-3330

GASKET

$20.99

$

Usually ships in 3-6 days

0
