30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) HYDRAULIC CYLINDER NO. 68-9700 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

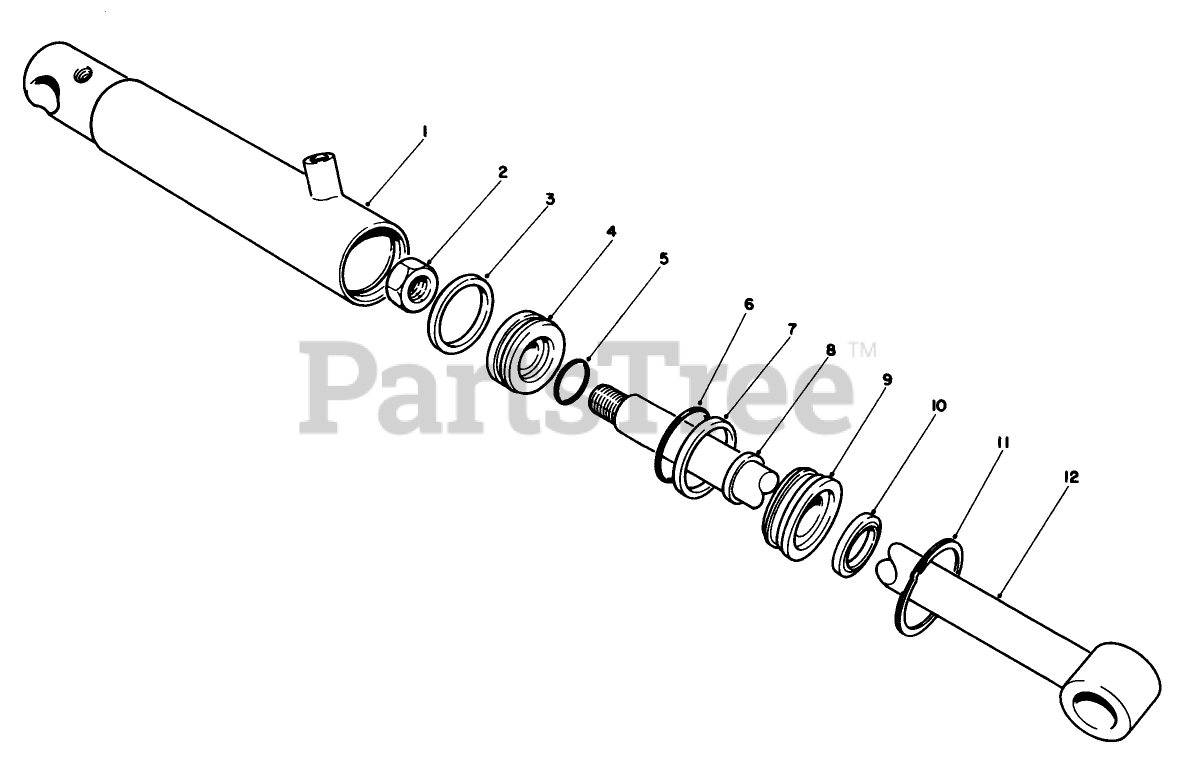

HYDRAULIC CYLINDER NO. 68-9700 Parts Diagram

  • Title
1

Assembly-Tube

$

$

Not available

2

Toro 32152-10

LOCKNUT

$1.49

$

Usually ships in 3-6 days

0

4

Toro 70-2780

PISTON

$

$

Not available

6

O-Ring, Head

$

$

Not available

8

Poly-Pack

$

$

Not available

9

$

$

Not available

11

Toro 43-5220

RING-RETAINING

$85.99

$

Usually ships in 3-6 days

0

12

Toro 43-5230

SHAFT W/CLEVIS

$

$

Not available

Toro 70-2790

Kit-Seal Repair (Incl. Ref. #3, 5-8 & 10)
(Superseded to 86-5360)

Note: Not illustrated

$64.99

$

Usually ships in 3-6 days

0
