30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) AIR CLEANER & CHOKE-ONAN P220G TYPE I/10808D Parts Diagram

Groundsmaster Rear-Engine Riding Mower

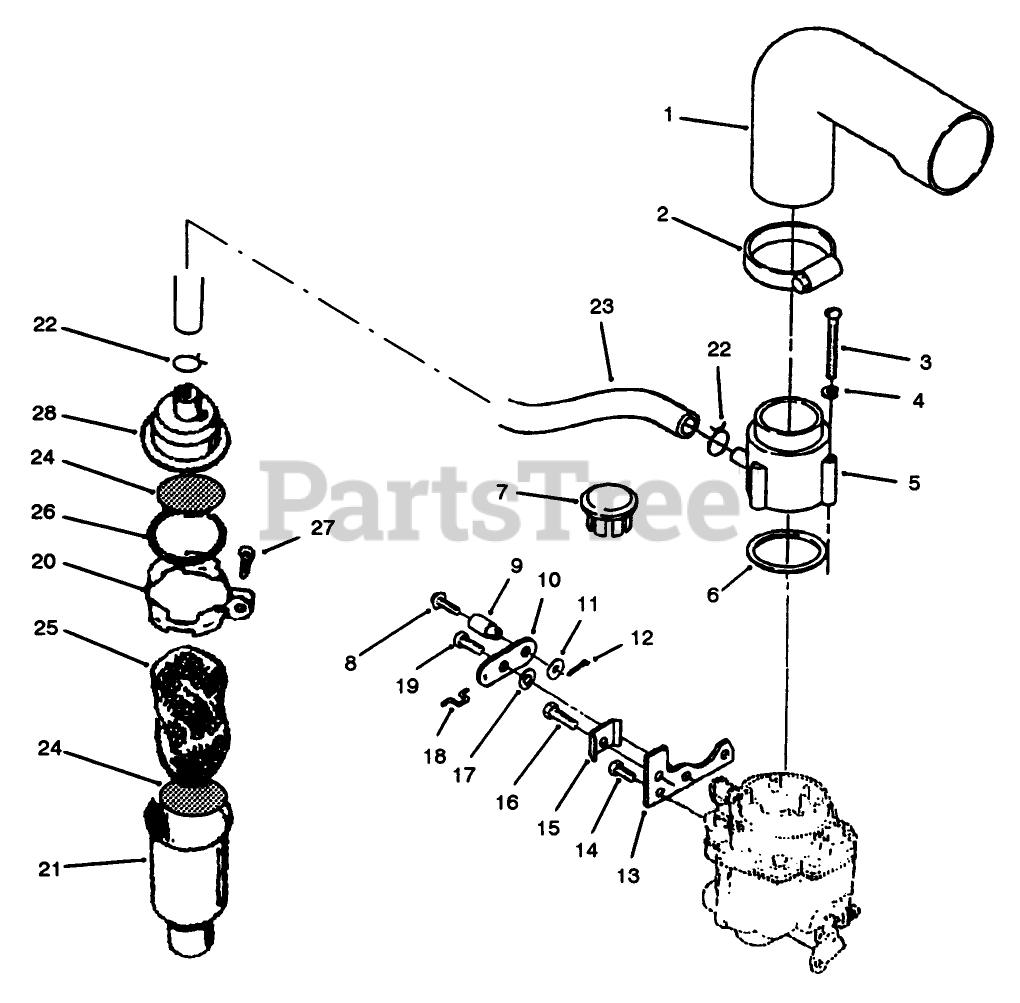

AIR CLEANER & CHOKE-ONAN P220G TYPE I/10808D Parts Diagram

  • Title

1

Toro 57-8800

INLET ASM

$80.99

$

Usually ships in 3-6 days

0

2

Toro 59-0690

HOSE CLAMP

$

$

Not available

3

Toro 59-0940

RD HD MACH SCREW

$

$

Not available

4

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 57-8720

ADAPTER

$278.99

$

Usually ships in 3-6 days

0

6

Toro 57-9620

SEAL

$

$

Not available

7

Toro 71-6210

PLUG, HOLE

$

$

Not available

8

Toro 72-3890

SCREW

$

$

Not available

9

Toro 57-9170

SWIVEL

$

$

Not available

10

Toro 59-0460

SWIVEL-CHOKE

$

$

Not available

11

Toro 59-0580

WIRE CLAMP

$

$

Not available

12

Toro 59-0720

PIN-COTTER

$

$

Not available

13

Toro 59-0470

BRACKET

$

$

Not available

14

Toro 72-3880

SCREW-HWH

$

$

Not available

15

Toro 57-9190

CLIP

$

$

Not available

16

Toro 72-3900

SCREW-TAPPING

$

$

Not available

17

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

18

Toro 57-9180

LINK-CHOKE

$

$

Not available

19

Toro 59-1020

BOLT-SHOULDER

$

$

Not available

20

Toro 82-0530

Clamp

$

$

Not available

21

Toro 82-0540

TUBE-BREATHER

$

$

Not available

22

Toro 57-9540

CLAMP

$

$

Not available

23

Toro 71-6130

BREATHER HOSE

$

$

Not available

24

Toro 82-0560

SCREEN-BREATHER TUBE

$

$

Not available

25

Toro 57-8580

FILTER

$6.99

$

Usually ships in 3-6 days

0

26

Toro 82-0570

SEAL - O-RING

$7.49

$

Usually ships in 3-6 days

0

27

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

28

Toro 82-0550

BREATHER-CAP AND VALVE

$

$

Not available
