30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) 62" CUTTING UNIT MODEL 30564 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

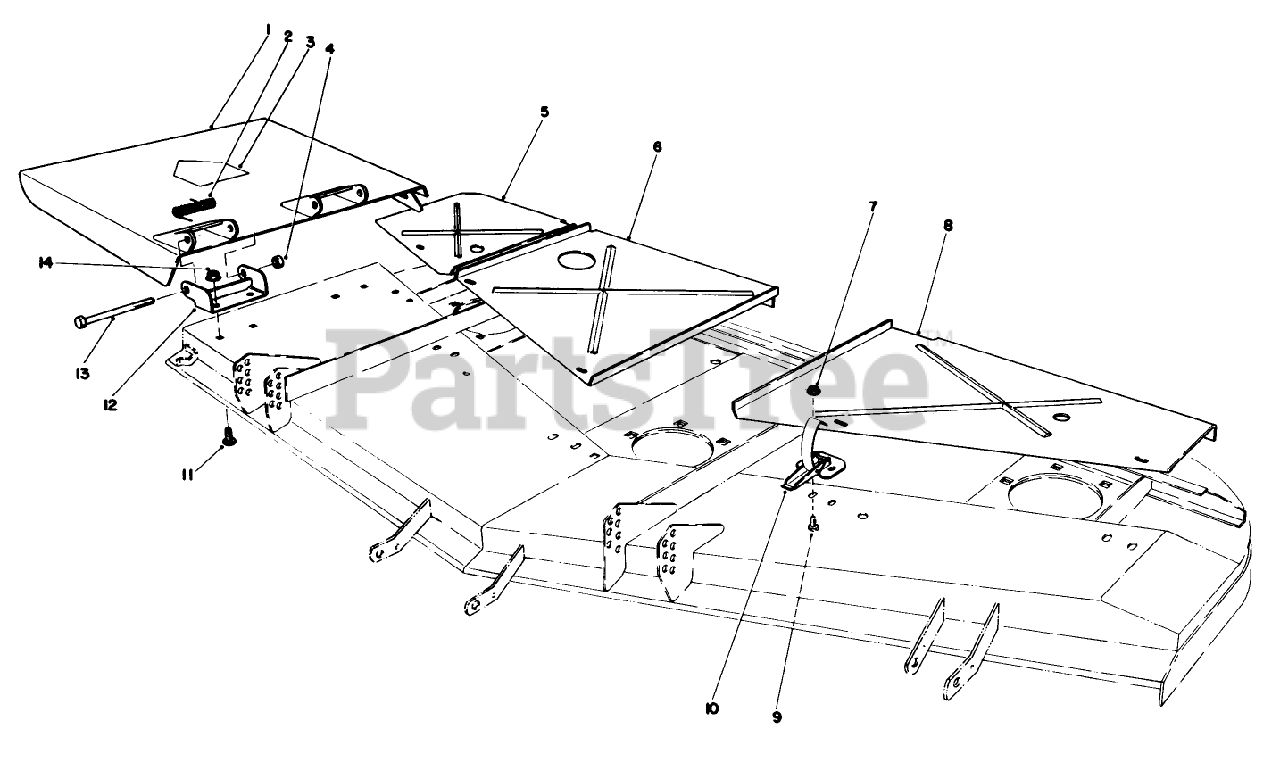

62" CUTTING UNIT MODEL 30564 Parts Diagram

  • Title

1

Toro 14-0909

Deflector Assembly (Incl. Ref. #3)

$383.99

$

Usually ships in 3-6 days

0

2

Toro 51-1550

SPRING

$12.99

$

In Stock, only 2 left!

0

3

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

4

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

5

Toro 63-9830

Cover-Deck R.H.
(Superseded to 63-9830-01)

$

$

Not available

6

Toro 72-9320

Cover-Deck Center
(Superseded to 72-9320-01)

$172.99

$

Usually ships in 3-6 days

0

7

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

8

Toro 44-6290

Cover-Deck L.H.
(Superseded to 44-6290-01)

$

$

Not available

9

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 249-21

CLAMP-SLOTTED

$19.99

$

Usually ships in 3-6 days

0

11

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

12

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$38.99

$

Usually ships in 3-6 days

0

13

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 4 left!

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
